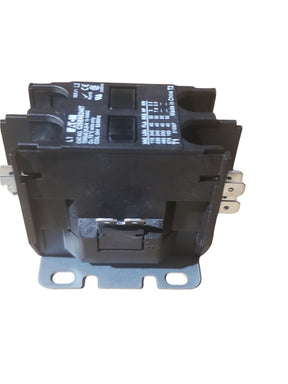

Eaton - Cutler Hammer - Definite Purpose Contactor C25BNB240T

$4.99 $35.99
Shipping calculated at checkout.

Description

Eaton - Cutler Hammer C25BNB240T

Mfr. Part #: C25BNB240T

2-Pole Definite Purpose Contactor (24V, 40 Amp)

PRODUCT DISCLOSURE:

All products were acquired by Freeman Liquidators from a sale of merchandise subject to a commercial insurance loss. Freeman Liquidators is a secondary seller of products, is not affiliated with or sponsored by the manufacturer of the products and is not a manufacturer authorized seller of the products. Sale of this product by Freeman Liquidators is not subject to the policies of the manufacturer. Any warranty offered by the manufacturer is not available to you as the purchaser. All products are NEVER USED but external packaging will have damage. Some items may be placed into other packaging to ensure safe shipping. All items are opened for inspection prior to shipment to ensure the best quality of products. Freeman Liquidators guarantees your satisfaction. If you are not completely satisfied with a purchased product, within 30 days from the date of purchase, return the product in its packaging and Freeman Liquidators will fully refund your money.

Product Specifications

Product Attribute Attribute Value Search
Alternate Mfr Part Number F1C25BNB240T
Approvals CSA Certified;UL Recognized
Coil Power 24 Vac, 50/60 Hz
Connection Quick
Contact Current Rating 40A A
Control Voltage 24 VAC
Enclosure Rating Open with metal mounting plate
Height 1.97 Inch
Horsepower, Motor, Max at 115 V 3
Horsepower, Motor, Max at 230 V 7.5
Length 3.19 Inch
Maximum Operating Temperature 70 C
Minimum Operating Temperature -25 C
Mounting Type Panel Mounted
Number of Poles 2
Series C25BN Series
Terminals Binding head screw and quick connect terminals (side-by-side)
Type Contactor
UPC Code 786685116105
Weight .7 Pound
Width 2.32 Inch

Overview

Cutler-Hammer 25-40 A, single- and double-pole, Type C25 contactors from Eaton's electrical business feature a compact, efficient design with a low VA coil and straight-through wiring. New contactor housing design effectively limits dust and other contaminants from entering the magnet structure which reduces or eliminates noise. These economically priced, UL recognized/ CSA certified, ampere rated devices are well suited for use in heating/air conditioning, refrigeration, data processing and food service applications.

Features:
  • Insulation Voltage: 690 V
  • Current Rated and HP/kW Rated
  • Contacts: Double Break
  • Magnet Coil: Class F, 155°C
  • Contact Arc Covers Are Standard on All Contactors
  • Standard Power Terminals 5⁄16" Hex Washer Head Screws and Quad (4) Quick Connect Terminals on Each Line and Load Terminations
  • Contactors are Marked with Line and Load Terminal Designations
  • Operating Temperature Range: –13 to 158°F (–25 to +70°C)
  • Terminal Wire Range — Hex Washer Head Screws: 16-10 AWG, 30 Lb.-In. Torque Rating
  • Mounting Position: Vertical, Horizontal or Tabletop
  • UL Recognized, CSA Certified, IEC 60947-4-1, EN 60947-4-1, ARI 780/790 Standard, RoHs Compliance
