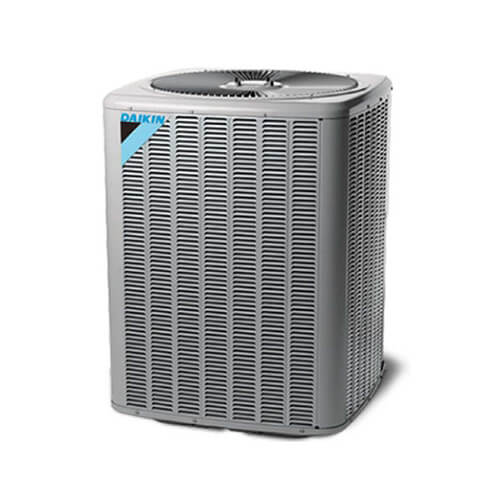

DAIKIN A/C 3 TON 13 SEER 3 PH 410A DX13SA0363A
Freight Request
DAIKIN A/C 3 TON 13 SEER 3 PH 410A DX13SA0363A
Description
Description
DAIKEN A/C 3 TON 13 SEER 3 PH 410A DX13SA0363A
CALL 417-626-8208 OR USE THE FORM ABOVE FOR A SHIPPING QUOTE
MIGHT BE SOME SLIGHT CABINET DAMAGE
- Energy-efficient compressor
- Factory-installed filter drier
- Copper tube/ enhanced aluminum fin coil
- Service valves with sweat connections and easy-access gauge ports
- Contactor with lug connection
- Ground lug connection
- Units meet the performance outlined in Table 6.8.1B of ASHRAE Standard 90.1-2010
- AHRI Certified
- ETL Listed
Cabinet Features
- Innovative louvered sound control top design
- Steel louver coil guard
- Heavy-gauge galvanized-steel cabinet
- Attractive Nickel Gray powder-paint finish
- Top and side maintenance access
- Single-panel access to controls with space provided for field-installed accessories
-
Condenser Fan Motor Horsepower
.167 hp Voltage
208-230 V Cooling Capacity
36000 Btu/h Nominal Cooling Capacity (Tons)
3 Sound Level
74 dB Compressor Rated Load Amps
10.4 A Compressor Locked Rotor Amps
73 A Condenser Fan Motor Full Load Amps
1.1 A Valve Type
Sweat Refrigerant Charge
68 oz Piston Size
0.07 Phase
3 Minimum Circuit Ampacity
14.1 A Maximum Overcurrent Protection
20 A Min/Max Volts
197/253 V Series
DX13S Refrigerant Used
R-410A
