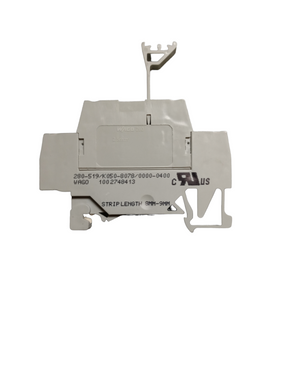

LOT OF 10 - WAGO, 280-519 Double-deck terminal block - NEW NO BOX
LOT OF 10 - WAGO, 280-519 Double-deck terminal block - NEW NO BOX is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
LOT OF 10 - WAGO, 280-519 Double-deck terminal block - NEW NO BOX
Ratings per | IEC/EN 60947-7-1 |
Rated voltage (III / 3) | 500V |
Rated impulse voltage (III/3) | 6kV |
Rated current | 20A |
Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
Power loss, per pole (potential) | 0.532W |
Rated current IN for specified power loss | 20A |
Resistance value for specified, current-dependent power loss | 0.001Ω |
Connection points | 4 |
Total number of potentials | 2 |
Number of levels | 2 |
Connection technology | CAGE CLAMP® |
Actuation type | Operating tool |
Connectable conductor materials |
Copper Aluminum |
Connectable conductor materials (note) |
Terminating Aluminum Conductors WAGO spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm²/12 AWG if WAGO “Alu-Plus” Contact Paste 249-130 is used for termination. “Alu-Plus” Contact Paste Advantages:
Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, aluminum conductors must first be cleaned with a blade and then immediately be inserted into the clamping units filled with “Alu-Plus” Contact Paste. It is also possible to apply WAGO “Alu-Plus” additionally on the whole surface of the aluminum conductor before termination. Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors:: 2.5 mm² = 16 A 4 mm² = 22 A |
Solid conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
Note (conductor cross-section) | 12 AWG: THHN, THWN |
Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Wiring direction | Front-entry wiring |
Width | 5 mm / 0.197 inches |
Height | 64 mm / 2.52 inches |
Depth from upper-edge of DIN-rail | 58.5 mm / 2.303 inches |
Design | horizontal type |
Mounting type | DIN-35 rail |
Marking level | Center marking |
Note (material data) | Information on material data can be found here |
Color | gray/gray |
Material group | I |
Insulation material | Polyamide (PA66) |
Flammability class per UL94 | V0 |
Fire load | 0.11MJ |
Weight | 10.1g |
Processing temperature | -35 … +85 °C |
Continuous operating temperature | -60 … +105 °C |
Product Group | 1 (Rail Mounted Terminal Blocks) |
eCl@ss 10.0 | 27-14-11-20 |
eCl@ss 9.0 | 27-14-11-20 |
ETIM 8.0 | EC000897 |
ETIM 7.0 | EC000897 |
PU (SPU) | 50 pcs |
Packaging type | box |
Country of origin | CN |
GTIN | 4050821293583 |
Customs tariff number | 8536904000 |
