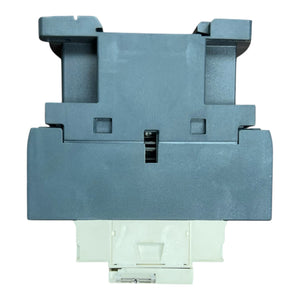

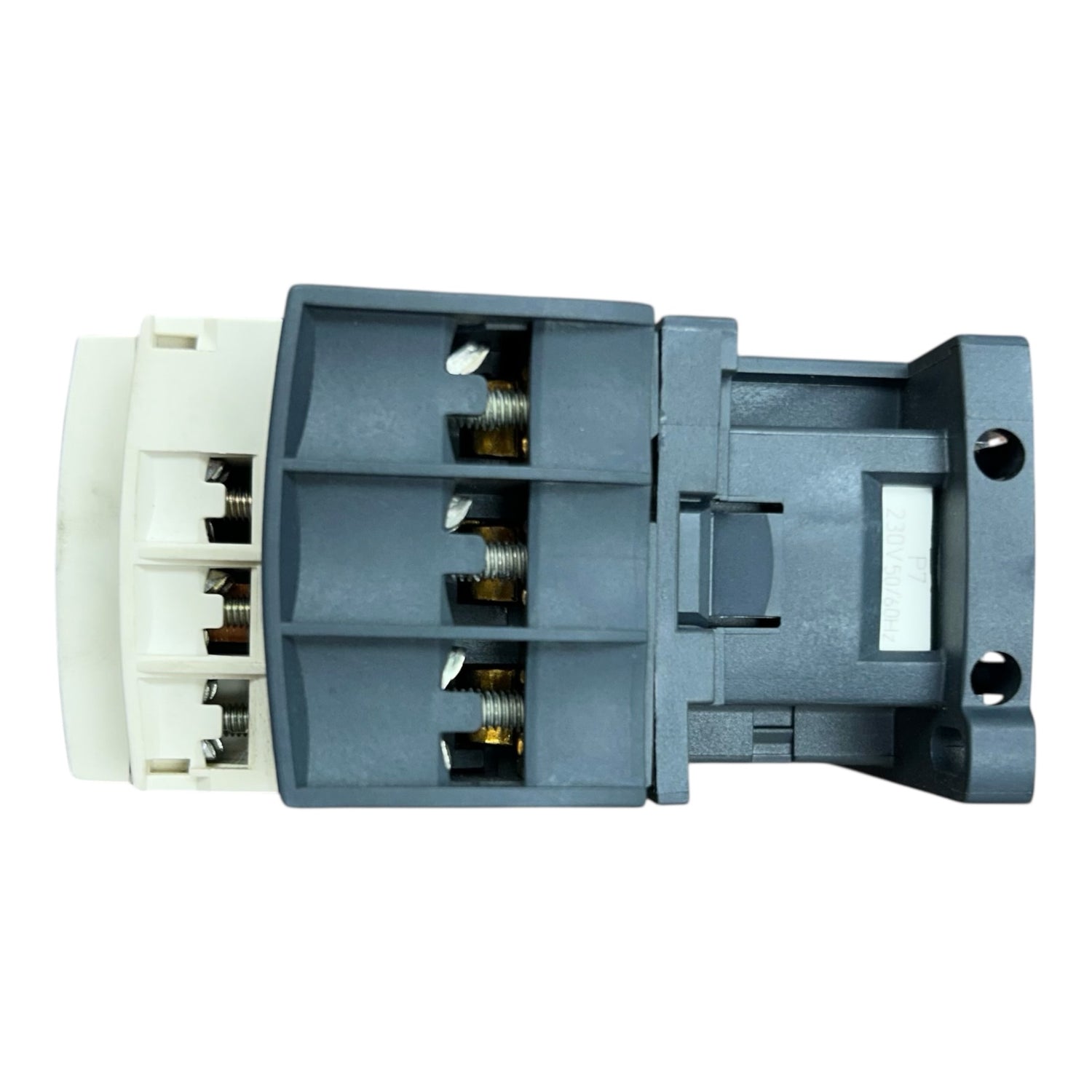

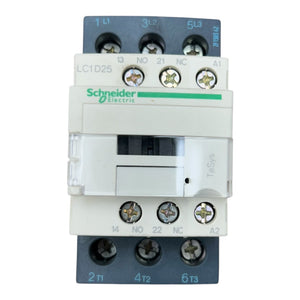

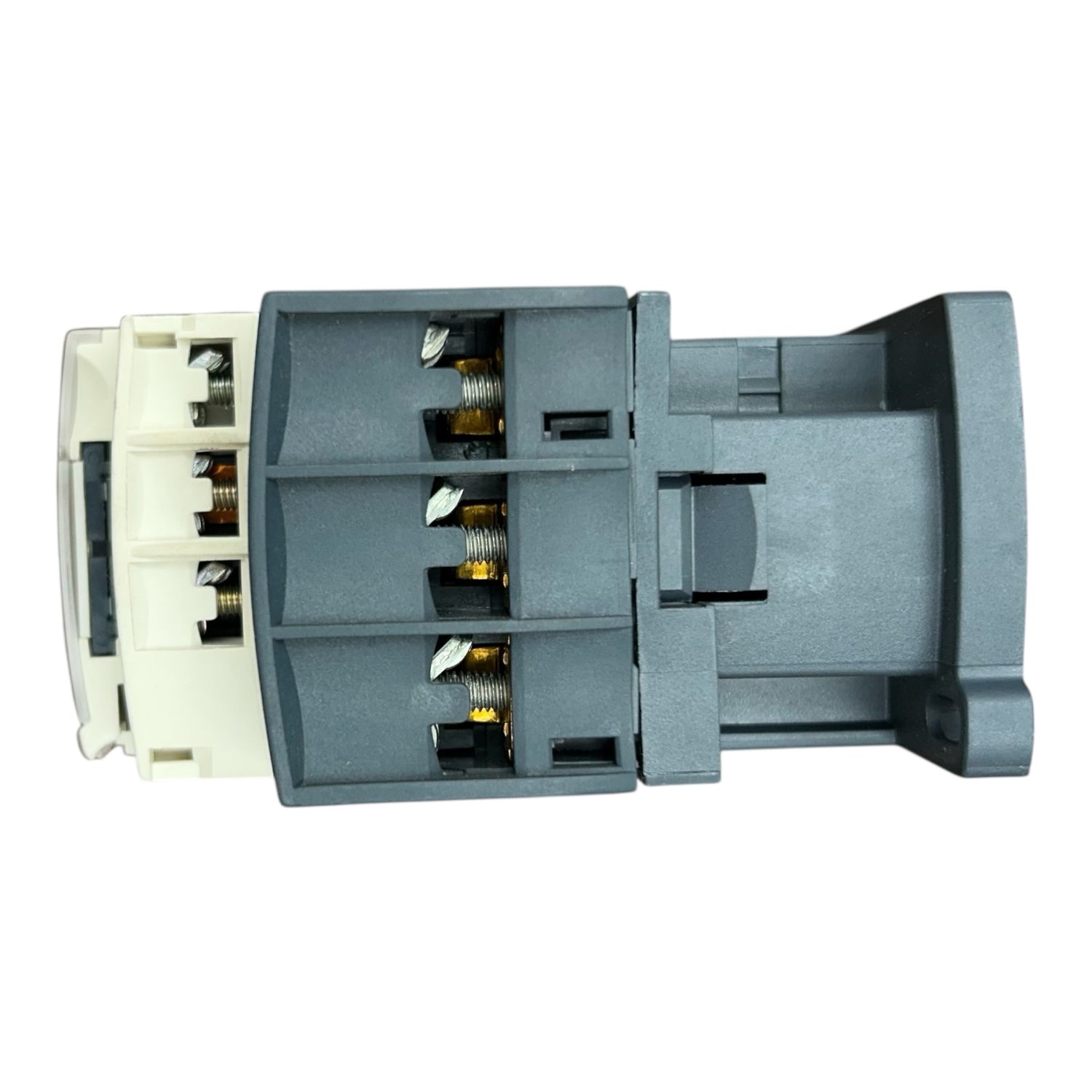

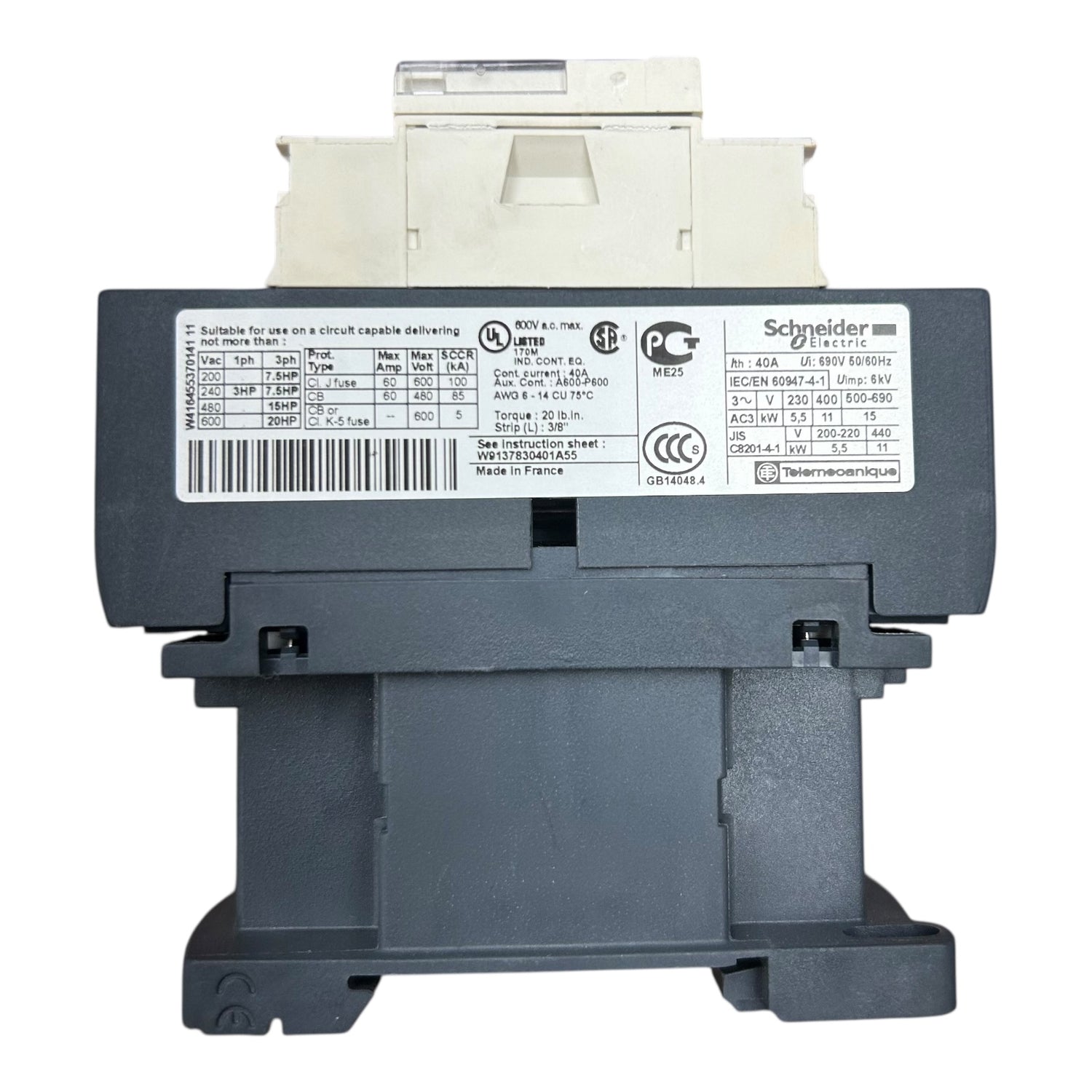

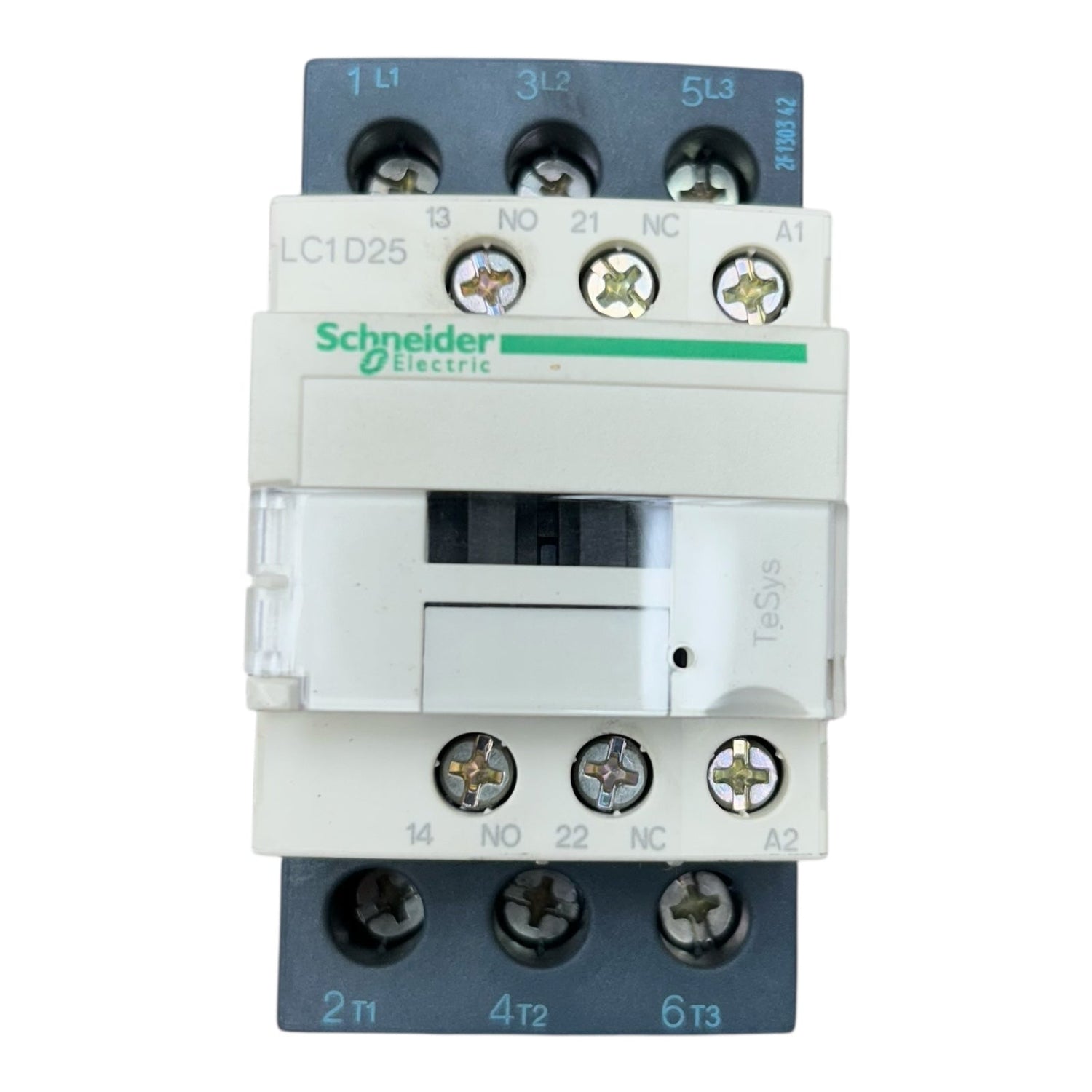

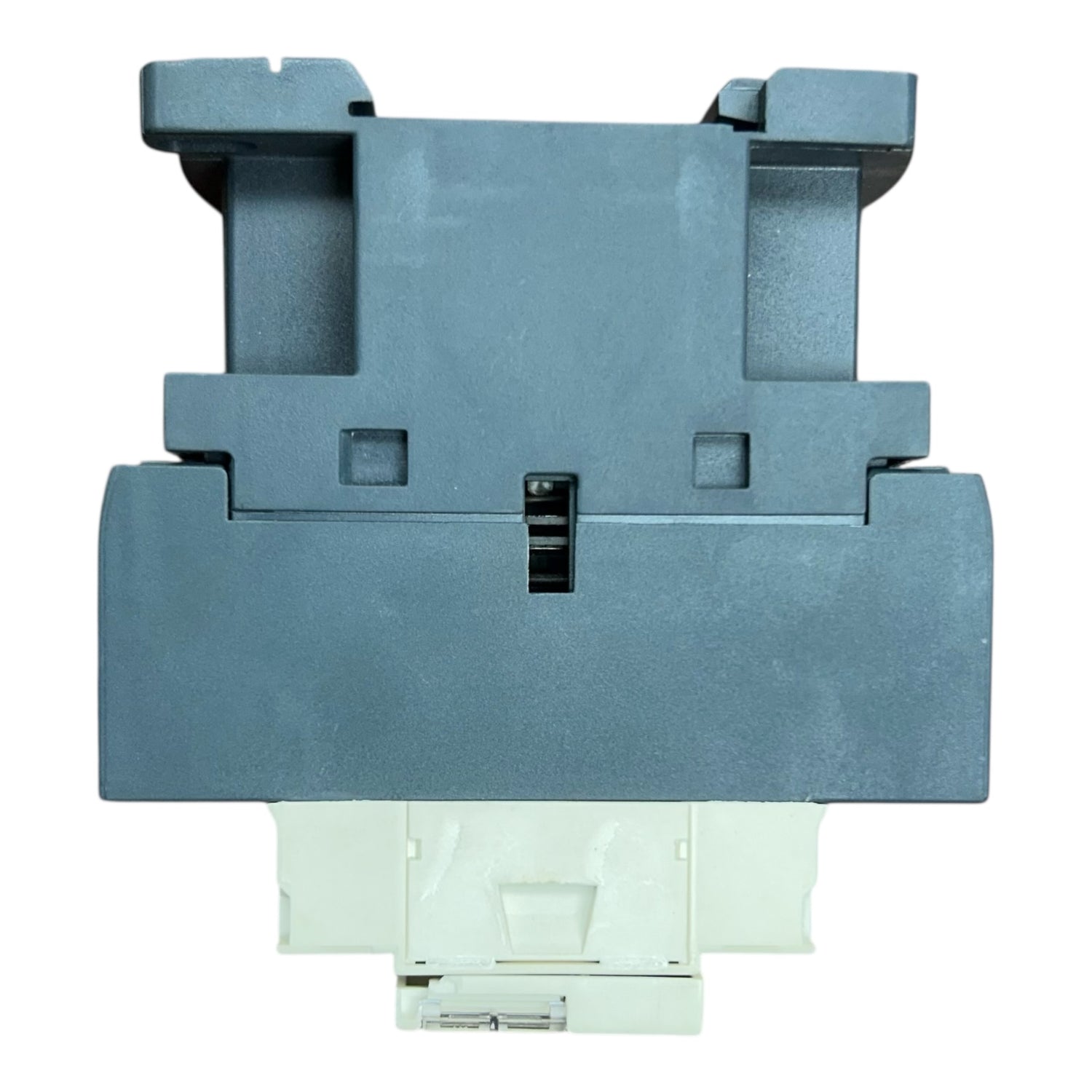

Schneider Electric, LC1D25B7, TeSys Contactor

• Range of Product	TeSys Deca
  Product or Component Type	Contactor
  Device short name	LC1D
  Contactor application	Resistive load Motor control
  Utilisation category	AC-1 AC-3 AC-4 AC-3e
  Poles description	3P
  [Ue] rated operational voltage	Power circuit <= 690 V AC 25...400 Hz Power circuit <= 300 V DC
  [Ie] rated operational current	25 A (at <140 °F (60 °C)) at <= 440 V AC AC-3 for power circuit 40 A (at <140 °F (60 °C)) at <= 440 V AC AC-1 for power circuit 25 A (at <140 °F (60 °C)) at <= 440 V AC AC-3e for power circuit
  [Uc] control circuit voltage	24 V AC 50/60 Hz

  Complementary

  Motor power kW	5.5 kW at 220...230 V AC 50/60 Hz (AC-3) 11 kW at 380...400 V AC 50/60 Hz (AC-3) 11 kW at 415...440 V AC 50/60 Hz (AC-3) 15 kW at 500 V AC 50/60 Hz (AC-3) 15 kW at 660...690 V AC 50/60 Hz (AC-3) 5.5 kW at 400 V AC 50/60 Hz (AC-4) 5.5 kW at 220...230 V AC 50/60 Hz (AC-3e) 11 kW at 380...400 V AC 50/60 Hz (AC-3e) 11 kW at 415...440 V AC 50/60 Hz (AC-3e) 15 kW at 500 V AC 50/60 Hz (AC-3e) 15 kW at 660...690 V AC 50/60 Hz (AC-3e)
  Maximum Horse Power Rating	3 hp at 230/240 V AC 50/60 Hz for 1 phase motors 2 hp at 115 V AC 50/60 Hz for 1 phase motors 7.5 hp at 230/240 V AC 50/60 Hz for 3 phase motors 15 hp at 460/480 V AC 50/60 Hz for 3 phase motors 20 hp at 575/600 V AC 50/60 Hz for 3 phase motors 7.5 hp at 200/208 V AC 50/60 Hz for 3 phase motors
  Compatibility code	LC1D
  Pole contact composition	3 NO
  Protective cover	With
  [Ith] conventional free air thermal current	10 A (at 140 °F (60 °C)) for signalling circuit 40 A (at 140 °F (60 °C)) for power circuit
  Irms rated making capacity	140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1 450 A at 440 V for power circuit conforming to IEC 60947
  Rated breaking capacity	450 A at 440 V for power circuit conforming to IEC 60947
  [Icw] rated short-time withstand current	240 A 104 °F (40 °C) - 10 s for power circuit 380 A 104 °F (40 °C) - 1 s for power circuit 50 A 104 °F (40 °C) - 10 min for power circuit 120 A 104 °F (40 °C) - 1 min for power circuit 100 A - 1 s for signalling circuit 120 A - 500 ms for signalling circuit 140 A - 100 ms for signalling circuit
  Associated fuse rating	10 A gG for signalling circuit conforming to IEC 60947-5-1 63 A gG at <= 690 V coordination type 1 for power circuit 40 A gG at <= 690 V coordination type 2 for power circuit
  Average impedance	2 mOhm - Ith 40 A 50 Hz for power circuit
  Power dissipation per pole	3.2 W AC-1 1.25 W AC-3 1.25 W AC-3e
  [Ui] rated insulation voltage	Power circuit 690 V IEC 60947-4-1 Power circuit 600 V CSA Power circuit 600 V UL Signalling circuit 690 V IEC 60947-1 Signalling circuit 600 V CSA Signalling circuit 600 V UL
  Overvoltage category	III
  pollution degree	3
  [Uimp] rated impulse withstand voltage	6 kV IEC 60947
  Safety reliability level	B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
  Mechanical durability	15 Mcycles
  Electrical durability	1.65 Mcycles 25 A AC-3 <= 440 V 1.4 Mcycles 40 A AC-1 <= 440 V 1.65 Mcycles 25 A AC-3e <= 440 V
  Control circuit type	AC 50/60 Hz standard
  Coil technology	Without built-in suppressor module
  Control circuit voltage limits	0.3...0.6 Uc (-40…158 °F (-40…70 °C)):drop-out AC 50/60 Hz 0.8...1.1 Uc (-40…140 °F (-40…60 °C)):operational AC 50 Hz 0.85...1.1 Uc (-40…140 °F (-40…60 °C)):operational AC 60 Hz 1...1.1 Uc (140…158 °F (60…70 °C)):operational AC 50/60 Hz
  Inrush power in VA	70 VA 60 Hz cos phi 0.75 (at 68 °F (20 °C)) 70 VA 50 Hz cos phi 0.75 (at 68 °F (20 °C))
  Hold-in power consumption in VA	7.5 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C)) 7 VA 50 Hz cos phi 0.3 (at 68 °F (20 °C))
  Heat dissipation	2…3 W at 50/60 Hz
  Operating time	12...22 ms closing 4...19 ms opening
  Maximum operating rate	3600 cyc/h at 60 °C
  Connections - terminals	Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 0.002…0.006 in² (1…4 mm²) - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 0.004…0.02 in² (2.5…10 mm²) - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 2 0.004…0.02 in² (2.5…10 mm²) - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 1 0.002…0.02 in² (1…10 mm²) - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 0.002…0.009 in² (1.5…6 mm²) - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 0.002…0.02 in² (1.5…10 mm²) - cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 0.004…0.02 in² (2.5…10 mm²) - cable stiffness: solid without cable end
  Tightening torque	Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Power circuit 22.1 lbf.in (2.5 N.m) screw clamp terminals flat Ø 6 mm Power circuit 22.1 lbf.in (2.5 N.m) screw clamp terminals Philips No 2 Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals pozidriv No 2 Power circuit 22.1 lbf.in (2.5 N.m) screw clamp terminals pozidriv No 2
  Auxiliary contact composition	1 NO + 1 NC
  Auxiliary contacts type	Mechanically linked 1 NO + 1 NC IEC 60947-5-1 Mirror contact 1 NC IEC 60947-4-1
  Signalling circuit frequency	25...400 Hz
  Minimum switching voltage	17 V for signalling circuit
  Minimum switching current	5 mA for signalling circuit
  Insulation resistance	> 10 MOhm for signalling circuit
  Non-overlap time	1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
  Mounting Support	Plate Rail

  Environment

  Standards	CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 60947-4-1 IEC 60335-1:Clause 30.2 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ CSA C22.2 No 60947-4-1
  Product Certifications	UL CCC CSA Marine UKCA EAC CB Scheme
  IP degree of protection	IP20 front face IEC 60529
  Protective treatment	THIEC 60068-2-30
  Climatic withstand	IACS E10 exposure to damp heat IEC 60947-1 Annex Q category D exposure to damp heat
  Permissible ambient air temperature around the device	-40…140 °F (-40…60 °C) 140…158 °F (60…70 °C) with derating
  Operating altitude	0...9842.52 ft (0...3000 m)
  Fire resistance	1562 °F (850 °C) IEC 60695-2-1
  Flame retardance	V1 conforming to UL 94
  Mechanical robustness	Vibrations contactor open 2 Gn, 5...300 Hz) Vibrations contactor closed 4 Gn, 5...300 Hz) Shocks contactor closed 15 Gn for 11 ms) Shocks contactor open 8 Gn for 11 ms)
  Height	3.3 in (85 mm)
  Width	1.8 in (45 mm)
  Depth	3.6 in (92 mm)
  Net Weight	0.82 lb(US) (0.37 kg)

  Ordering and shipping details

  Category	US10I1222354
  Discount Schedule	0I12
  GTIN	3389110349658
  Returnability	Yes
  Country of origin	ID

  Packing Units

  Unit Type of Package 1	PCE
  Number of Units in Package 1	1
  Package 1 Height	1.97 in (5.000 cm)
  Package 1 Width	3.54 in (9.000 cm)
  Package 1 Length	4.33 in (11.000 cm)
  Package 1 Weight	14.850 oz (421.000 g)
  Unit Type of Package 2	S02
  Number of Units in Package 2	20
  Package 2 Height	5.91 in (15.000 cm)
  Package 2 Width	11.81 in (30.000 cm)
  Package 2 Length	15.75 in (40.000 cm)
  Package 2 Weight	18.969 lb(US) (8.604 kg)
  Unit Type of Package 3	P06
  Number of Units in Package 3	320
  Package 3 Height	29.53 in (75.000 cm)
  Package 3 Width	23.62 in (60.000 cm)
  Package 3 Length	31.50 in (80.000 cm)
  Package 3 Weight	323.498 lb(US) (146.736 kg)
