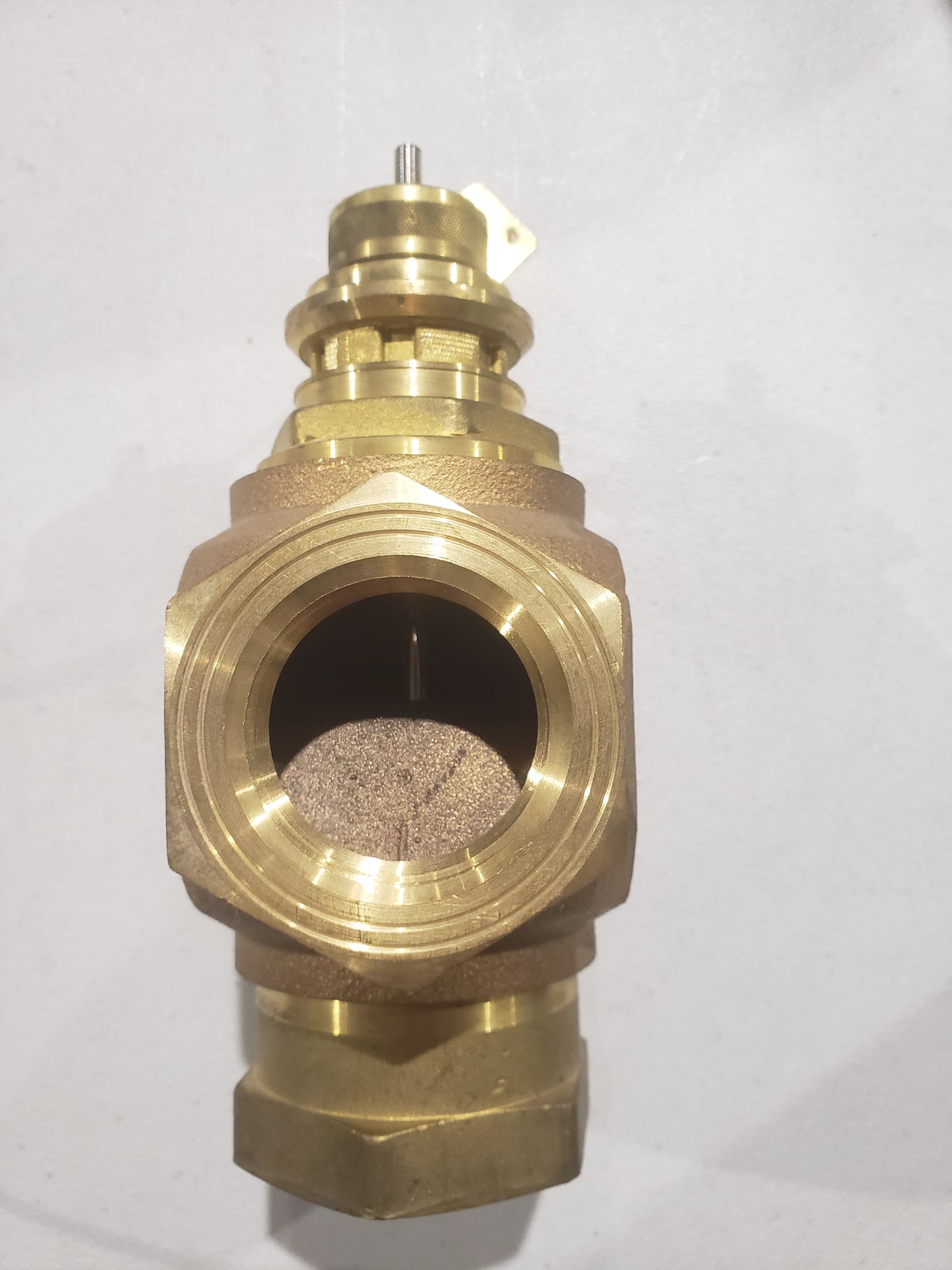

Johnson Controls 1-1/2" NPT 3 Way Mixing Valve Body (28.9 Cv)

VG7000 Series Bronze Control Valves are designed primarily to regulate the flow of water and steam in response to the demand of a controller in HVAC systems. These valves are available in Normally Open (N.O.), Normally Closed (N.C.), and three-way mixing configurations. Both electric and pneumatic actuators are available for factory or field mounting.

Features:

• Designed to regulate the flow of hot or chilled water, 50/50 glycol solution and steam in HVAC applications
• Complies with ANSI class 250 pressure/temperature standard
• Linear flow characteristic
• NPT connections
• Size: 1-1/2"
• Cv: 28.9 Valve type: Mixing
