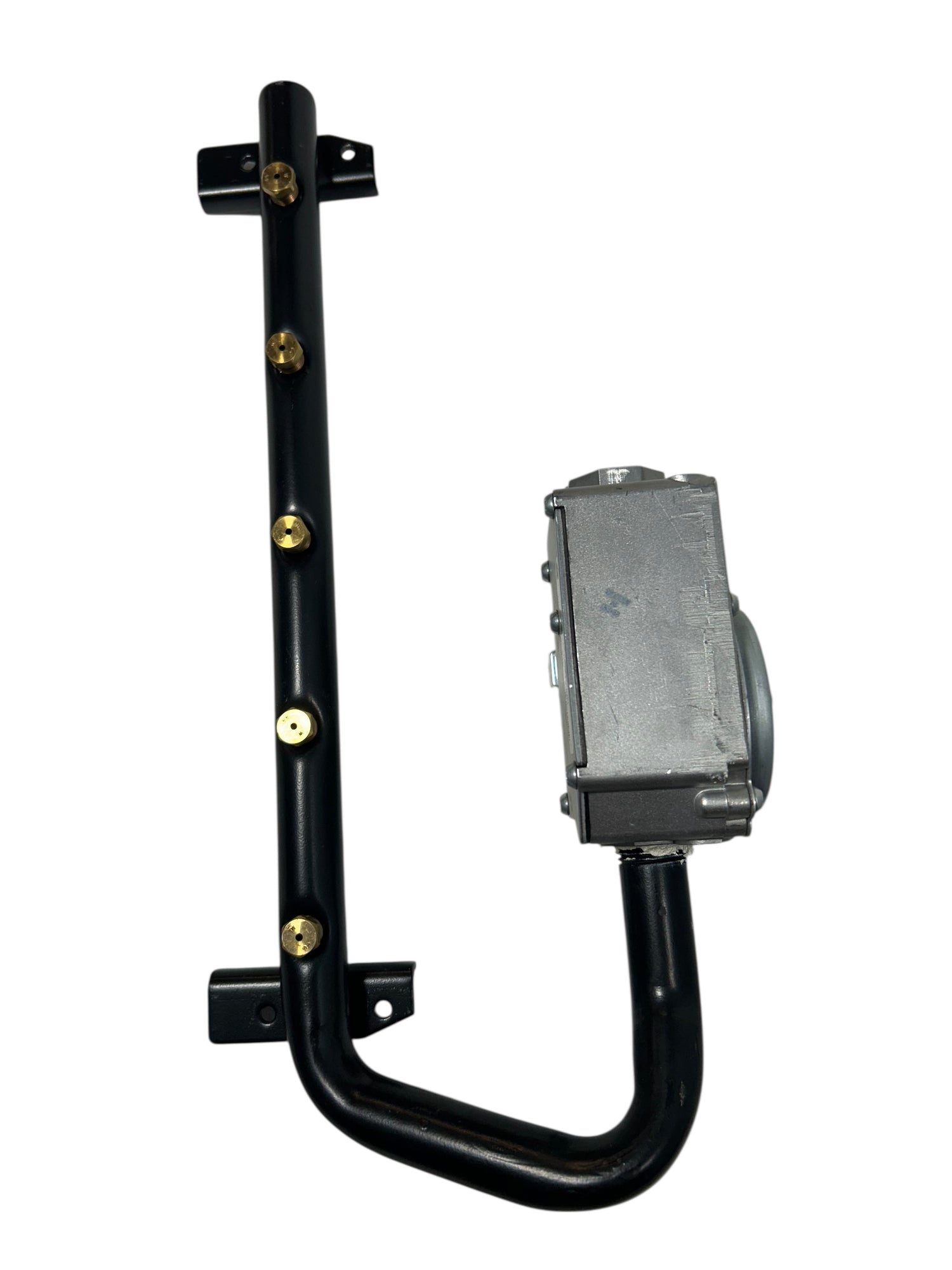

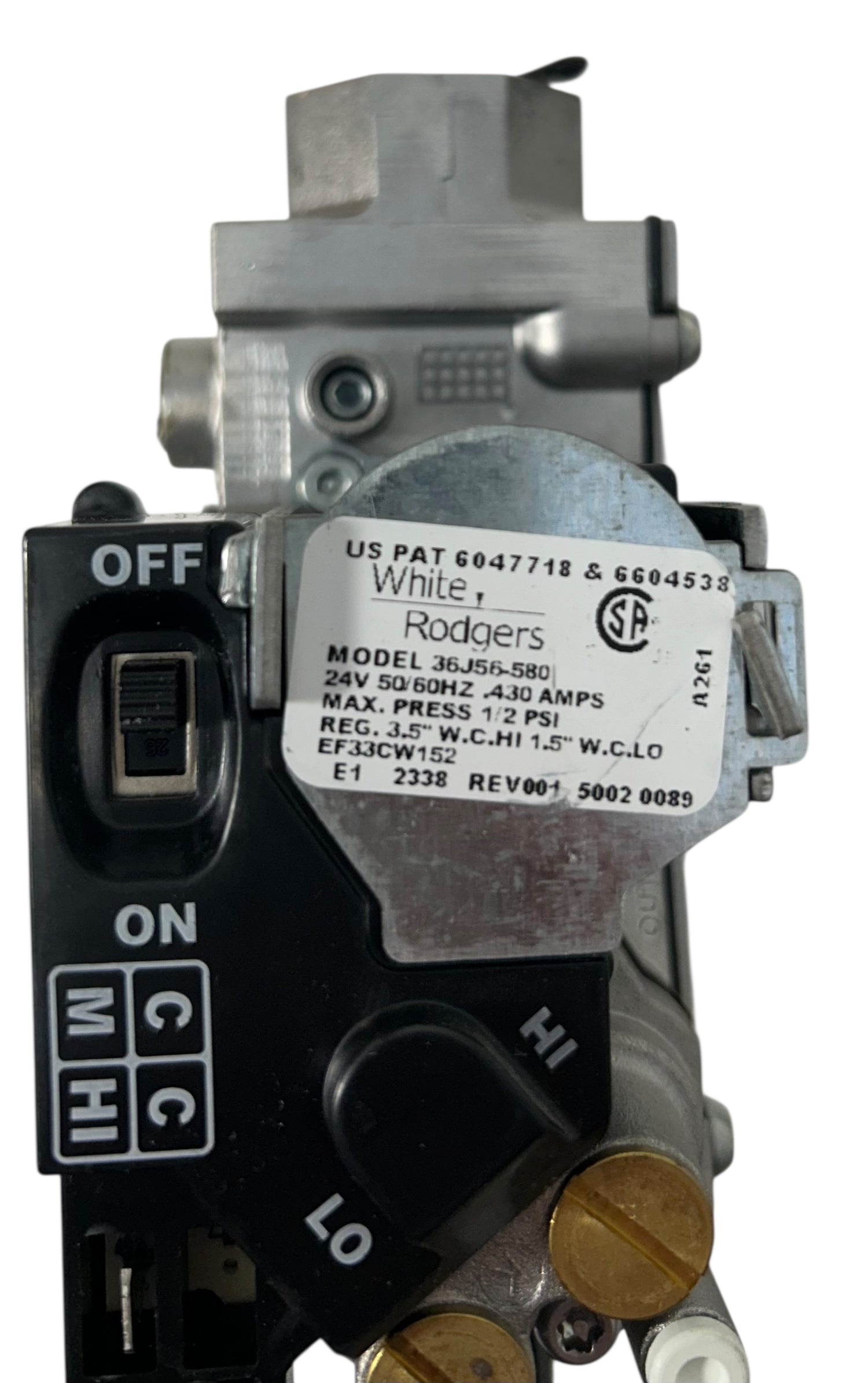

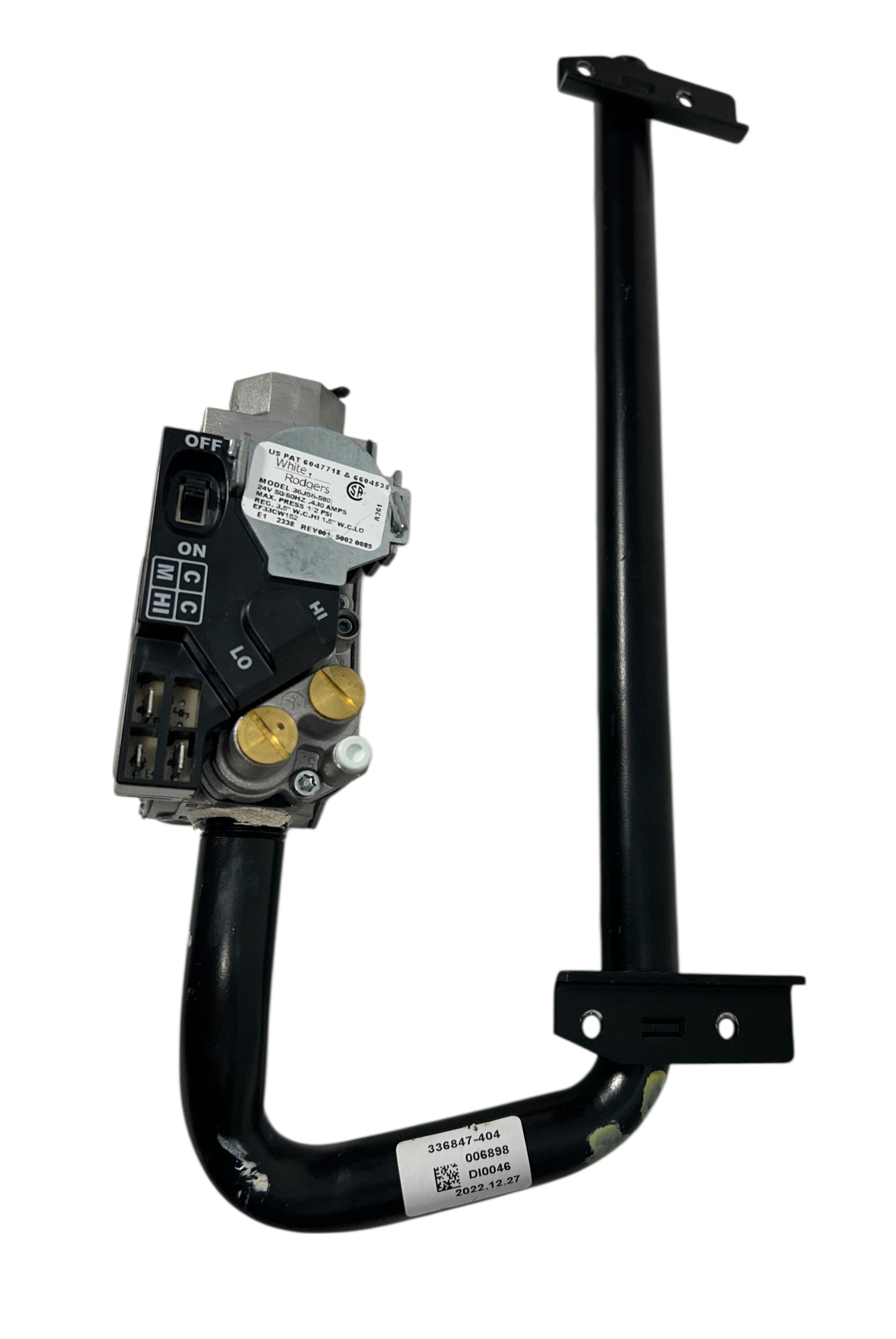

White-Rodgers 36J56-580 Furnace Gas Valve and Rail
White-Rodgers 36J56-580 Furnace Gas Valve and Rail is backordered and will ship as soon as it is back in stock.
Pickup currently unavailable at Freeman Liquidators Annex
Description
Description
Brand: White-Rodgers
Product Key Features
- (1) - Gas Valve (EF33CW152)
Specifications
- Manufacturer: White Rodgers
- Model # 36J56-580
- Stages: 2
- Gas Type: Natural Gas or LP (Conversion Kit NOT Included)
- Ignition Type: Direct Spark or Hot Surface
- Opening Characteristics:
- BTU/HR @ 1" Pressure Drop: 140,000 (Natural); 226,800 (LP Gas)
- Voltage: 24
- Hertz: 50/60
- Amperage: 0.430
- Pressure Regulator Factory Set To: 3.5" W.C.(High)
- Pressure Regulator Factory Set To: 1.5" W.C.(Low)
- Regulator Adjustment Range (Natural/High): 2.0"-5.0"
- Regulator Adjustment Range (Natural/Low): 1.0"-4.0"
- Regulator Adjustment Range (LP Gas/High): 6.0"-12.0"
- Regulator Adjustment Range (LP Gas/Low): 4.0"-10.0"
- Max Pressure: 1/2 PSI
- Inlet/Outlet Diameter: 1/2"
- Pressure Tap: 1/8" NPT
- Mounting: Any Position
- Ambient Temperature Range: -40°F to 175°F
Country of Origin: Mexico
Replaces Old Carrier Part Numbers
- EF33CW206
Other Part Numbers
Valve, Gas, EF33CW152, Factory Authorized Parts, Replacement Components Division, Carrier Corporation
Fits Carrier, Bryant, Payne Models:
(Press ctrl + F to find model number below.)
59TN6B060C171114, 59TN6B080C171114, 59TN6B080C211120, 59TN6B100C211122, 59TN6B120C241122, 59TP6B040V141110, 59TP6B040V171112, 59TP6B060V141112, 59TP6B060V171114, 59TP6B060V171214, 59TP6B080V171116, 59TP6B080V211120, 59TP6B080V211220, 59TP6B100V211120, 59TP6B100V211220, 59TP6B120V241122, 926TB30040V14A-A, 926TB36040V17A-A, 926TB36060V14A-A, 926TB42060V17A-A, 926TB42060V17A-B, 926TB48080V17A-A, 926TB60080V21A-A, 926TB60080V21A-B, 926TB60100V21A-A, 926TB60100V21A-B, 926TB66120V24A-A, 986TC42060C17A-A, 986TC42080C17A-A, 986TC60080C21A-A, 986TC66100C21A-A, 986TC66120C24A-A, PG96VTAA30040AAA, PG96VTAA36040BAA, PG96VTAA36060AAA, PG96VTAA42060BAA, PG96VTAA42060BBA, PG96VTAA48080BAA, PG96VTAA60080CAA, PG96VTAA60080CBA, PG96VTAA60100CAA, PG96VTAA60100CBA, PG96VTAA66120DAA
Model: EF33CW152
