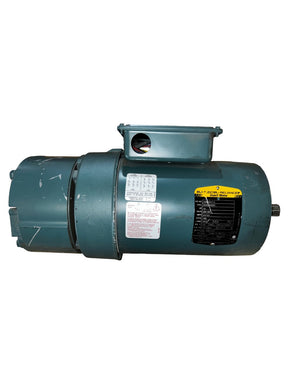

Baldor-Reliance Motor, VEBM3554T-D, 1.5HP, 1760RPM, 3PH, 60HZ, 145TC, 3524M, TEFC - New No Box

$999.99 $2,075.99
Shipping calculated at checkout.

Description

Baldor-Reliance Motor, VEBM3554T-D, 1.5HP, 1760RPM, 3PH, 60HZ, 145TC, 3524M, TEFC - New No Box

PRODUCT DISCLOSURE:

All products were acquired by Freeman Liquidators from a sale of merchandise subject to a commercial insurance loss. Freeman Liquidators is a secondary seller of products, is not affiliated with or sponsored by the manufacturer of the products and is not a manufacturer authorized seller of the products. Sale of this product by Freeman Liquidators is not subject to the policies of the manufacturer. Any warranty offered by the manufacturer is not available to you as the purchaser. All products are NEVER USED but external packaging will have damage. Some items may be placed into other packaging to ensure safe shipping. All items are opened for inspection prior to shipment to ensure the best quality of products. Freeman Liquidators guarantees your satisfaction. If you are not completely satisfied with a purchased product, within 30 days from the date of purchase, return the product in its packaging and Freeman Liquidators will fully refund your money.

External Packaging/Item has been subjected to cosmetic smoke damages.

*This product has been subjected to minor cosmetic damages from long term storage or shipment.  The cosmetic damages will not affect the overall performance of the product.

Catalog Number-VEBM3554T-D
Enclosure-TEFC
Frame-145TC
Frame Material-Steel
Frequency-60.00 Hz
Motor Letter Type-Three Phase
Output @ Frequency-1.500 HP @ 60 HZ
Phase3
Synchronous Speed @ Frequency-17600 RPM @ 60 HZ
Voltage @ Frequency-460.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and Group-None
XP Division-Not Applicable
Agency Approvals-NEMA_PREMIUM
UR
NEMA PREMIUM
CSA EEV
Ambient Temperature-40 °C
Auxillary Box-No Auxillary Box
Auxillary Box Lead Termination-None
Base Indicator-No Mounting
Bearing Grease Type-Polyrex EM (-20F +300F)
Blower-None
Brake Torque-10.0 lb-ft
Current @ Voltage-4.600 A @ 230.0 V
4.640 A @ 208.0 V
2.300 A @ 460.0 V
Design Code-B
Drip Cover-No Drip Cover
Duty Rating-CONT
Efficiency @ 100% Load-86.5 %
Electrically Isolated Bearing-Not Electrically Isolated
Feedback Device-NO FEEDBACK
High Voltage Full Load Amps-2.3 a
Front Face Code-Brake Mounting
Front Shaft Indicator-None
Heater Indicator-No Heater
Insulation Class-F
Inverter Code-Inverter Ready
KVA Code-M
Lifting Lugs-No Lifting Lugs
Locked Bearing Indicator-Locked Bearing
Motor Lead Exit-Ko Box
Motor Lead Termination-Flying Leads
Motor Lead Quantity/Wire Size-9 @ 18 AWG
Motor Type-3524M
Mounting Arrangement-F1
Number of Poles-4
Overall Length-17.86 IN
Power Factor-72
Product Family-General Purpose
Pulley End Bearing Type-Ball
Pulley Face Code-C-Face
Pulley Shaft Indicator-Standard
Rodent Screen-None
RoHS Status-ROHS COMPLIANT
Service Factor-1.15
Shaft Diameter-0.875 IN
Shaft Extension Location-Pulley End
Shaft Ground Indicator-No Shaft Grounding
Shaft Rotation-Reversible
Shaft Slinger Indicator-No Slinger
Speed-1770 rpm
Speed Code-Single Speed
Motor Standards-NEMA
Starting Method-Direct on line
