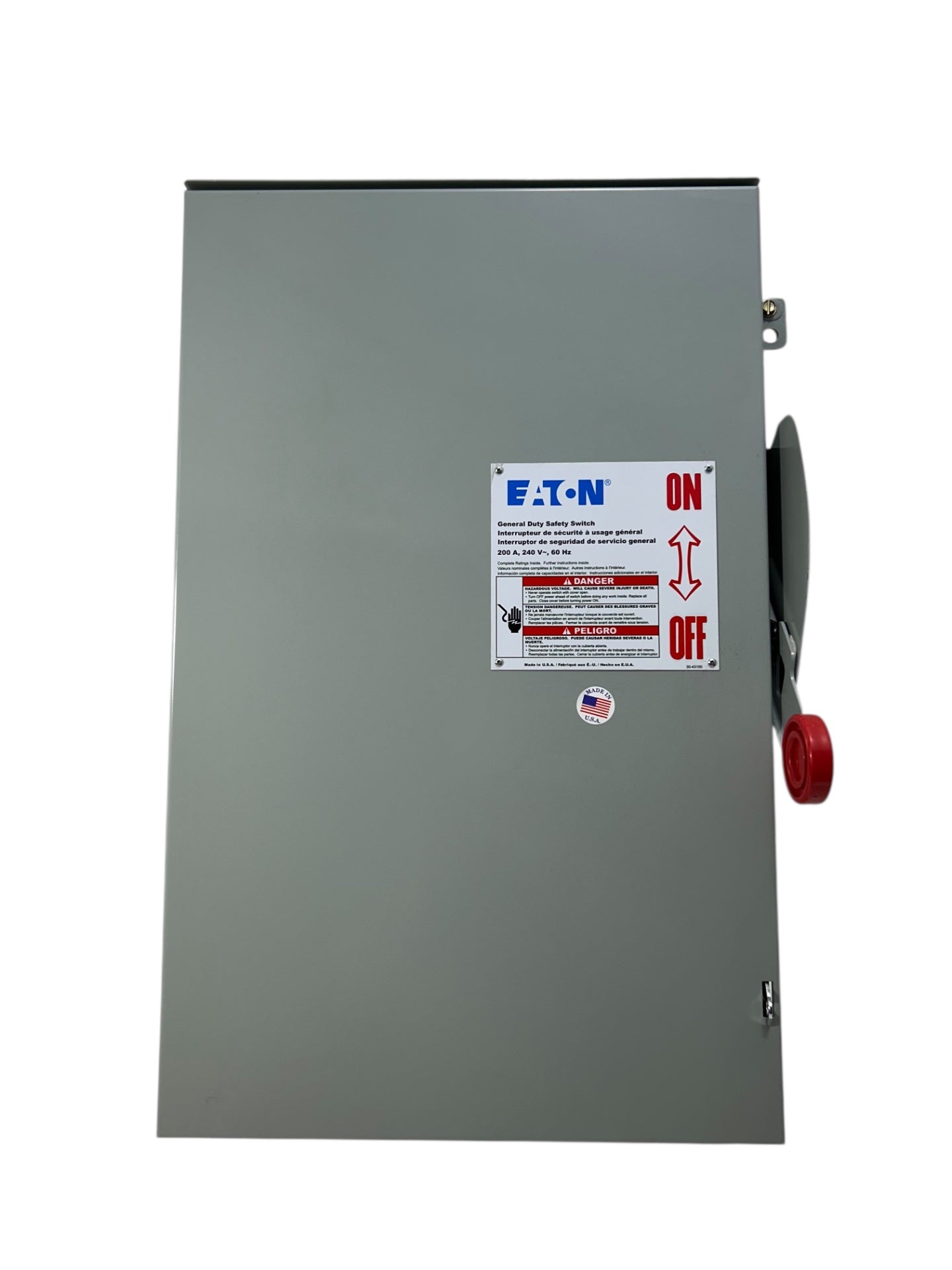

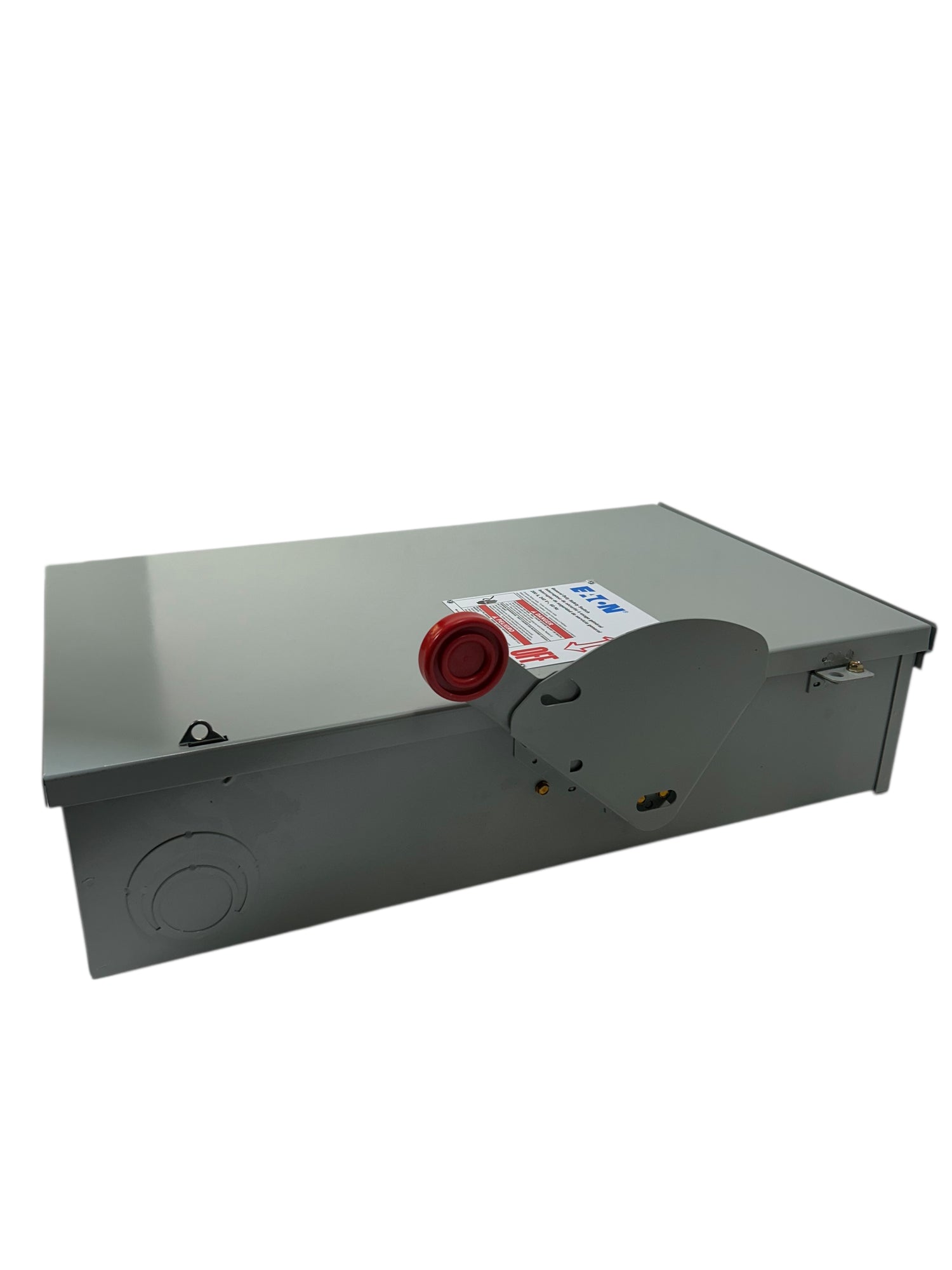

Eaton, DG224NRK, 200A, 2‑Pole, Fusible, General‑Duty, Safety Switch, 240V AC, NEMA 3R

The Eaton DG224NRK is a 200 Amp, 2‑pole, 240V AC, fusible general‑duty safety switch designed for residential and commercial disconnect applications. Built with a NEMA 3R rainproof enclosure, this switch provides reliable outdoor performance and supports Class H cartridge fuses for overcurrent protection. The DG‑Series design includes ample wiring space, a durable steel housing, and a visible blade mechanism for safe operation.

Key Features

• 200A general‑duty safety switch

• 2‑pole, 3‑wire configuration

• Fusible with neutral (supports Class H fuses)

• 240V AC rated

• NEMA 3R outdoor enclosure for rainproof protection

• Cartridge‑fuse design for dependable overcurrent protection

• Ample wire‑bending space for easier installation

• Durable painted galvanized steel housing

• Suitable for residential and commercial disconnect applications

Specifications

• Model: DG224NRK

• Series: DG (General Duty)

• Amperage: 200A

• Voltage: 240V AC

• Poles: 2

• Wires: 3

• Fuse Type: Class H cartridge fuses

• Enclosure: NEMA 3R (outdoor)

• Enclosure Dimensions: Approx. 25.5" H × 16" W × 6.14" D

• Material: Painted galvanized steel

• Application: Service entrance, motor circuits, disconnecting means

Common Uses

• Outdoor service disconnect

• Residential and commercial power distribution

• HVAC, pump, and equipment disconnects

• Applications requiring fusible overcurrent protection

 (K‑Series, 3‑Wire)
