Enphase, IQ Combiner 5C, Pre‑Wired Smart Combiner, with IQ Gateway, Cellular Modem, CTs (X-IQ-AM1-240-5C)

The Enphase IQ Combiner 5C consolidates solar interconnection equipment into a single, pre‑wired enclosure, streamlining installation for IQ Series Microinverters and Enphase Energy Systems. This model includes an integrated IQ Gateway, cellular modem, and pre‑installed production metering CT, providing a clean, consistent, and code‑compliant solution for residential solar installations.

Designed for modern Enphase systems, the IQ Combiner 5C supports IQ8 microinverters, IQ Battery 5P, and IQ System Controller 3/3G/3M, enabling full monitoring, flexible networking, and grid‑agnostic operation.

Key Features

• Pre‑wired smart combiner with IQ Gateway included

• Integrated cellular modem for remote monitoring

• Supports Wi‑Fi, Ethernet, or cellular networking

• Production metering CT pre‑installed

• Includes CT for IQ Battery metering

• Supports up to four 2‑pole branch circuits

• Compatible with IQ6, IQ7, and IQ8 microinverters

• Works with IQ Battery 5P and IQ System Controller 3/3G/3M

• Outdoor‑rated NEMA 3R enclosure

• Streamlines commissioning and system setup

Specifications

• Part Number: 883‑00357‑56

• Model: IQ Combiner 5C

• System Voltage: 120/240 VAC, 60 Hz

• Max Continuous Input Current: 64A

• Max Branch Circuit Rating: 80A (95A with IQ Gateway breaker)

• Busbar Rating: 125A

• Fault Current Rating: 10 kAIC

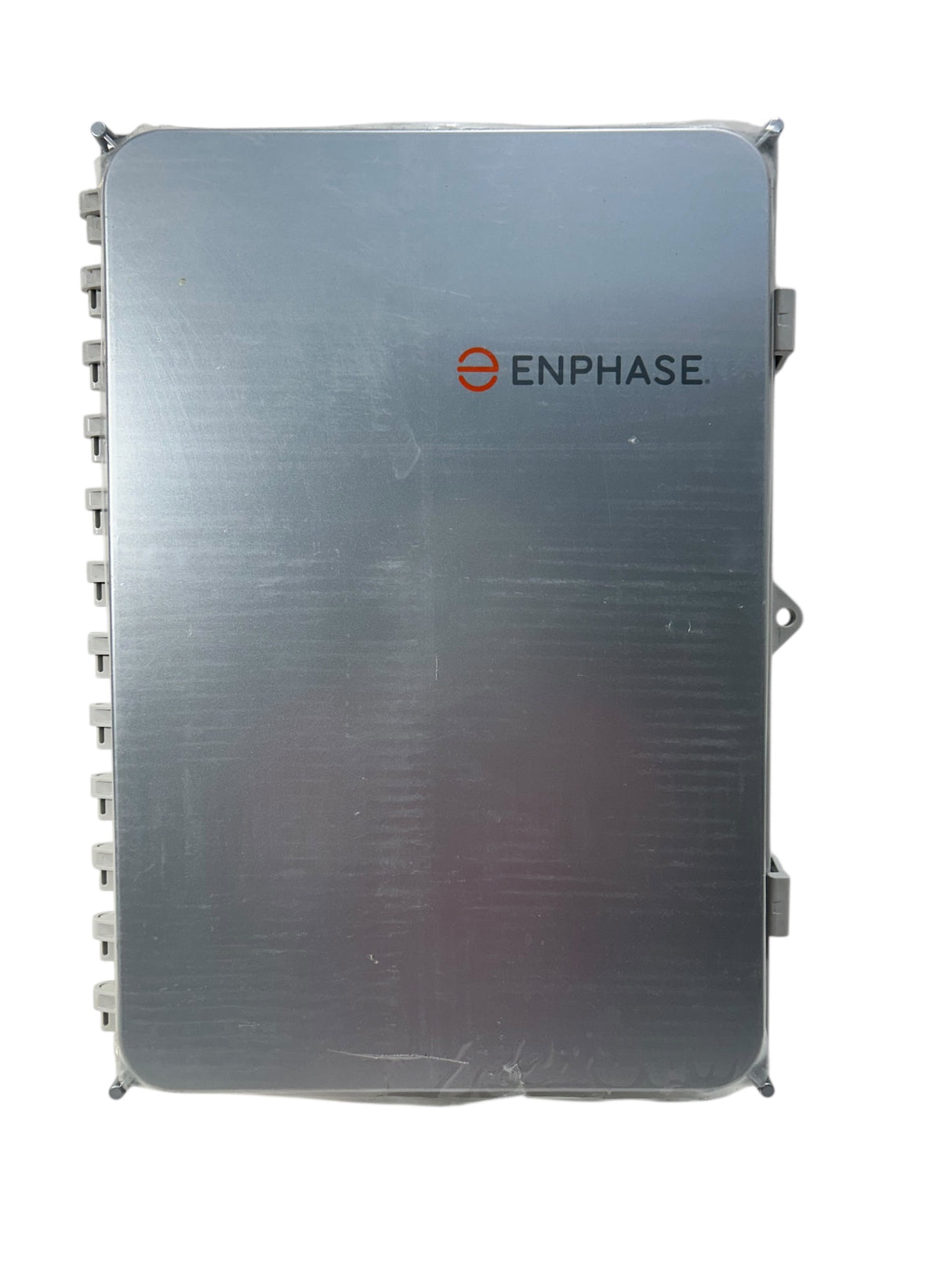

• Enclosure: NEMA 3R outdoor

• Weight: ~16.5 lbs

• Dimensions: ~19.5" H × 14.75" W × 9.5" D

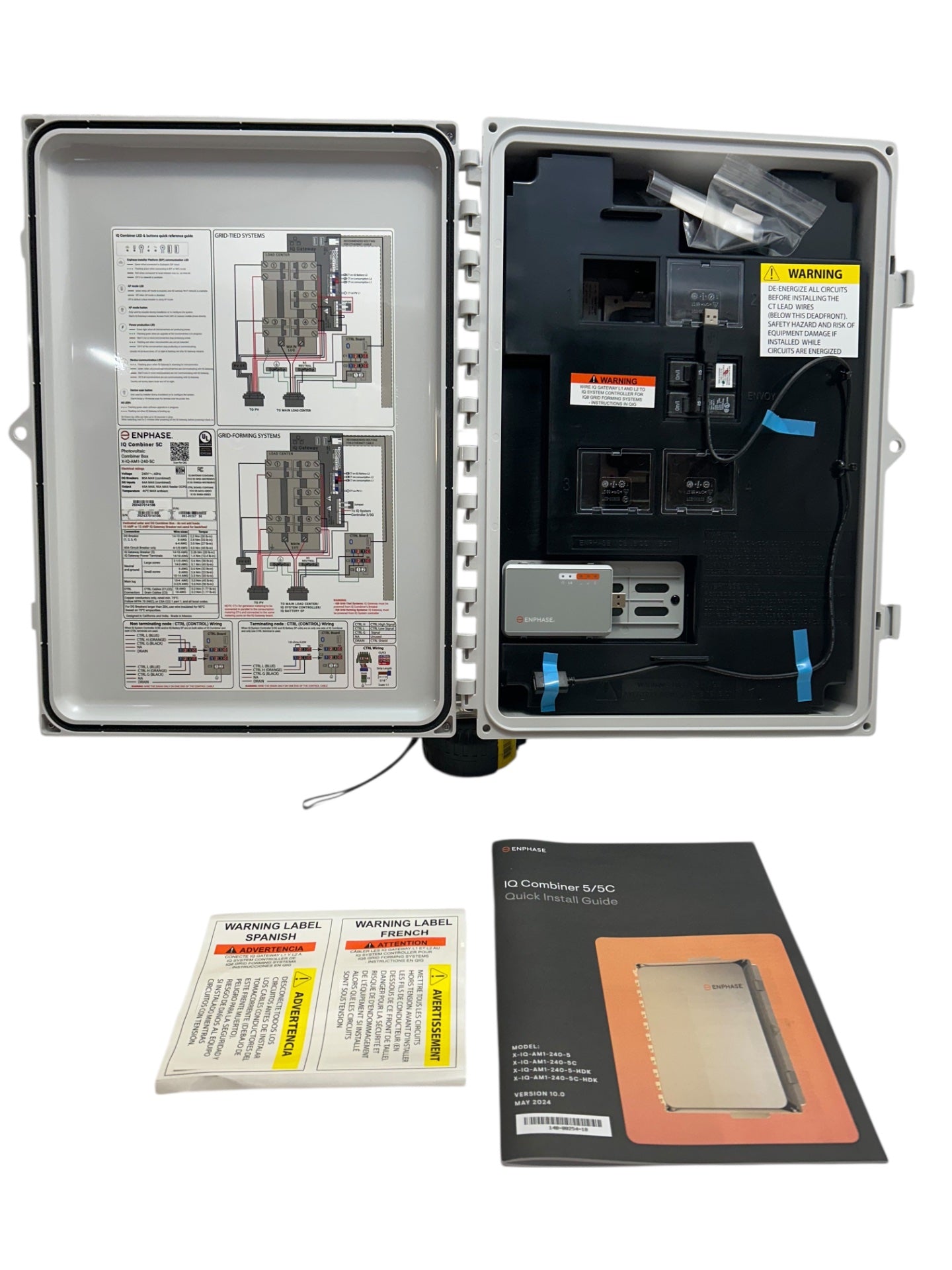

What’s Included

• IQ Combiner 5C enclosure

• IQ Gateway (pre‑installed)

• Cellular modem

• Production metering CT (pre‑installed)

• Battery metering CT

• Pre‑wired breakers and wiring harness

Common Uses

• Residential Enphase solar installations

• Systems using IQ8 microinverters

• Installations requiring cellular monitoring

• Projects integrating IQ Battery 5P and IQ System Controller

Barcode: X-IQ-AM1-240-5C
