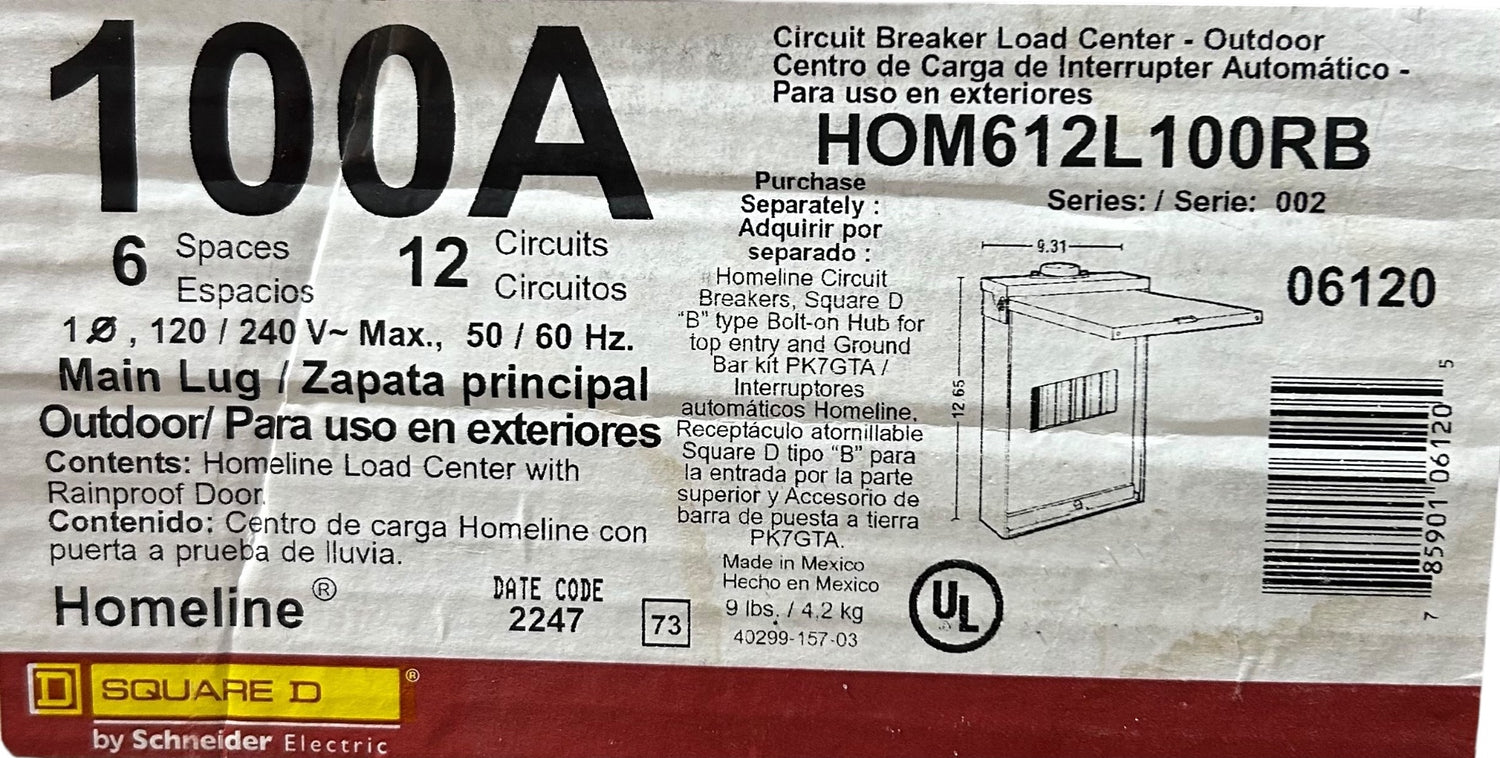

Schneider Electric, HOM612L100RB, Homeline, 100A, 6‑Space, 12‑Circuit, Outdoor Load Center, (120/240V, NEMA 3R)

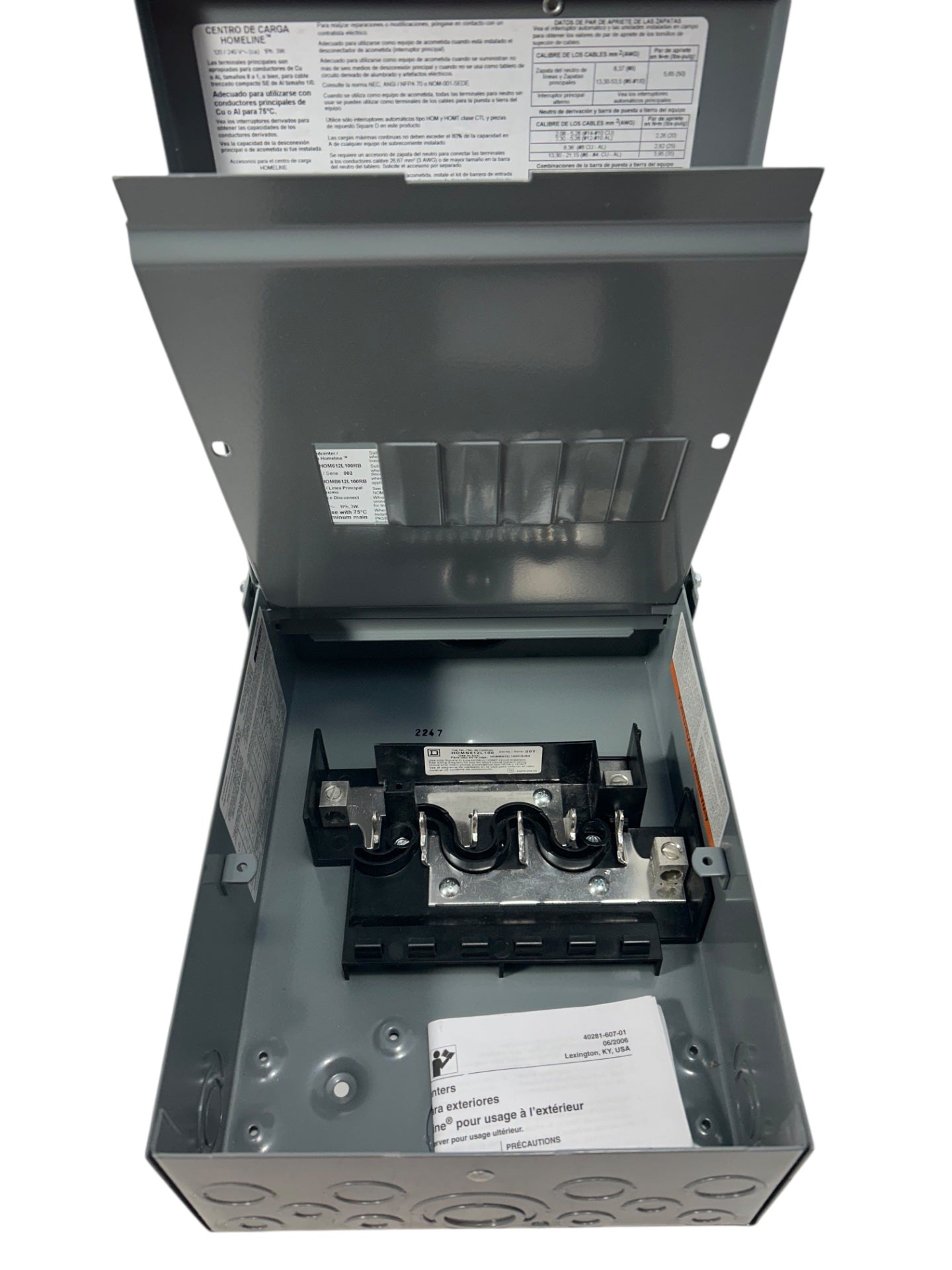

The Schneider Electric HOM612L100RB is a compact 100 Amp, 6‑space / 12‑circuit outdoor load center from the Homeline series, designed for reliable residential power distribution. This main‑lug‑only panel features a durable NEMA 3R rainproof enclosure, tin‑plated aluminum bus bars, and distributed neutral bars for clean, efficient wiring.

Ideal for small outdoor sub‑panels, equipment feeds, or tight installation spaces.

Key Features

• 100A main‑lug load center

• 6 spaces / 12 circuits for compact installations

• Outdoor‑rated NEMA 3R enclosure

• Homeline series — compatible with Homeline breakers

• Tin‑plated aluminum bus bars for corrosion resistance

• Distributed neutral bars for cleaner wiring

• Surface‑mount cover included

• Fast installation with Homeline’s simplified design

Specifications

• Model: HOM612L100RB

• Series: Homeline

• Amperage: 100A

• Voltage: 120/240V AC

• Phase: 1‑phase, 3‑wire

• Spaces: 6

• Circuits: 12

• Short‑Circuit Rating: 10 kAIC

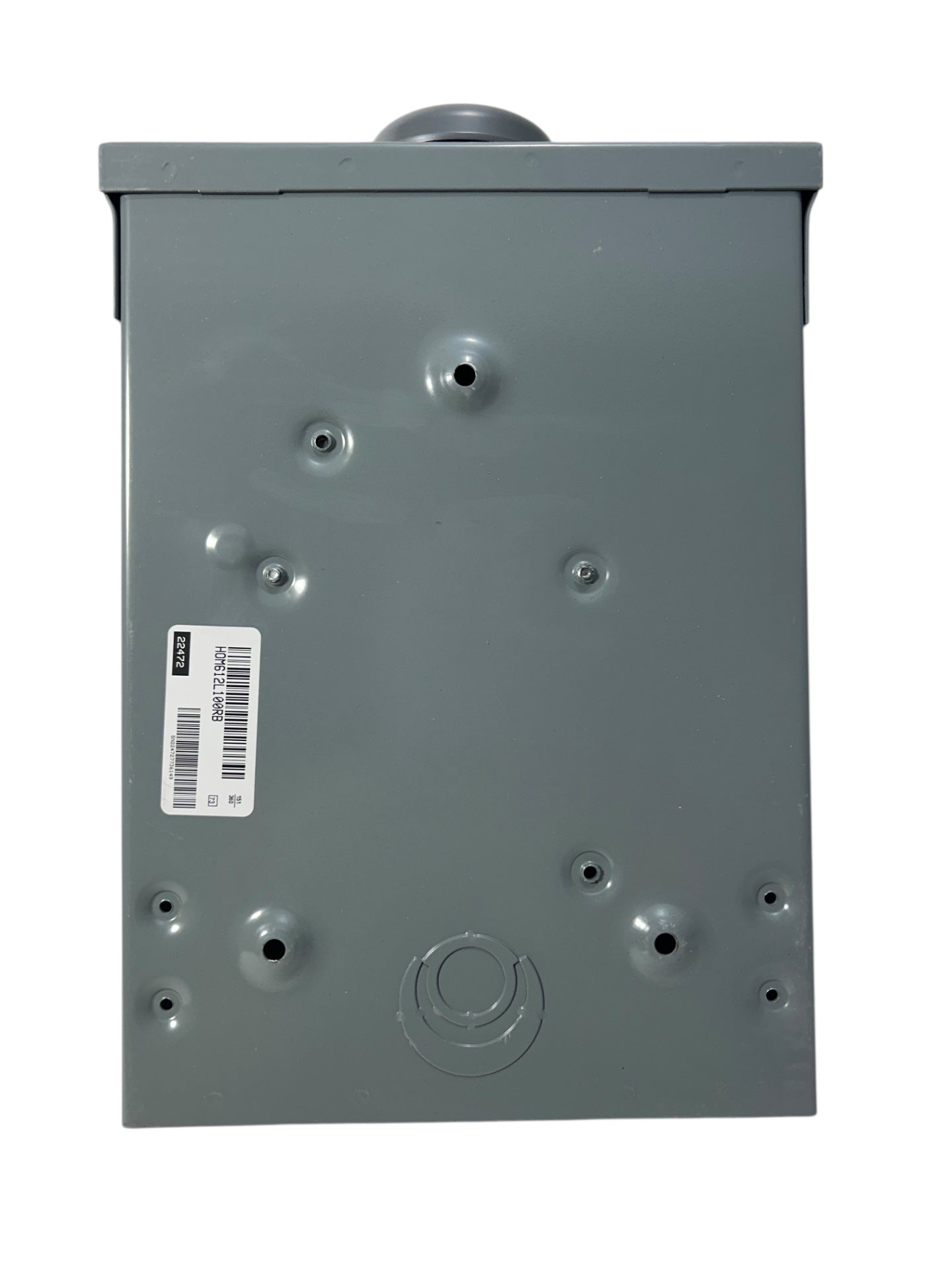

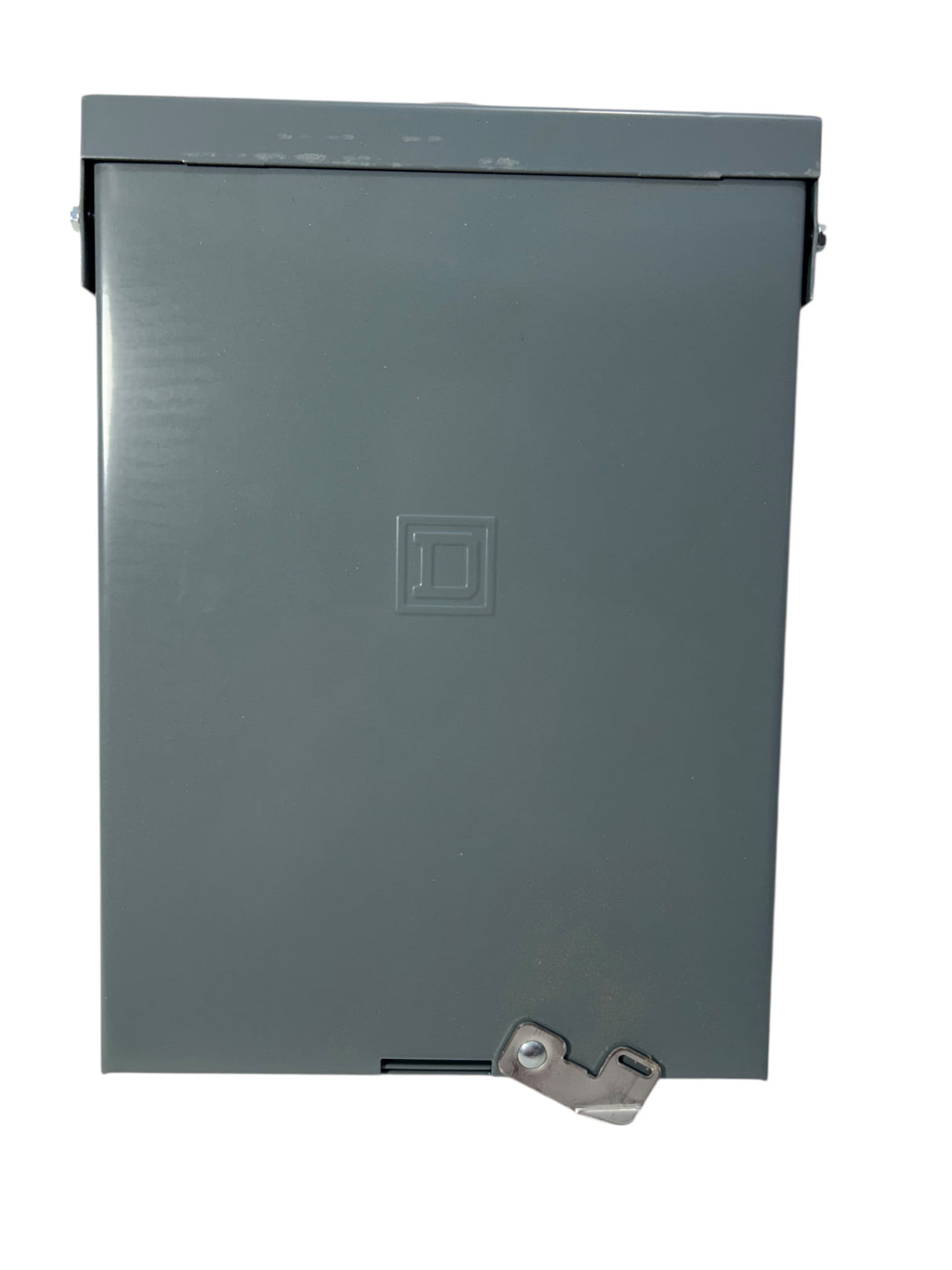

• Enclosure: NEMA 3R outdoor (raintight)

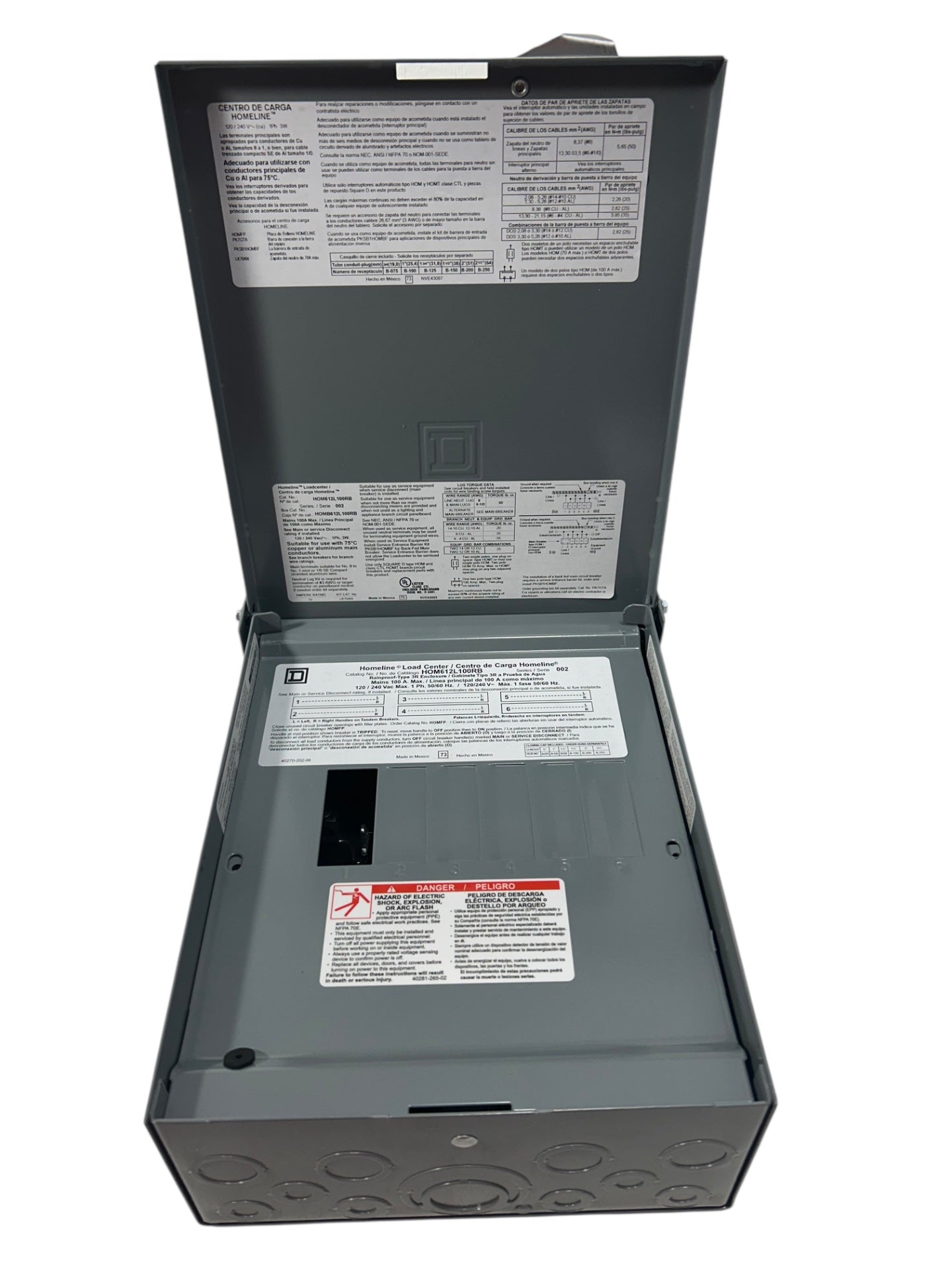

• Cover Type: Surface cover

• Bus Material: Tin‑plated aluminum

• Enclosure Material: Welded galvannealed steel with baked‑enamel finish

• Wire Range: AWG 8–1 Cu/Al conductors

Common Uses

• Outdoor sub‑panels

• Small residential circuits

• Equipment disconnects

• Add‑on circuits for sheds, garages, and exterior loads
