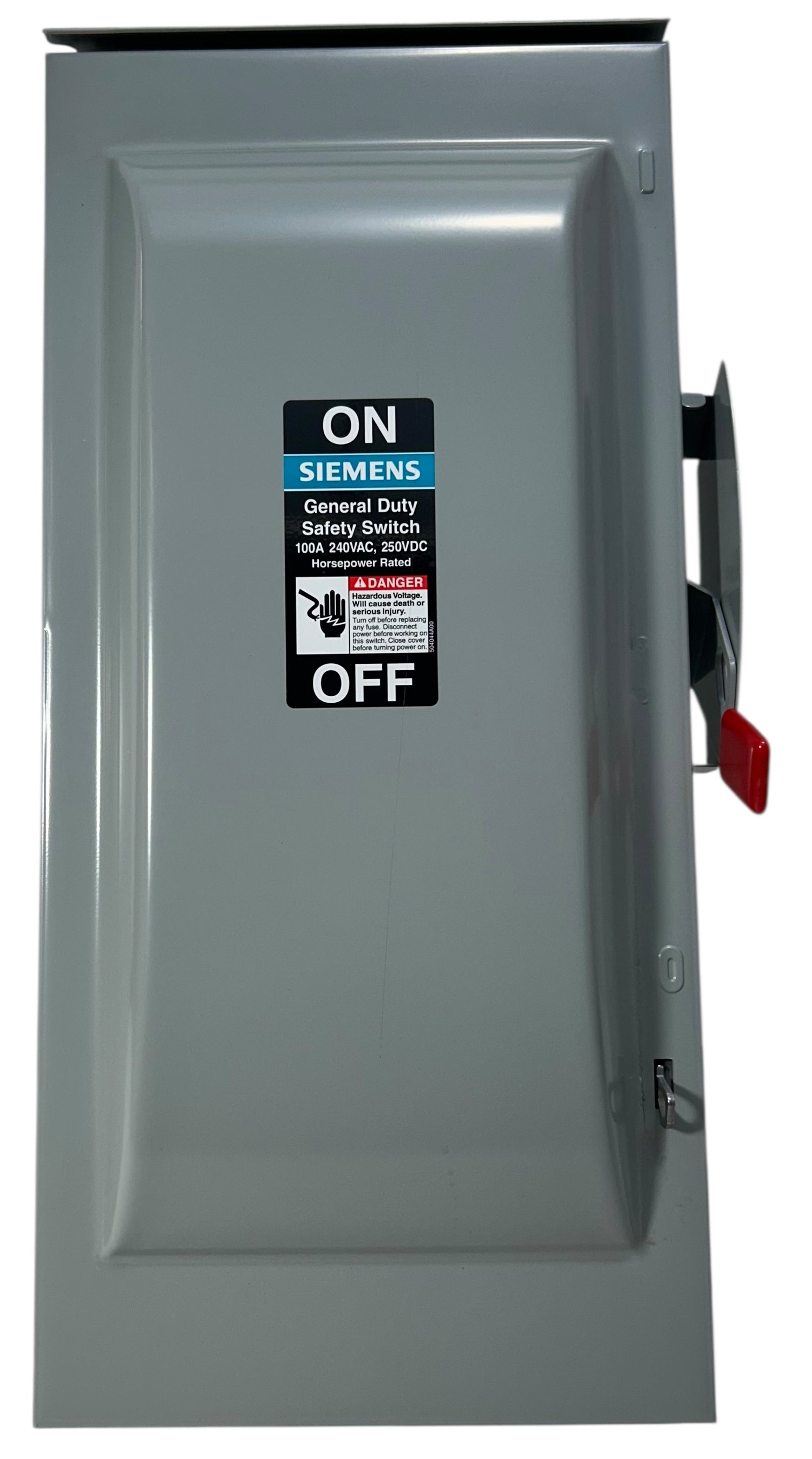

Siemens, GF223NR, 100A, 2‑Pole, Fusible Safety Switch, 240V, 3‑Wire, NEMA 3R Outdoor

The Siemens GF223NR is a 100 Amp, 2‑pole, 240‑Volt, 3‑wire, fusible general‑duty safety switch designed for reliable disconnecting means in residential and light commercial applications. Built with a NEMA 3R outdoor‑rated enclosure, it provides dependable protection against rain and sleet, making it ideal for exterior installations.

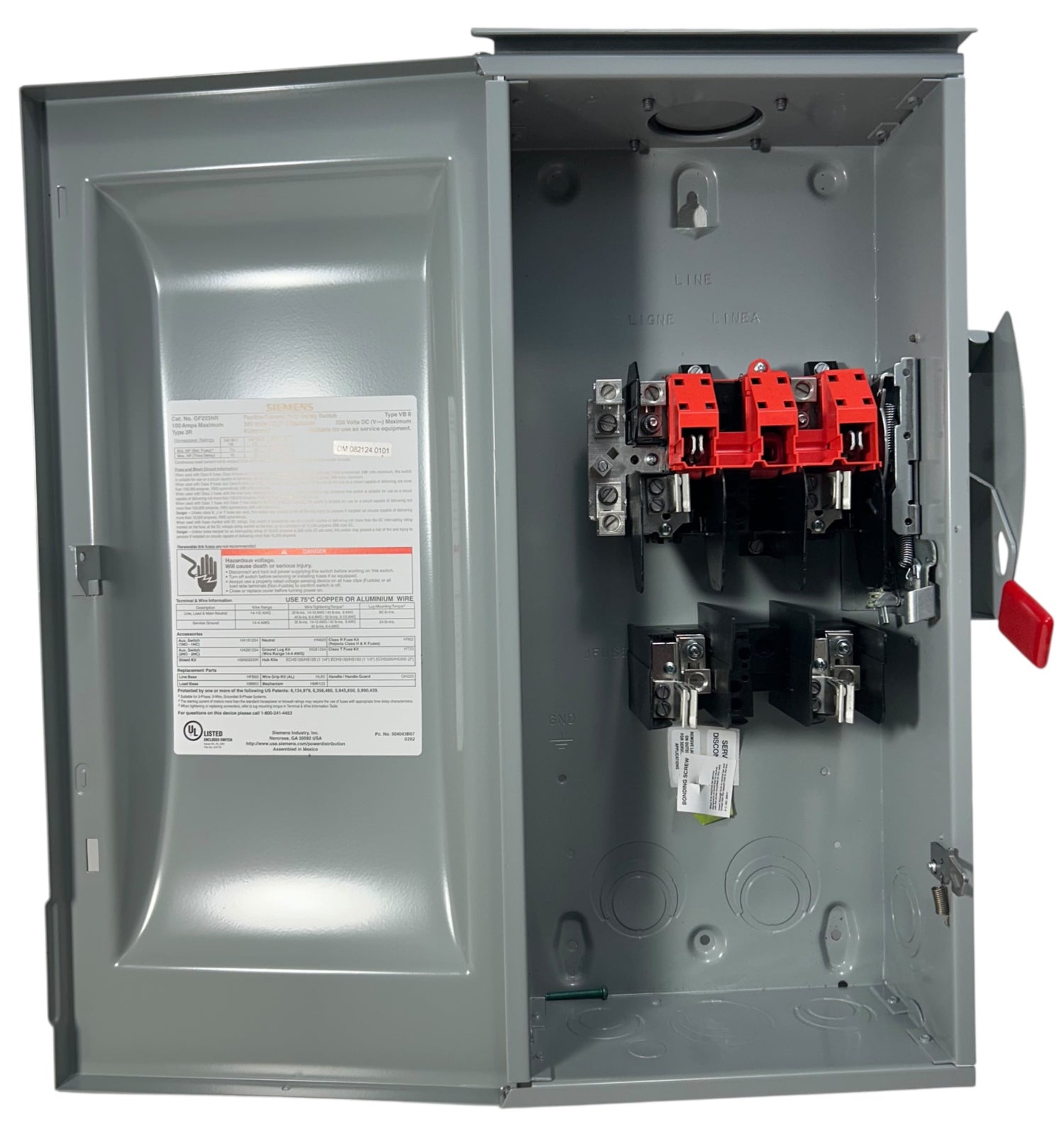

This switch features a quick‑make, quick‑break mechanism, high‑visibility ON/OFF indicators, and supports Class H, J, K, R, or T fuses for flexible overcurrent protection. It includes a solid neutral, making it suitable for service‑entrance applications.

Key Features

• 100 Amp general‑duty safety switch

• 2‑pole, 3‑wire configuration

• 240‑Volt AC rated

• Fusible design supporting Class H/J/K/R/T fuses

• NEMA 3R outdoor enclosure for rainproof protection

• Quick‑make, quick‑break operating mechanism

• Highly visible ON/OFF indication

• Solid neutral included (service‑entrance rated)

• Generous wiring gutters meeting NEC bend‑space requirements

Specifications

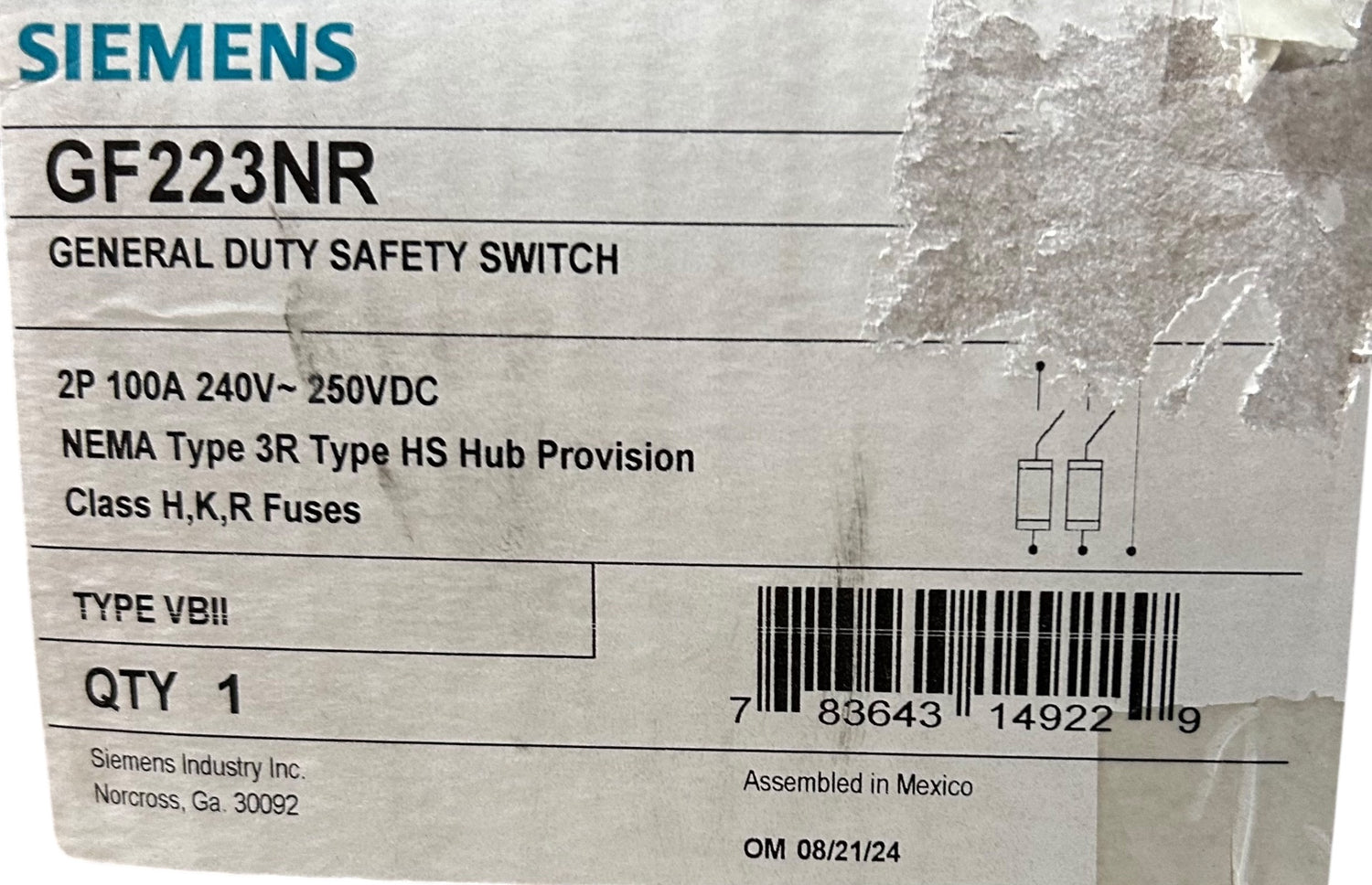

• Model: GF223NR

• Amperage: 100A

• Voltage: 240V AC / 250V DC max

• Poles: 2

• Wires: 3

• Fuse Type: Class H/J/K/R/T compatible

• Enclosure: NEMA 3R outdoor rated

• Dimensions: Approx. 23.46" H × 11.67" W × 8.7" D

• Horsepower Rating: Up to 30 HP depending on fuse type

• Application: Grounded B‑phase systems, motor loads, service disconnects

Common Uses

• Outdoor service disconnect

• HVAC, pump, and equipment disconnects

• Residential and commercial power distribution

• Applications requiring fusible overcurrent protection

Barcode: 783643149229
