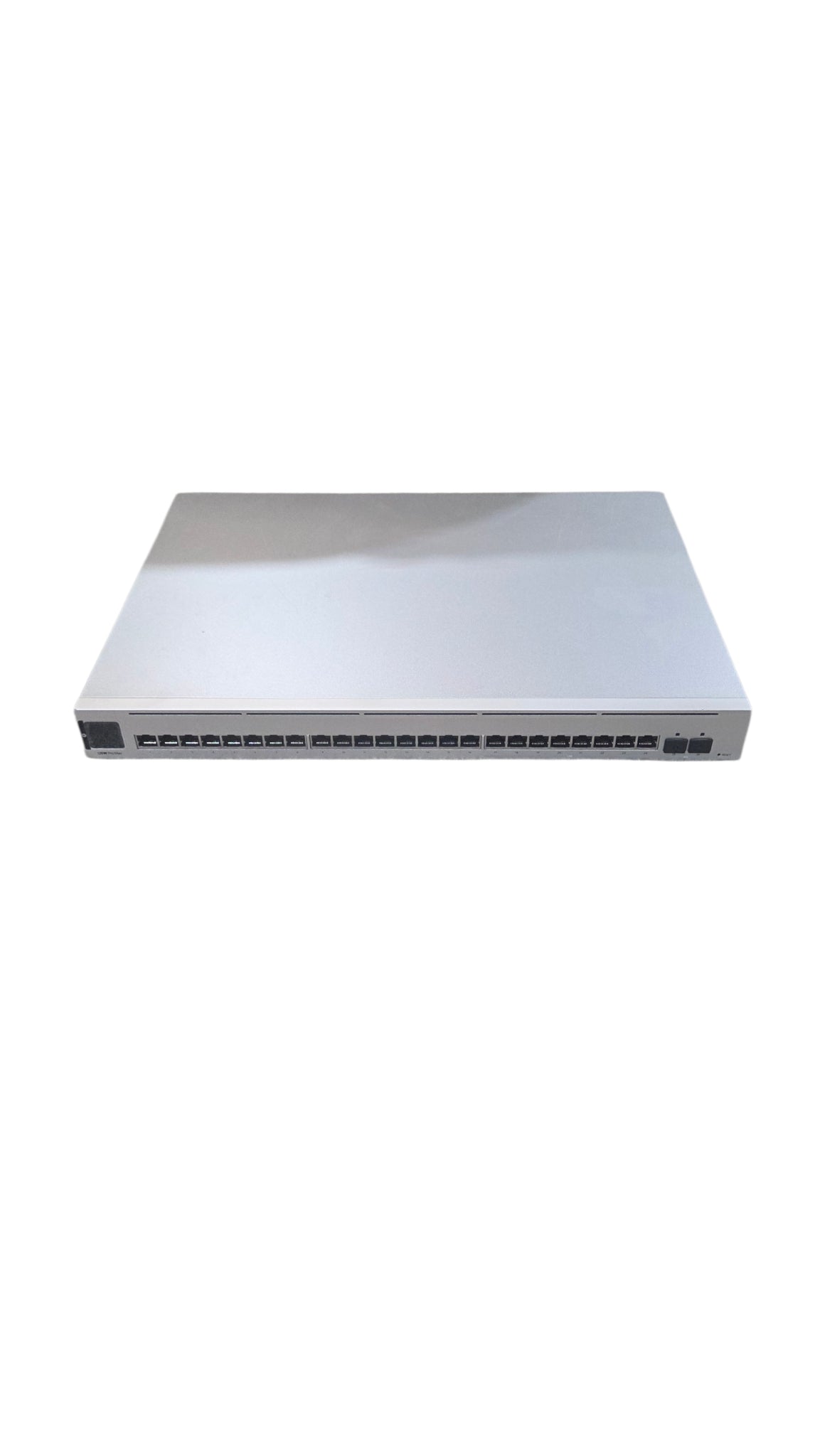

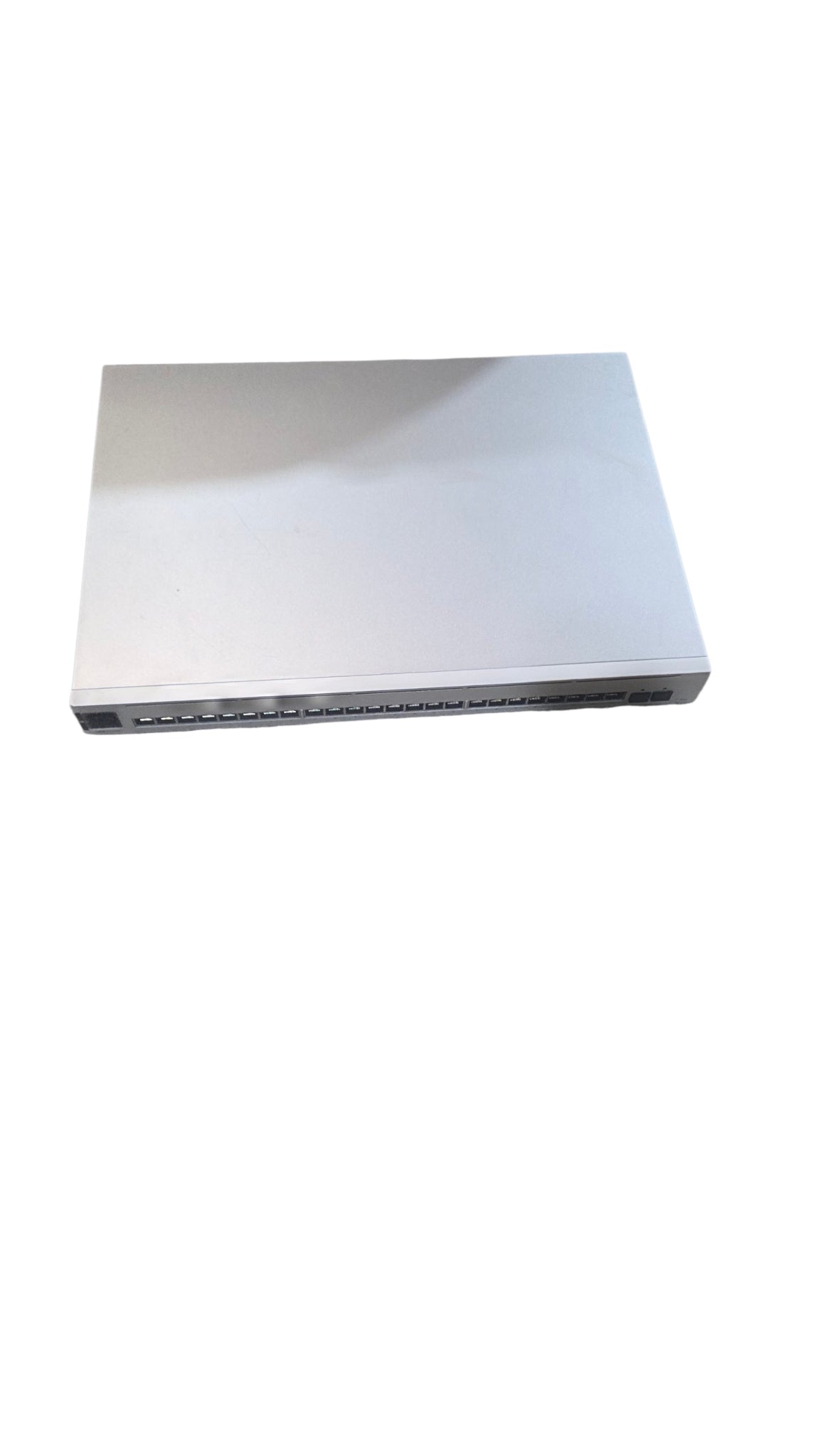

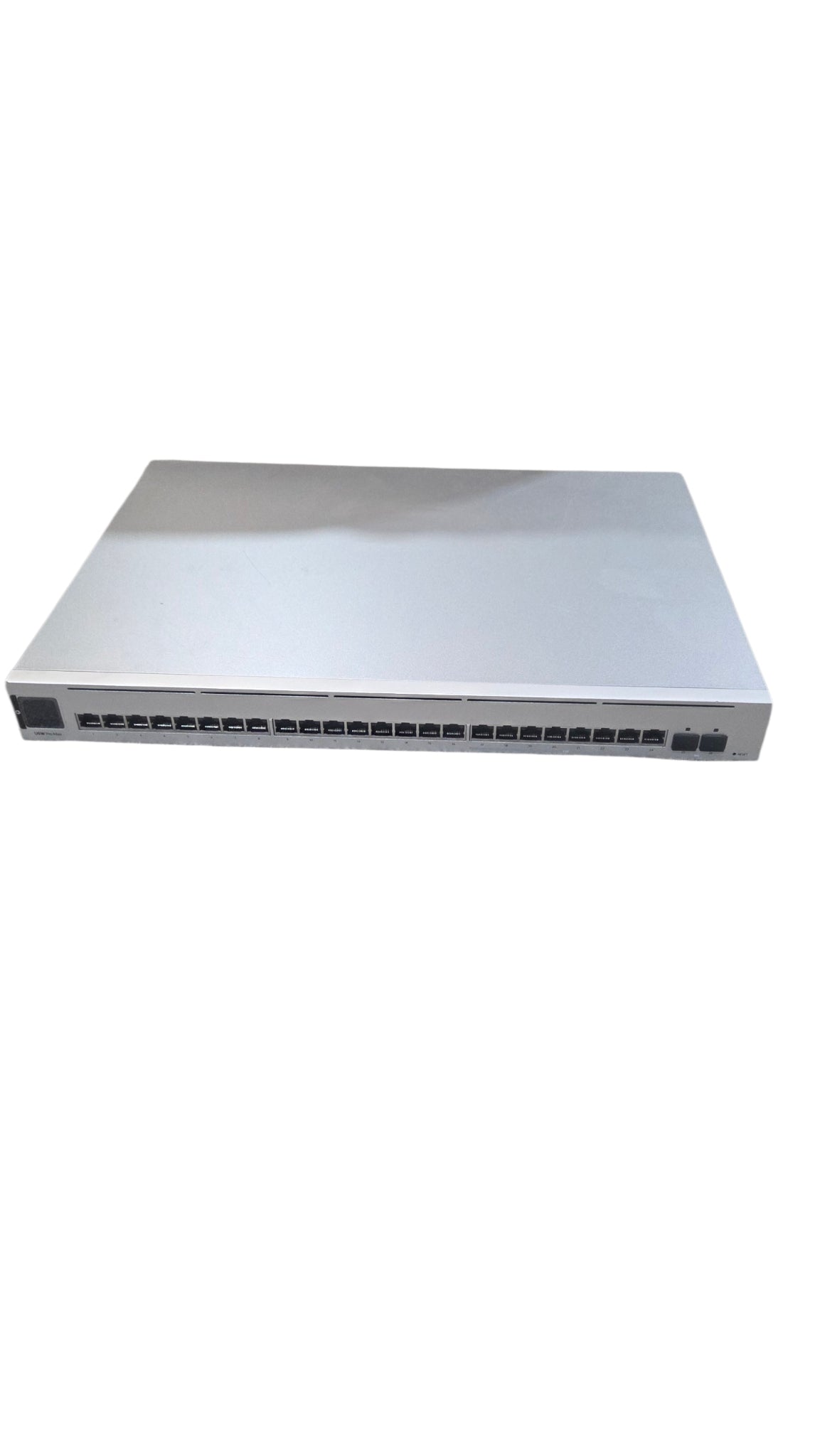

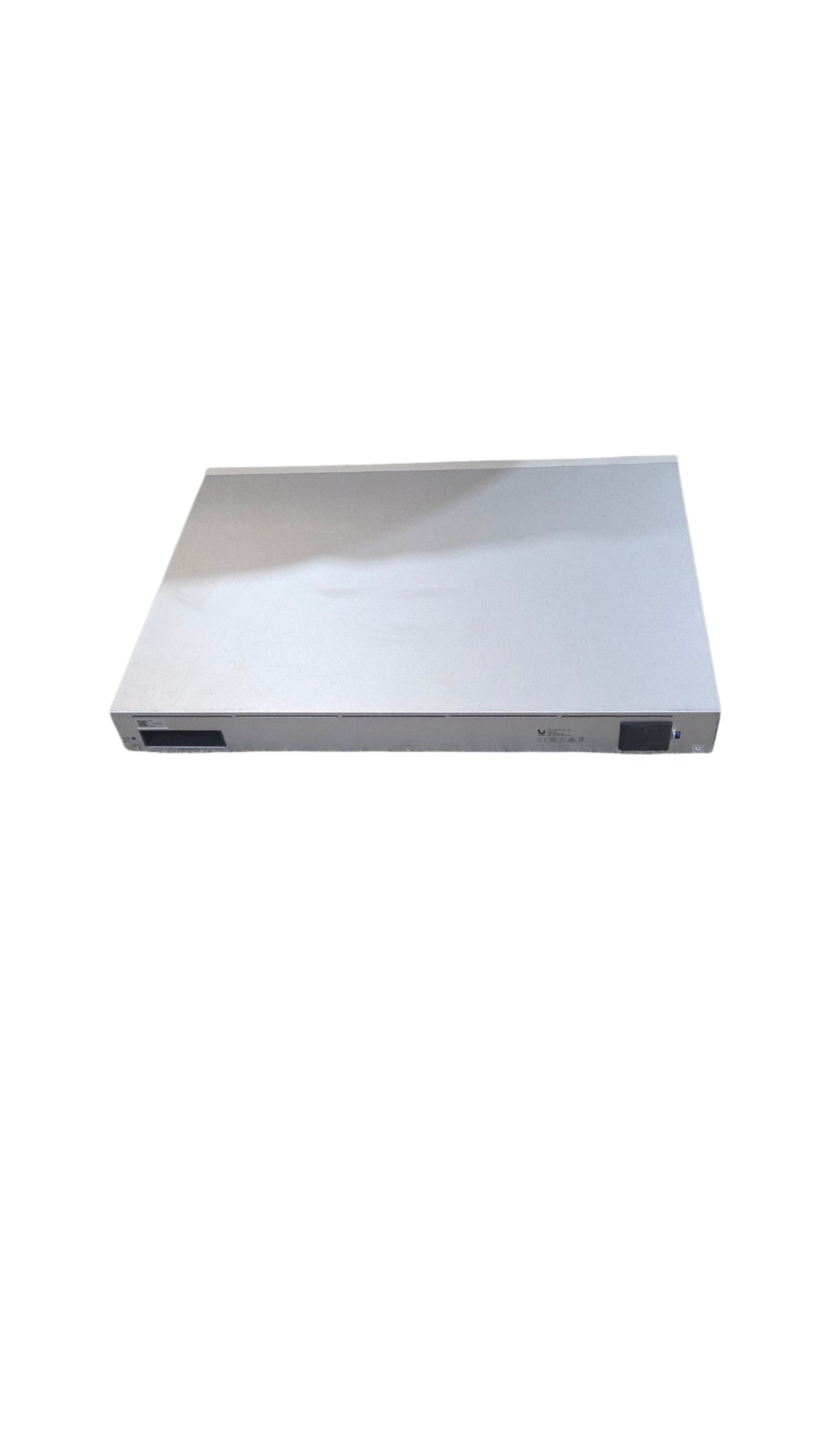

Ubiquiti - Pro Max 24-Port 2.5G/1G Managed Network Switch USW-Pro-Max-24 - Gray


Sale price $531.99 Regular price $759.99
Shipping calculated at checkout.

Pickup currently unavailable at Freeman Liquidators Annex

Description

The Ubiquiti Pro Max 24-Port Managed Switch (USW-Pro-Max-24) is a gray, Layer 3 managed network switch priced around $449. It features eight 2.5G RJ45 ports, sixteen 1G Gigabit Ethernet ports, two 10G SFP+ optical uplinks, Etherlighting port indicators, and a 1.3-inch touchscreen display. [1, 2, 3, 4]

Technical Specifications
Switching Capacity: 112 Gb/s (56 Gb/s non-blocking throughput)
Forwarding Rate: 83 Mpps
Management: UniFi Network platform
Power & Extras: DC power backup ready (USP-RPS input)
Port Configuration
16x 1G RJ45 Ethernet ports
8x 2.5G RJ45 Ethernet ports
2x 10G SFP+ slots
If you'd like, I can help you with:
  • Comparing this non-PoE model to the USW-Pro-Max-24-PoE version
  • Planning your SFP+ fiber/DAC uplink options
  • Reviewing Layer 3 routing setup in the UniFi controller

Dimensions
442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
Port Layout

1 GbE RJ45
16 (1G/100M/10M)
2.5 GbE RJ45
8 (2.5G/1G/100M/10M)
10G SFP+
2 (10G/1G)
Redundancy
DC Power Backup

Layer 3
Form Factor
Rack mount (1U)
Etherlighting™

Switching Capacity
112 Gbps
Total Non-Blocking Throughput
56 Gbps
Forwarding Rate
83 Mpps
Supported VLANs
1,000
MAC Address Table Size
16,000
IPv4 Static Routes
256
Packet Buffer Size
1.5 MB
Access Lists

IPv4
128
MAC
128

DHCP Server (Local Networks)
DHCP Relay
Inter-VLAN Routing (Local Networks)
Static Routing (Local Networks)

LACP Port Aggregation
STP & RSTP
QoS (DSCP)
Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
IGMP Snooping
802.1X Control
MAC-Based ACLs & Device Isolation
DHCP Snooping & Guarding
Egress Rate Limit
Flow Control
Storm Control
Multicast & Broadcast Rate Limiting
MAC Address Blocking
IP-Based ACLs & Network Isolation
MAC-Based Port Restriction
Port Isolation
Port Mirroring
Jumbo Frames
LLDP-MED
Voice VLAN
Loop Protection
Virtual Network Override

Max. Power Consumption
50W
Power Method
(1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 60W
Supported Voltage Range
100–240V AC
Management
Ethernet AR
Heat Dissipation
170.6 BTU/hr
Weight
Without mounting brackets: 4.2 kg (9.3 lb) With mounting brackets: 4.3 kg (9.5 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
400~1200 mm (15.7-47.2")
LCM Display
1.3" touchscreen
ESD Protection
Air: ± 16kV, contact: ± 12kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Etherlighting™

Ethernet
SFP+
NDAA Compliant
Certifications
CE, FCC, IC, Anatel: 06374-24-08356

Application Requirements

UniFi Network
Version 8.0.24 and later
