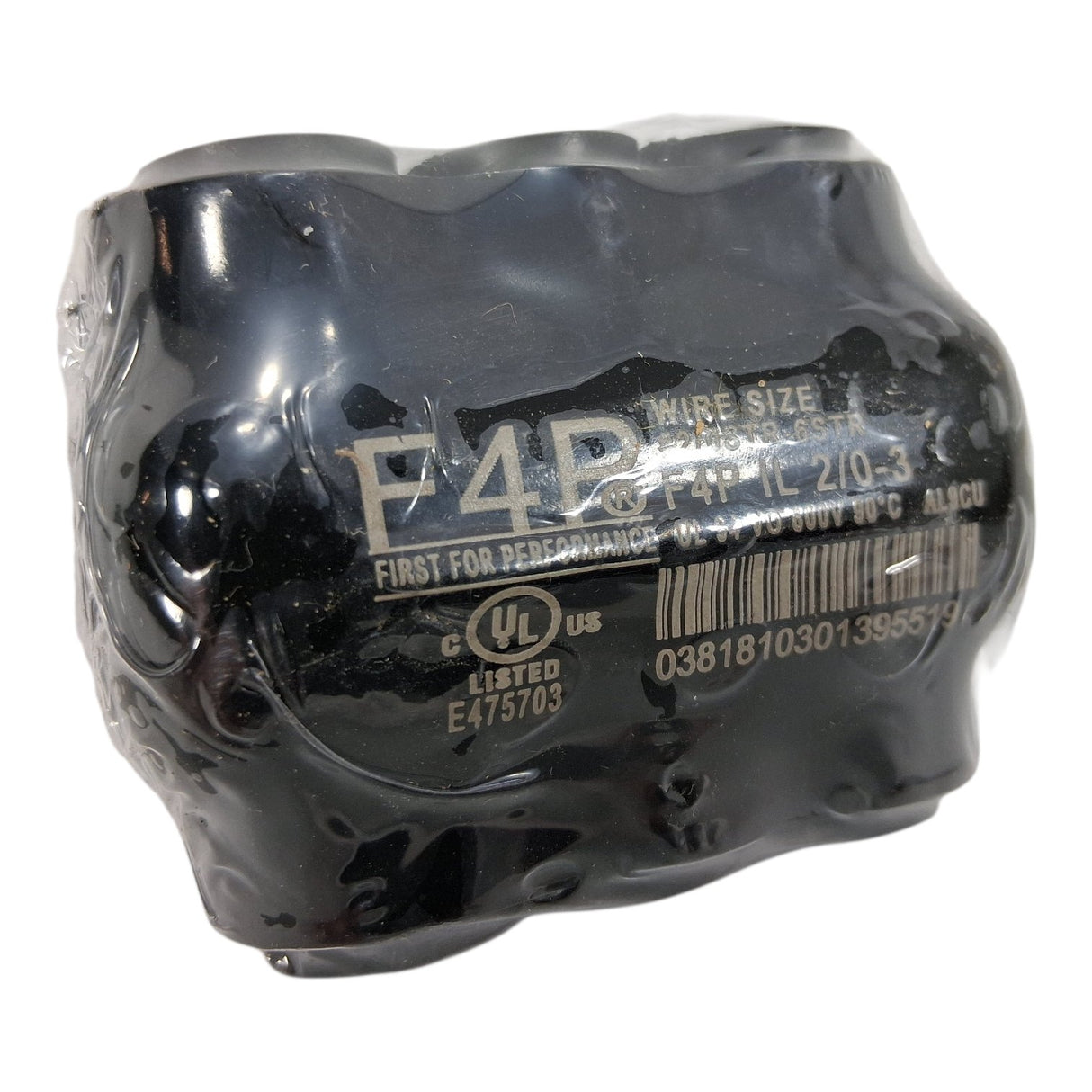

F4P IL2/0‑3 — 2/0 AWG 3‑Port Dual‑Entry UV‑Black Aluminum Lug

The F4P IL2/0‑3 is a 2/0 AWG, 3‑port, dual‑entry insulated aluminum lug designed for secure, high‑capacity wire terminations in commercial, industrial, and utility applications. Its UV‑black plastisol insulation provides long‑term outdoor durability, while the pre‑filled oxide inhibitor ensures clean, corrosion‑resistant conductor contact.

Rated for 600V / 90°C and compatible with both copper and aluminum conductors, this multi‑tap lug is ideal for splicing, tapping, and distribution in service equipment, solar installations, and heavy‑load electrical systems.

Key Features

• 2/0 AWG 3‑port dual‑entry lug

• UV‑black plastisol insulation for outdoor durability

• Pre‑filled with anti‑oxidation compound for corrosion resistance

• Dual‑rated for copper and aluminum conductors

• No taping required — fully insulated body

• UL listed and meets ANSI C119.4 requirements

• Rated 600V / 90°C for AC or DC systems

Specifications

• Model: IL2/0‑3

• Conductor Range: 2/0–3 AWG

• Ports: 3

• Entry Style: Dual‑entry

• Material: High‑conductivity aluminum

• Insulation: UV‑black plastisol

• Voltage Rating: 600V

• Temperature Rating: 90°C

• Certifications: UL 486A/486B, ANSI C119.4

Common Uses

• Service entrance and distribution

• Solar PV combiner and tap connections

• Commercial and industrial splicing

• Aluminum‑to‑copper transitions

• Outdoor electrical equipment

Barcode: 0381810301395519
