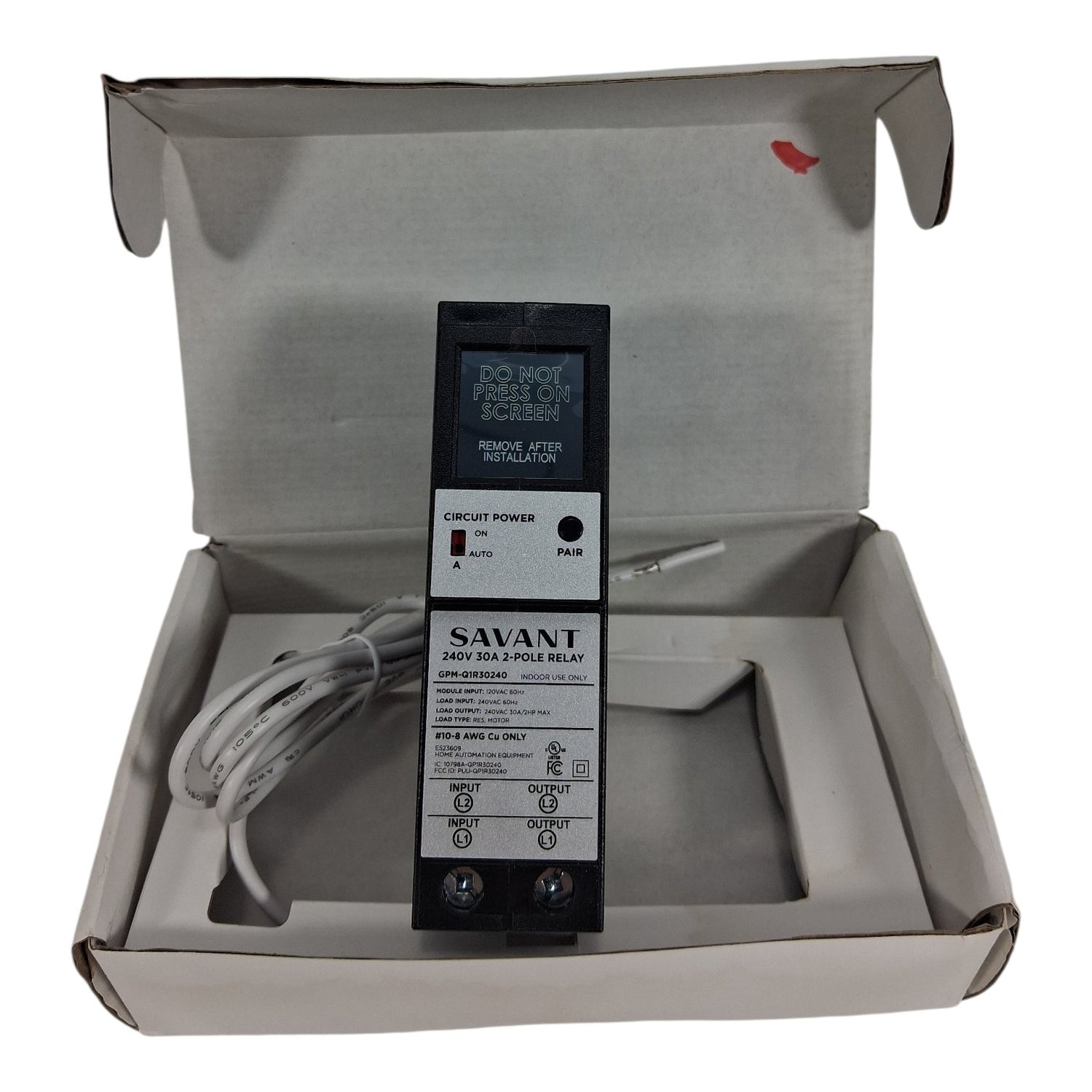

Savant GPM‑Q1R30240‑21 — 30A 2‑Pole 240V Relay Module w/ Current Transformer & Pigtail (QO‑Compatible)

The Savant GPM‑Q1R30240‑21 is a 30‑amp, 2‑pole, 240‑volt smart relay module designed for Square D QO‑style load centers. With a built‑in current transformer and pigtail neutral, this module provides precise energy monitoring and reliable switching for high‑demand circuits such as HVAC equipment, water heaters, EV chargers, and sub‑systems.

This module integrates seamlessly with Savant Power Systems and Savant Pro environments, offering automation, load shedding, and real‑time energy insights through the Savant Power & Light App or RacePoint Blueprint.

Key Features

• 30A, 2‑pole, 240V relay module

• Built‑in current transformer for revenue‑grade monitoring

• Pigtail neutral for QO‑style load centers

• Controls loads up to 7200 VA

• ±0.5% accuracy energy monitoring (1‑second sample rate)

• Compatible with Savant Power Director, Panel Bridge Controller, and Energy Monitor

• Deployment via Savant Power & Light App or RacePoint Blueprint

• Indoor use (unless installed in NEMA 3R enclosure)

Specifications

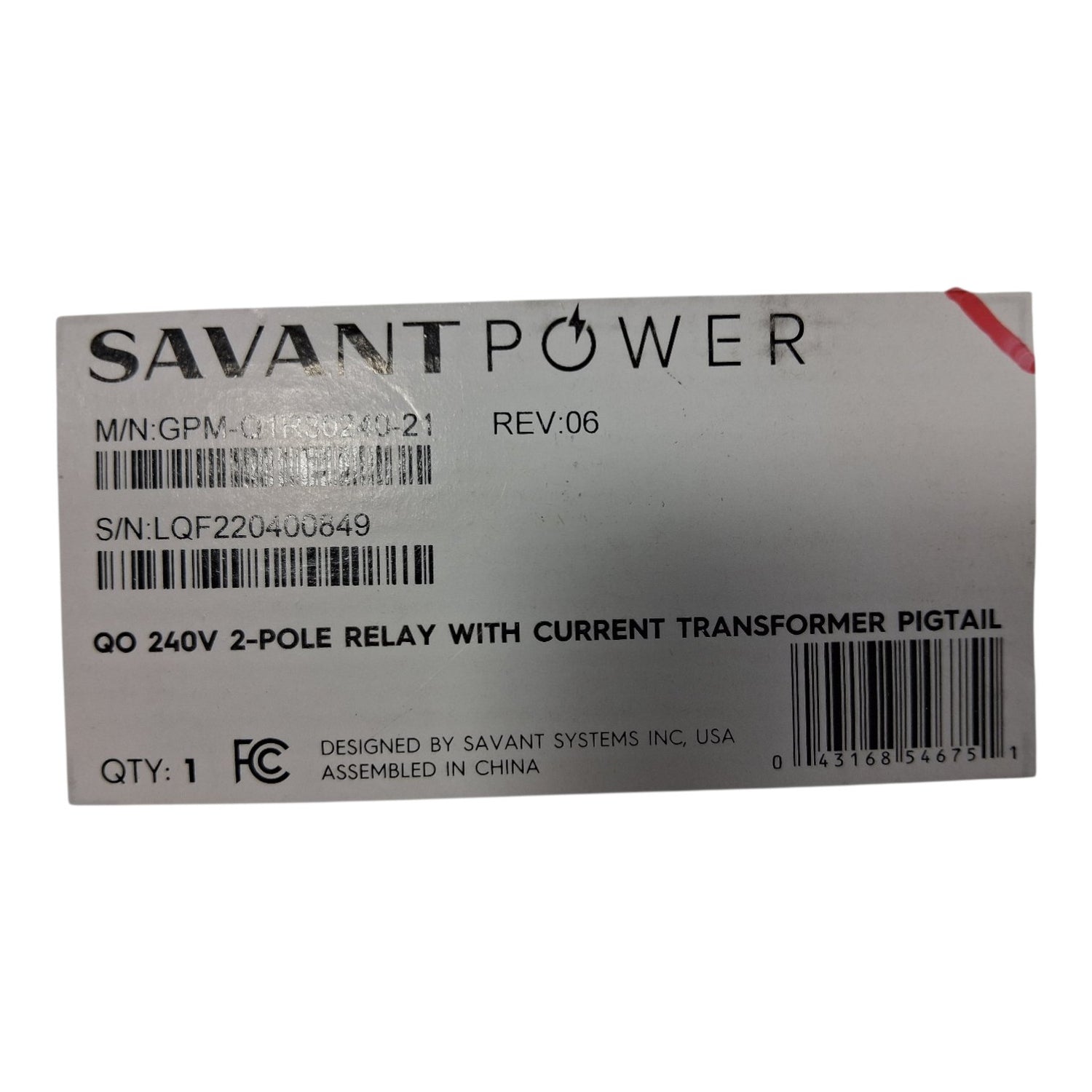

• Model: GPM‑Q1R30240‑21

• Voltage: 240V AC

• Amperage: 30A

• Poles: 2

• Load Rating: 7200 VA

• Environmental Temperature: 32°–104°F (0°–40°C)

• Humidity: 5–85% non‑condensing

• Dimensions: 4.97" × 1.45" × 1.71" (module)

• Weight: 0.5 lbs (module)

Common Uses

• HVAC compressors

• Water heaters

• EV chargers

• Sub‑panel control

• Smart load shedding

• Whole‑home energy automation

• Weight: 0.75 lb
