Savant GPM‑Q2R20120‑21 — QO Dual 20A Relay Module w/ Current Transformer & Pigtail

The Savant GPM‑Q2R20120‑21 is a dual‑channel 20‑amp, 120‑volt smart relay module designed specifically for Square D QO‑style load centers. Each module controls two independent 20A circuits, with built‑in current transformers for revenue‑grade energy monitoring and a pigtail neutral for compatibility with non‑plug‑on‑neutral QO panels.

This module integrates seamlessly with Savant Power Systems, enabling automation, load shedding, scheduling, and real‑time energy insights through the Savant Power & Light App or RacePoint Blueprint.

Key Features

• Dual 20A smart relay module (two independent 20A circuits)

• 120V AC operation

• Built‑in current transformers for ±0.5% accuracy monitoring

• Pigtail neutral for QO‑style load centers

• Controls loads up to 2400 VA per channel

• Bluetooth Low Energy for commissioning

• Manual circuit power switches for local override

• Compatible with Savant Power Director, Panel Bridge Controller, and Energy Monitor

Specifications

• Model: GPM‑Q2R20120‑21

• Voltage: 120V AC

• Amperage: 20A × 2 circuits

• Load Rating: 2400 VA per channel

• Environmental Temperature: –22°F to 122°F (–30°C to +50°C)

• Humidity: Up to 90% non‑condensing

• Dimensions: 4.97" × 1.45" × 2.60"

• Weight: 0.5 lbs

Common Uses

• Lighting circuits

• Kitchen appliance circuits

• General‑purpose outlets

• Smart load shedding

• Energy monitoring and automation

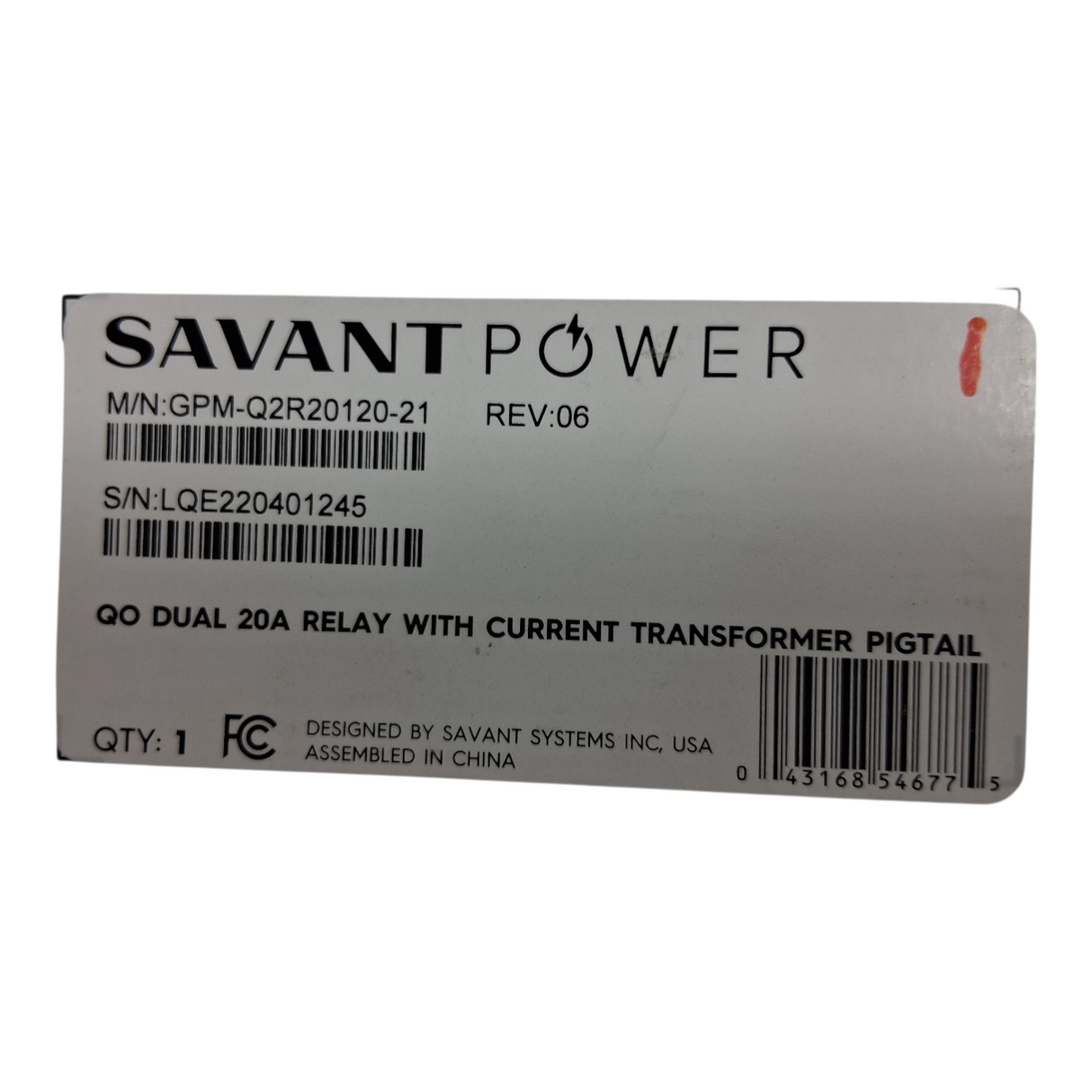

Barcode: GPM-Q2R20120-21
