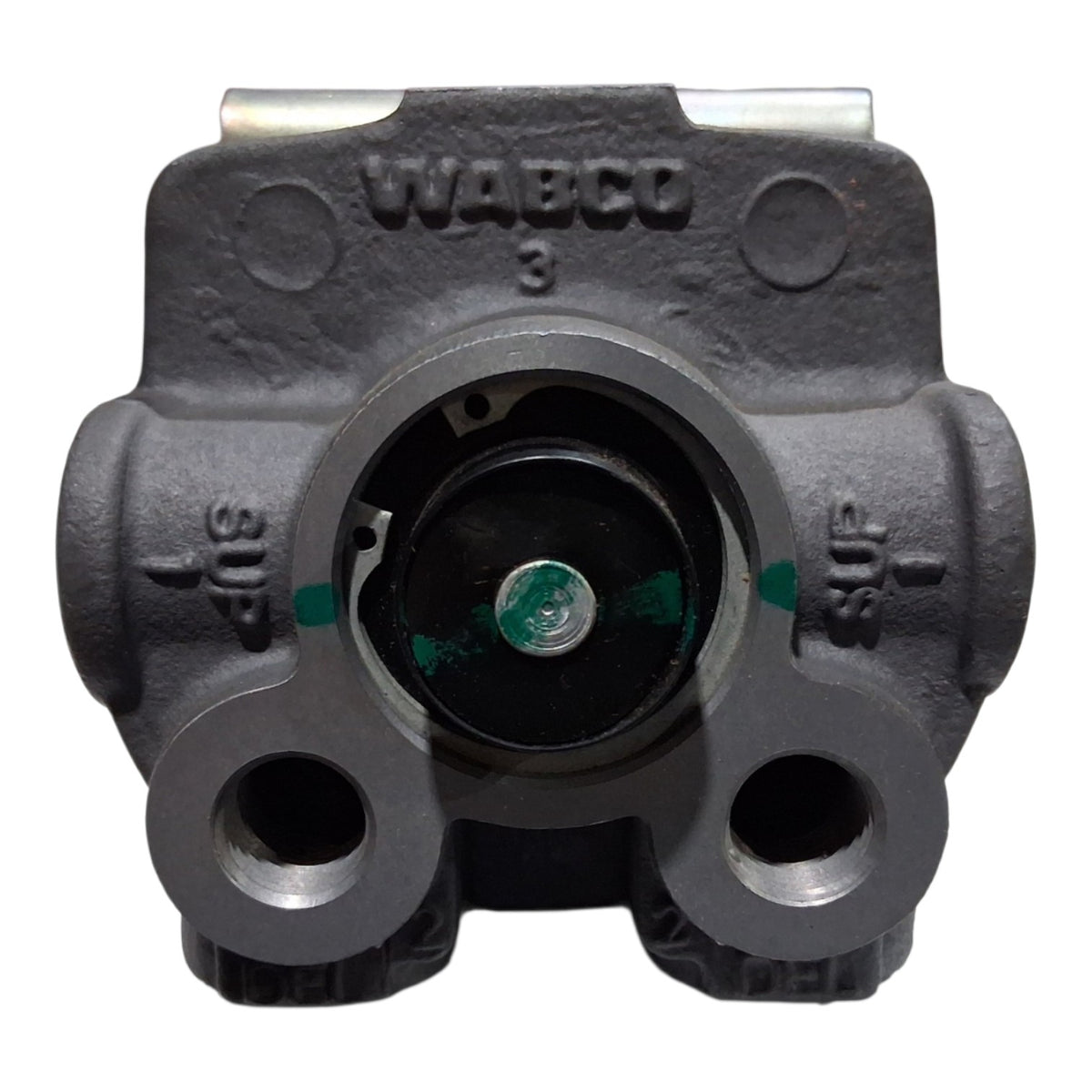

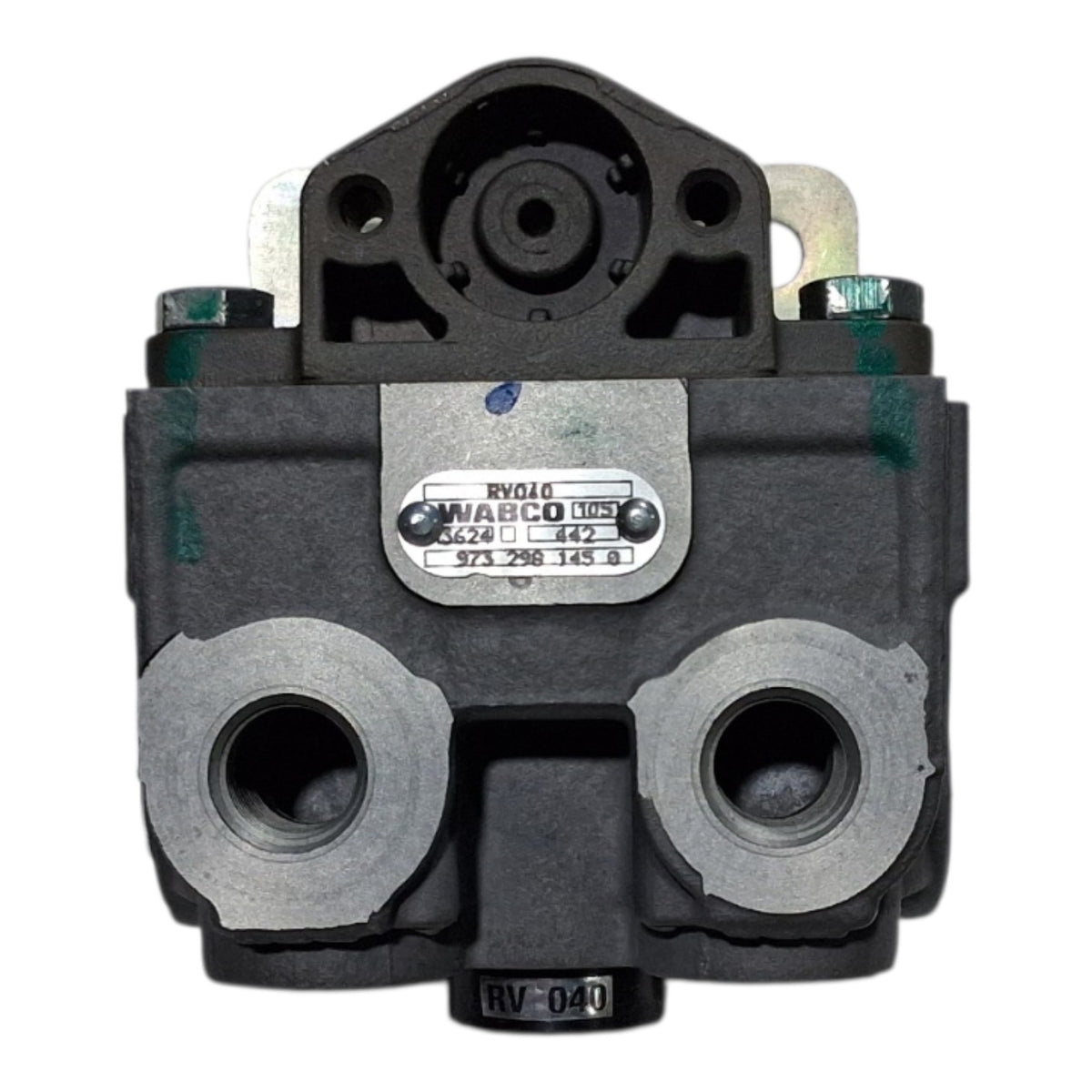

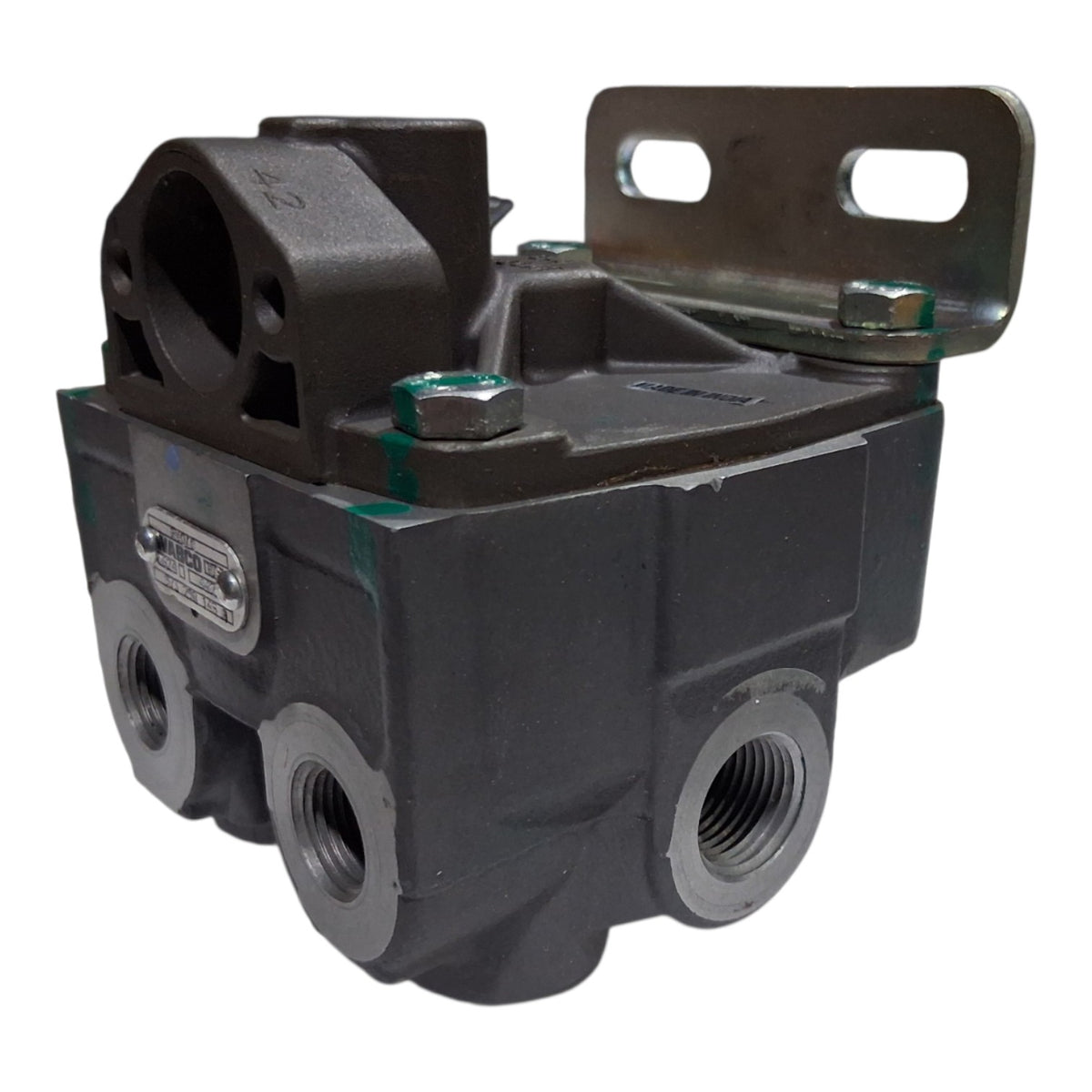

WABCO Premium OE Air Brake Pressure Reduction Relay Valve 9732981450 *** NEW, NO BOX***


Sale price $171.50 Regular price $249.99
Shipping calculated at checkout.

Pickup available at Wall

Usually ready in 24 hours

Description

The WABCO Air Brake Pressure Reduction Relay Valve 9732981450 is a premium, factory-certified original equipment pneumatic control component designed for heavy-duty commercial air brake systems. This heavy-duty relay valve acts as an accelerated signal booster, speeding up brake application by instantly directing high-volume compressed air from local reservoirs directly to the brake chambers. By initiating response cycles closer to the wheels, it effectively eliminates structural pneumatic delivery lags from distant dash foot-valves. Engineered to OE specifications with an integrated 1:1 regulating ratio, it cycles automatically and dynamically handles severe stop-and-go stresses without requiring adjustments. Swapping a worn or sluggish relay valve ensures crisp, synchronized braking response across all axles, reducing stopping distances and maximizing vehicle safety. [1, 2, 3]
⭐ Key Features & Benefits
  • ⚡ Genuine WABCO OEM Engineering — Fabricated to original equipment standards for superior diagnostic compatibility, precise pressure scaling, and maximum road endurance. [1, 2]
  • ⚡ Ultra-Fast Brake Timing — Delivers rapid, zero-lag pressure distribution to brake chambers to establish optimized truck and trailer stopping power. [1, 2]
  • ⚡ Specialized Pressure Reduction Design — Built with a 1:1 regulating ratio, 3.92 psi opening threshold, and 4.35 psi predominance profile for balanced system actuation. [1]
  • ⚡ Precision NPTF Dry Seal Threading — Features factory-machined 1/2", 3/8", and 1/4" NPTF threaded ports to secure a completely leak-free pneumatic seal. [1]
  • ⚡ Severe Weather Durability — Industrial-grade metal housing with high-spec internal components rated to perform smoothly across a radical -40°C to +80°C thermal envelope. [1, 2]
🔧 Uses / Applications
  • ⚙️ Servicing primary pneumatic air brake control plumbing on heavy-duty commercial semi-trucks, tractors, and multi-axle trailers.
  • ⚙️ Direct field-replacement for leaking, contaminated, or sluggish relay valves causing slow service-brake release or application lag.
  • ⚙️ Restoring legal operating safety bounds and eliminating dangerous diagnostic pneumatic pressure imbalances during fleet overhauls.
  • ⚙️ Premium replacement component option for professional heavy-duty service bays, transit maintenance centers, and owner-operators. [1, 2, 3]
📊 Technical Specifications
Specification [1, 2, 3, 4] Detail
Part Type
Air Brake Pressure Reduction Relay Valve
Position
Frame Mounted / Near Brake Axle Reservoir
Part Number
9732981450 / 973 298 145 0
Material
Precision Die-Cast Metal Alloy Assembly
Fitment
Universal Heavy-Duty Trucks, Semis, and Commercial Trailers
Condition
Brand New
Installation
Direct-Fit Replacement / 2-Point Mounting Bracket (24.5x10mm)
🔄 Cross‑Reference / Interchange Table
Manufacturer [1, 2, 3, 4, 5, 6] Equivalent Part Number
WABCO / ZF (OEM)
9732981450, 973-298-145-0
Meritor
9732981450, S9732981450
TruckPro
WN9732981450
Aurora Parts
WBC9732981450
GTIN / UPC
04057876209484 / 193133450283
Additional Notes
Port Threads: Port 1 = 1/2"-14 NPTF; Port 2 = 3/8"-18 NPTF; Port 4 = 1/4"-18 NPTF. Maximum operating pressure is 11.0 bar (159.54 psi).
