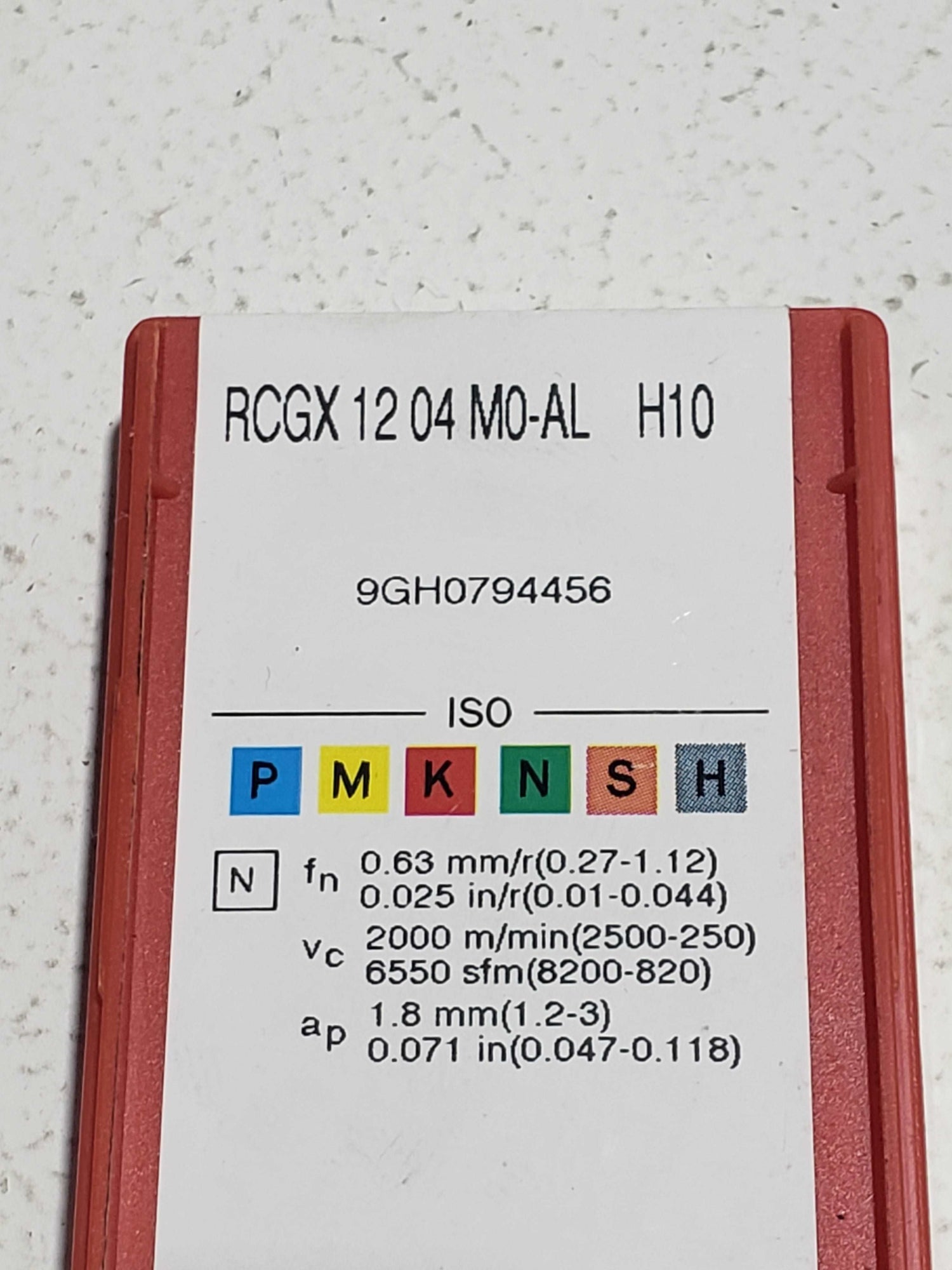

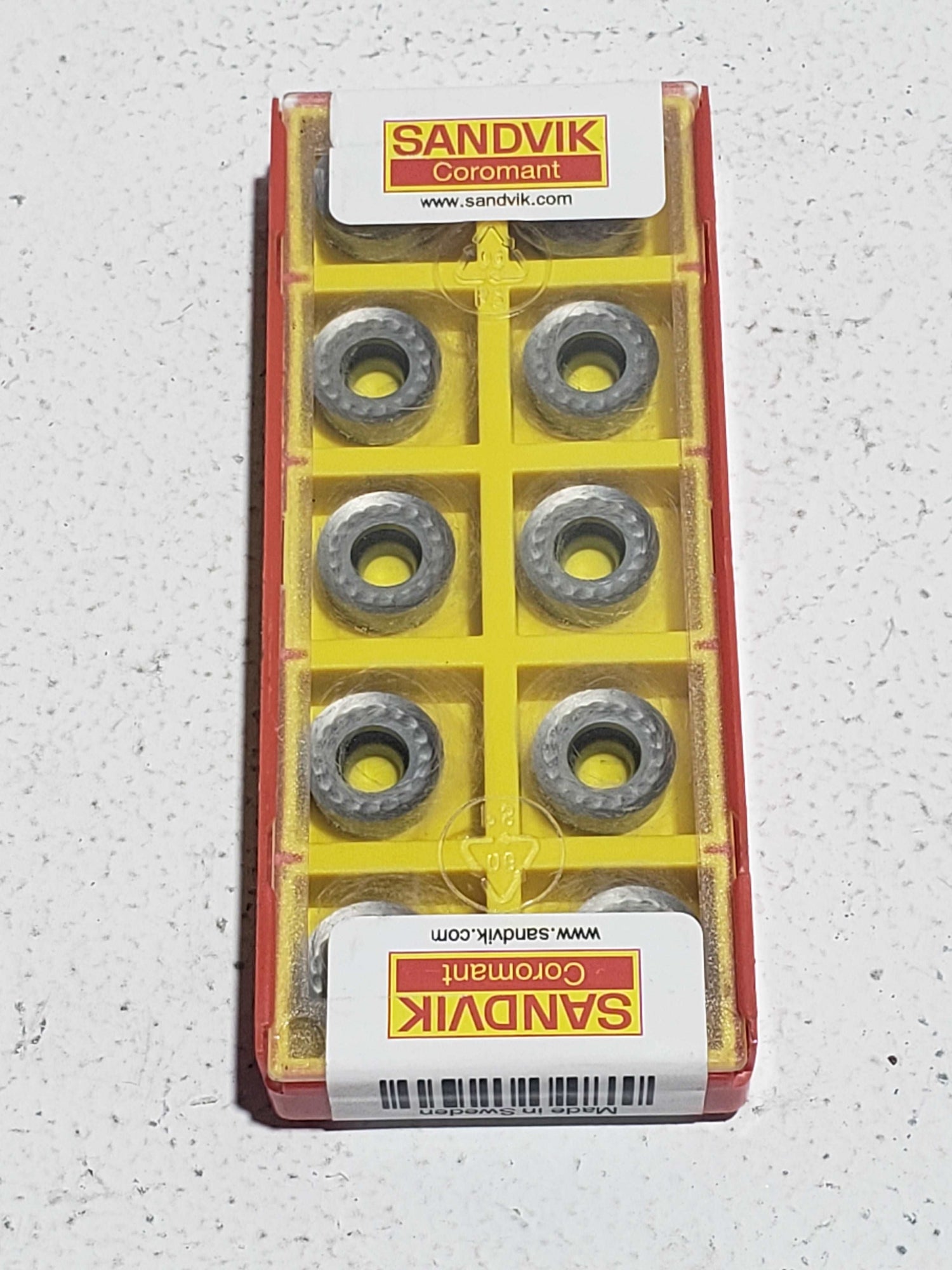

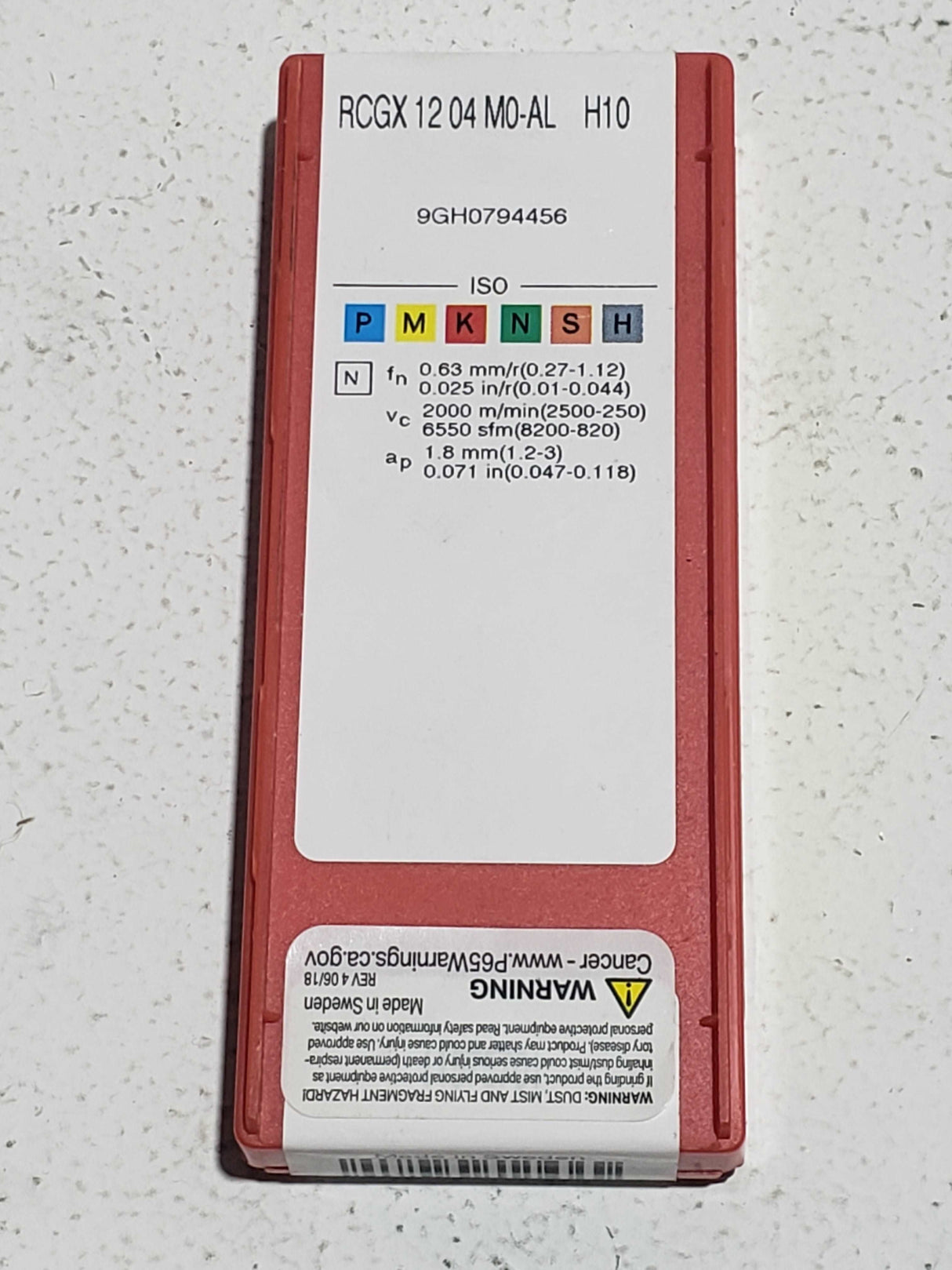

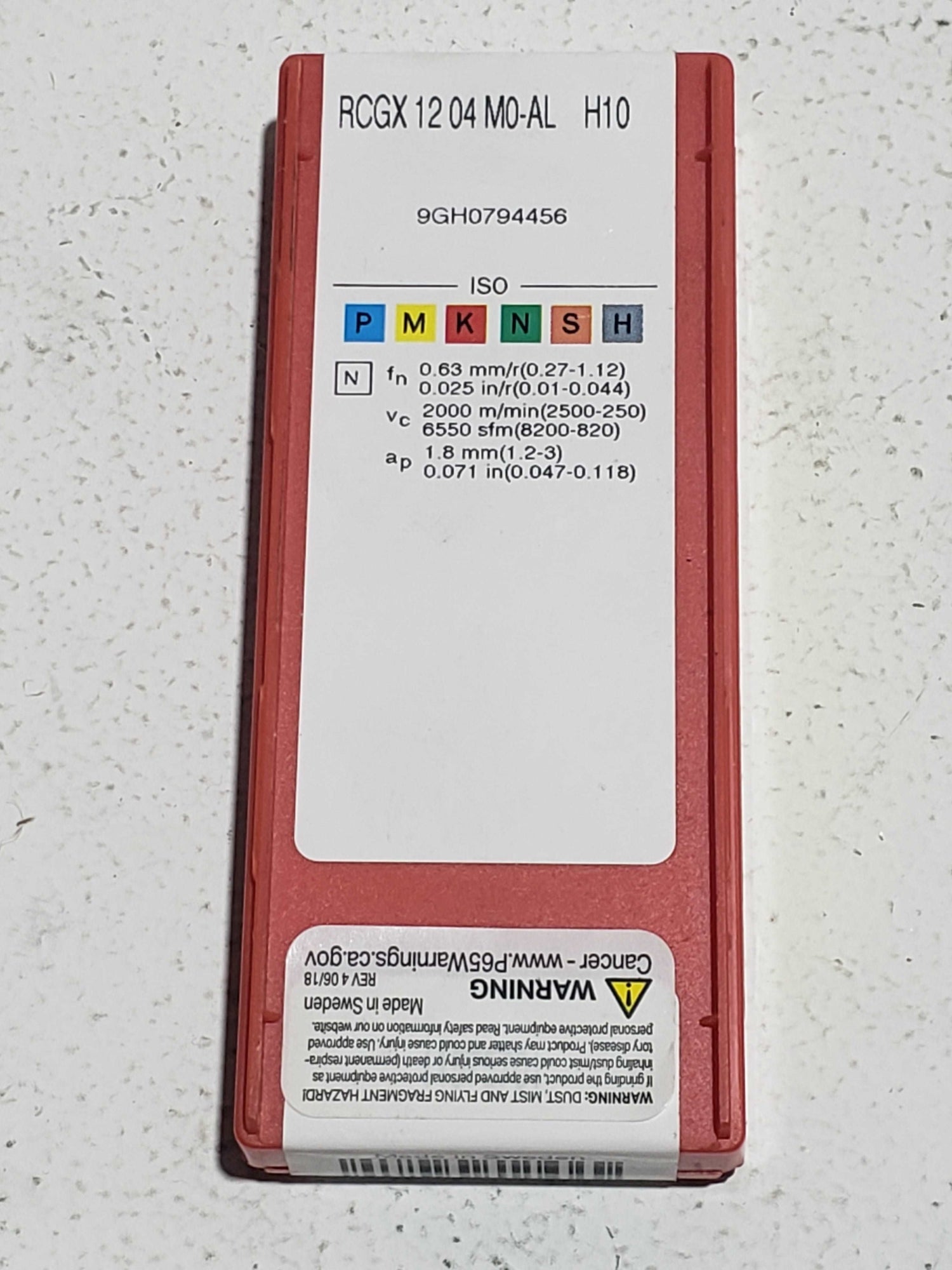

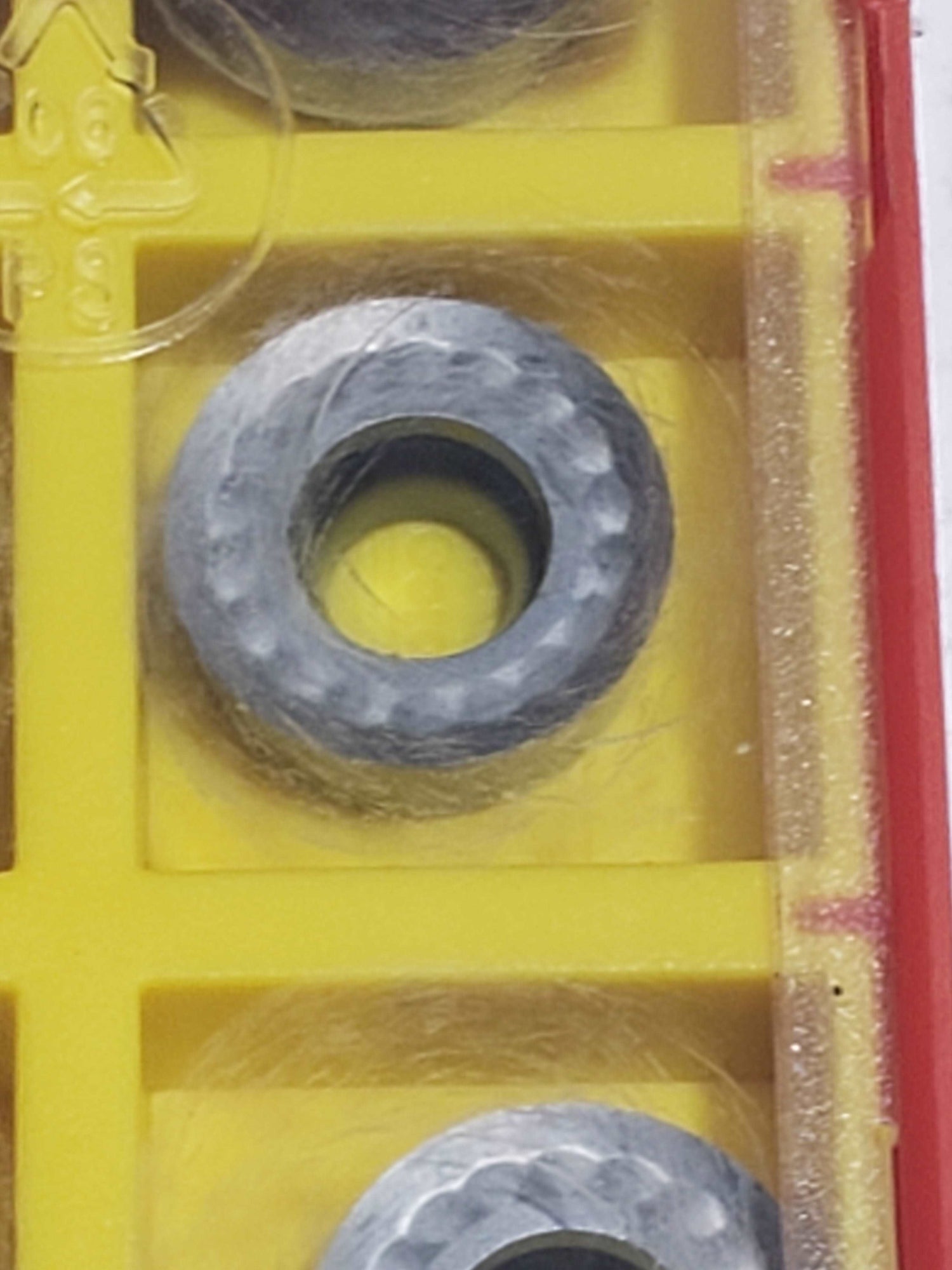

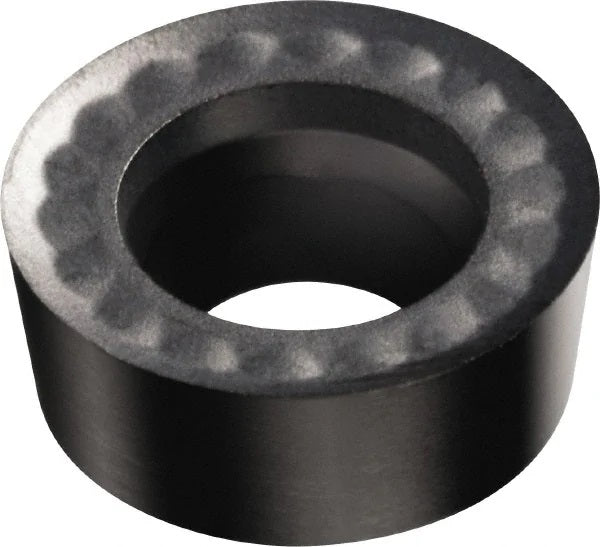

(10 Pack) Sandvik CoromantRCGX1204M0 AL Grade H10 Carbide Turning Insert
Uncoated, Round, 1/2" Inscr Circle, 3/16" Thick
MSC Part #: 49450869
Mfr Part #: 5740069
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics, and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Specs
| Insert Style | RCGX |
| Insert Size | 1204M0 |
| Material | Carbide |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1874 |
| Thickness (mm) | 4.76 |
| Manufacturer's Grade | H10 |
| Coating | Uncoated |
| Chip Breaker | AL |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | RCGX1204M0ALH10 |
| Relief Angle | 7 |
| Manufacturers Catalog Number | 5740069 |
| Primary Workpiece Material | N |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Material | Carbide |
| Cutting Direction | Neutral |
| Coating | Uncoated |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Material | Carbide |
| Manufacturer's Grade | H10 |
| Insert Style | RCGX |
| Insert Size | 1204M0 |
| Thickness (mm) | 4.76 |
| Thickness (Decimal Inch) | 0.1874 |
| Shape | Round |
| Coating | Uncoated |
| Thickness (Decimal Inch) | 0.1874 |
| Material | Carbide |
| Manufacturer's Grade | H10 |
| Insert Style | RCGX |
| Insert Size | 1204M0 |
| Series | CoroTurn 107 |
| Cutting Direction | Neutral |
| Series | CoroTurn 107 |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Insert Holding Method | Screw |
| Shape | Round |
