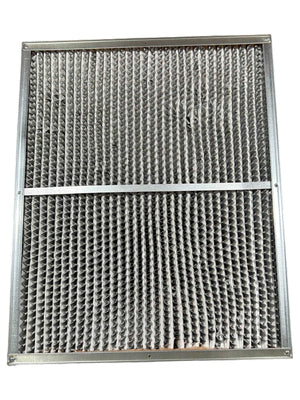

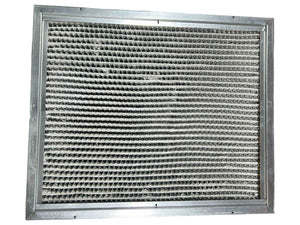

Air Handler, 2GGX6, Cartridge Air Filter, 20x24x6 Nominal Filter Size, Microfiber, Steel, Single Header
This 2PK Air Handler Cartridge Air Filter is designed with a 20x24x6 Nominal Size made with steel and microfiber for reliable efficiency. Single header for easy installation, perfect for home and office air quality.
Brand: AIR HANDLER
Air Filter Item: Cartridge Air Filter
Style - Air Filters: Box
Performance Rating: MERV 14
Nominal Filter Size: 20x24x6
Filter Efficiency - Air Filters: 95 %
Media Material: Microfiber
Frame or Header Material: Steel
Air Filter Header Type: Single Header
Gasket Location: None
Gasket Material: None
Media Color: White
Media Area: 50 sq ft
Media Separator Construction: Aluminum
Filters Out: Cooking Oil; Copier Toner; Droplet Nuclei (Sneeze); Insecticide Dust; MERV 13-16 All Bacteria; Most Face Power; Most Smoke; Most Tobacco Smoke; Paint Pigments
Removes Particles Down To: 0.3 to 1.0 micron
Air Flow @ 300 fpm: 1,000 cfm
Air Flow @ 500 fpm: 1,700 cfm
Recommended Final Resistance: 1.5 in wc
Max. Temp.: 250 °F
Max. Velocity: 625 fpm
Nominal Height: 20 in
Nominal Width: 24 in
Nominal Depth: 6 in
Actual Filter Size: 23-3/8 in x 19-3/8 in x 5-1/2 in
Actual Height: 23-3/8 in
Actual Width: 19-3/8 in
Actual Depth: 5-1/2 in
Standards: UL Classified
Collapsible: No
