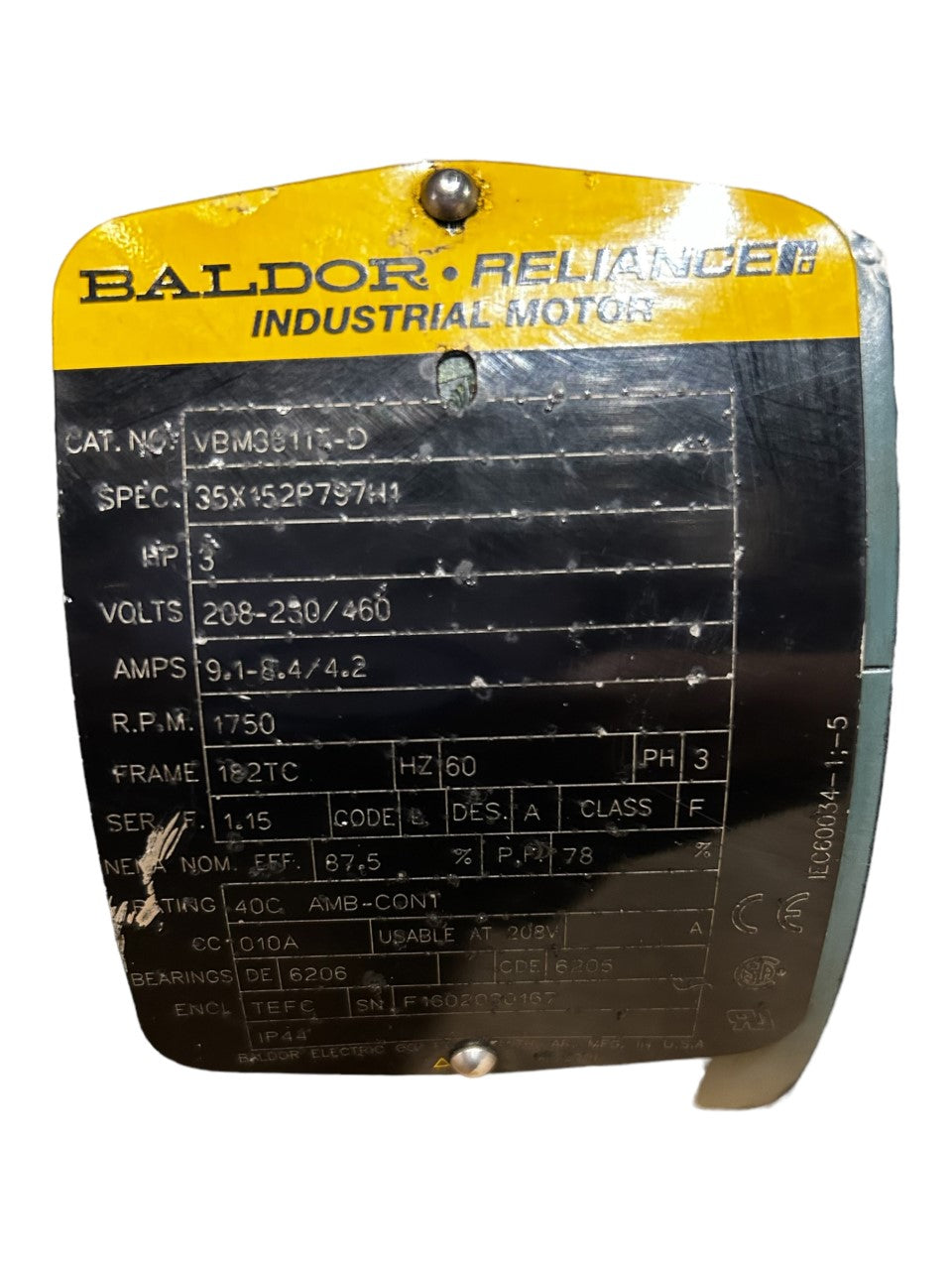

Catalog Number-VBM3611T-D
Enclosure-TEFC
Frame-182TC
Frame Material- Steel
Frequency-60.00 Hz
Motor Letter Type-Three Phase
Output @ Frequency-3.000 HP @ 60 HZ
Phase3
Synchronous Speed @ Frequency-1800 RPM @ 60 HZ
Voltage @ Frequency460.0 V @ 60 HZ
230.0 V @ 60 HZ
208.0 V @ 60 HZ
XP Class and Group-None
XP Division-Not Applicable
Agency Approvals-CE
CSA
UR
Ambient Temperature-40 °C
Auxillary Box-No Auxillary Box
Auxillary Box Lead Termination-None
Base Indicator-No Mounting
Bearing Grease Type-Polyrex EM (-20F +300F)
Blower-None

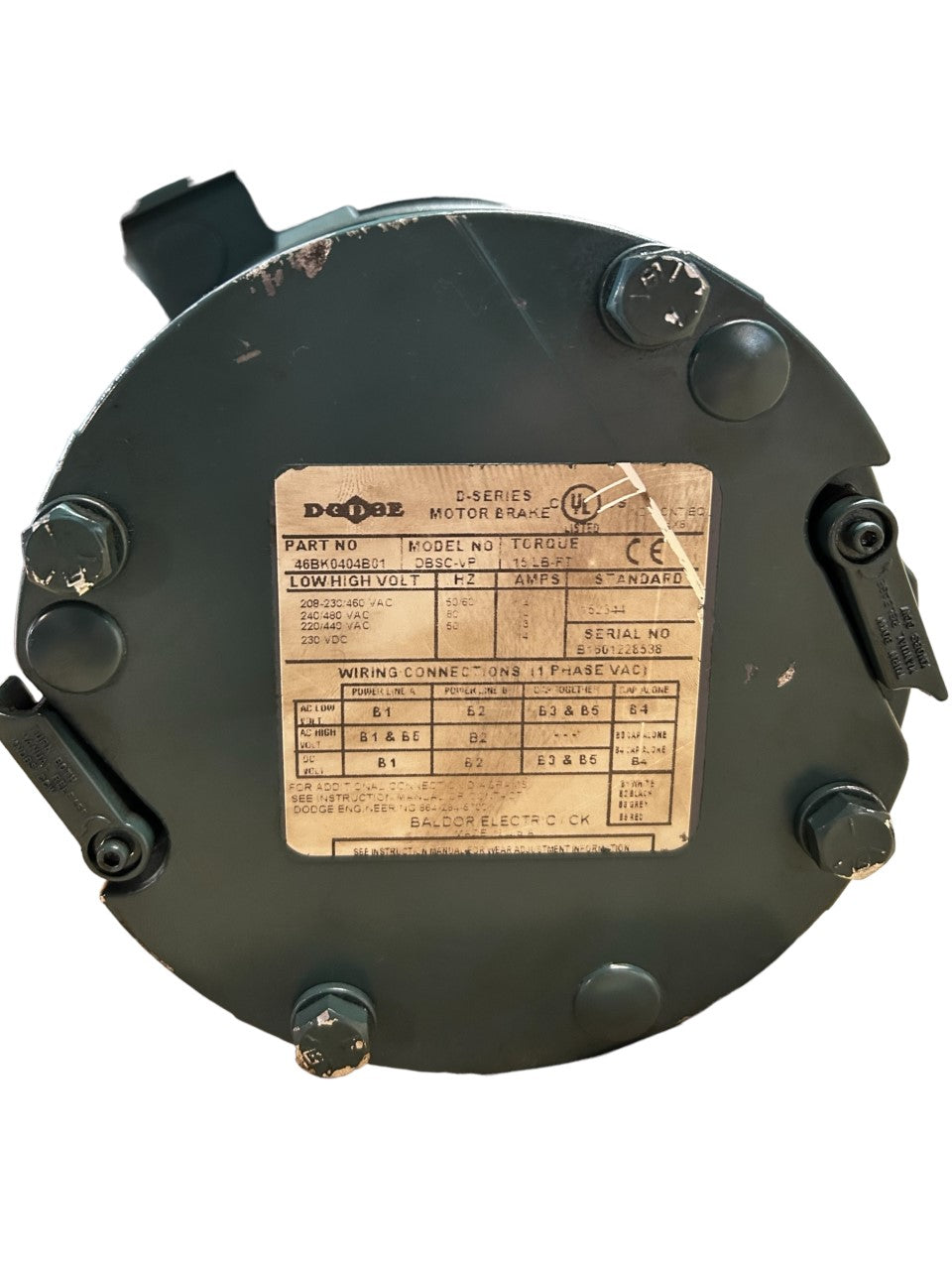

Brake Torque-15.0 lb-ft
Current @ Voltage-8.400 A @ 230.0 V
9.100 A @ 208.0 V
4.200 A @ 460.0 V
Design Code-A
Drip Cover-No Drip Cover
Duty Rating-CONT
Efficiency @ 100% Load-87.5 %
Electrically Isolated Bearing-Not Electrically Isolated
Feedback Device-NO FEEDBACK
High Voltage Full Load Amps-4.2 a
Front Face Code-Fan Housing Cover For Brake
Front Shaft Indicator-None
Heater Indicator-No Heater
Insulation Class-F
Inverter Code-Not Inverter
KVA Code-L
Lifting Lugs-No Lifting Lugs
Locked Bearing Indicator-Locked Bearing

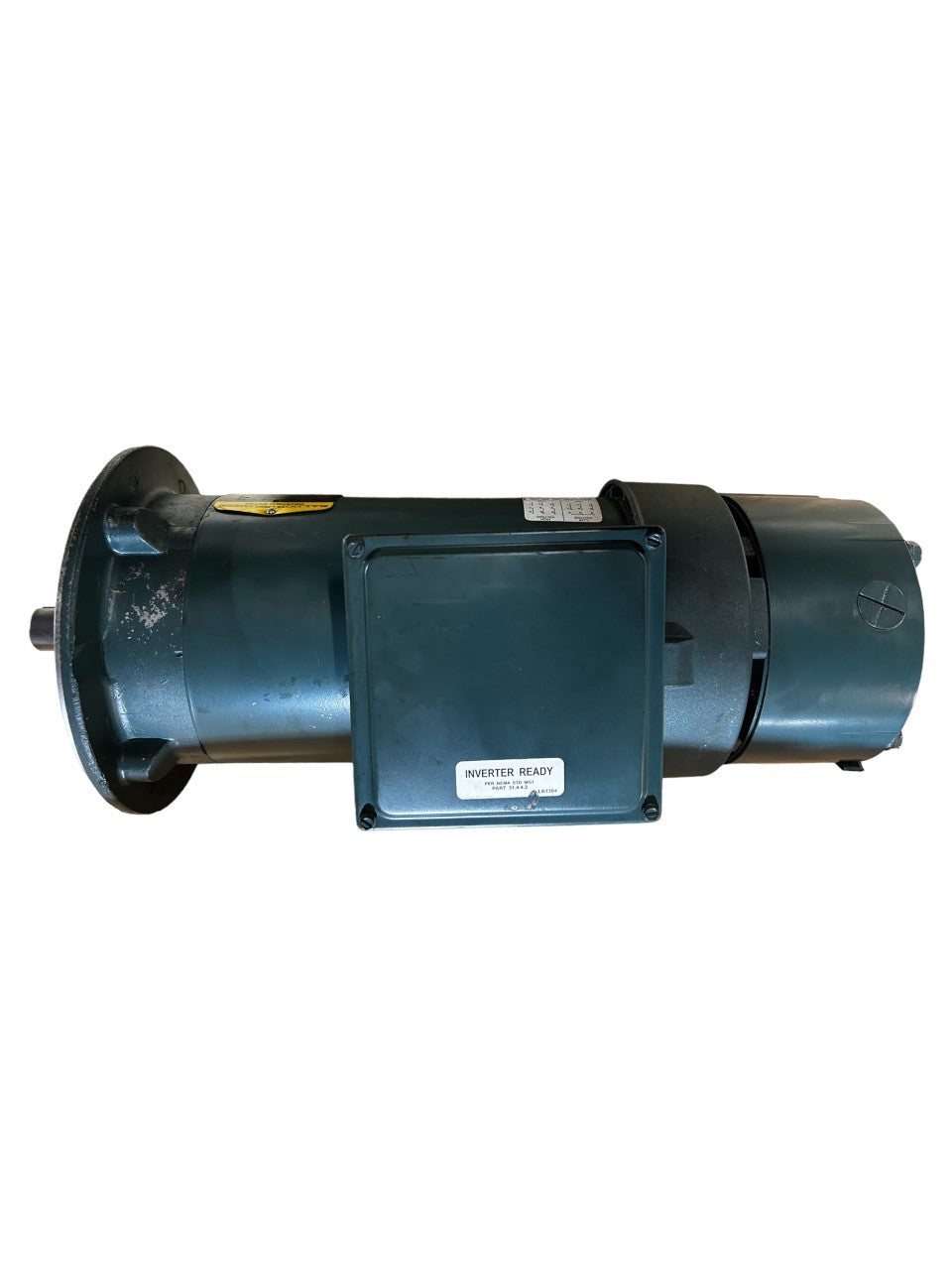

Motor Lead Exit-Ko Box
Motor Lead Termination-Flying Leads
Motor Lead Quantity/Wire Size-9 @ 18 AWG
Motor Type-3542M
Mounting Arrangement-F3
Number of Poles-4
Overall Length-20.62 IN
Power Factor-78
Product Family-General Purpose
Product Type-D-SERIES BRAKE MOTORS
Pulley End Bearing Type-Ball

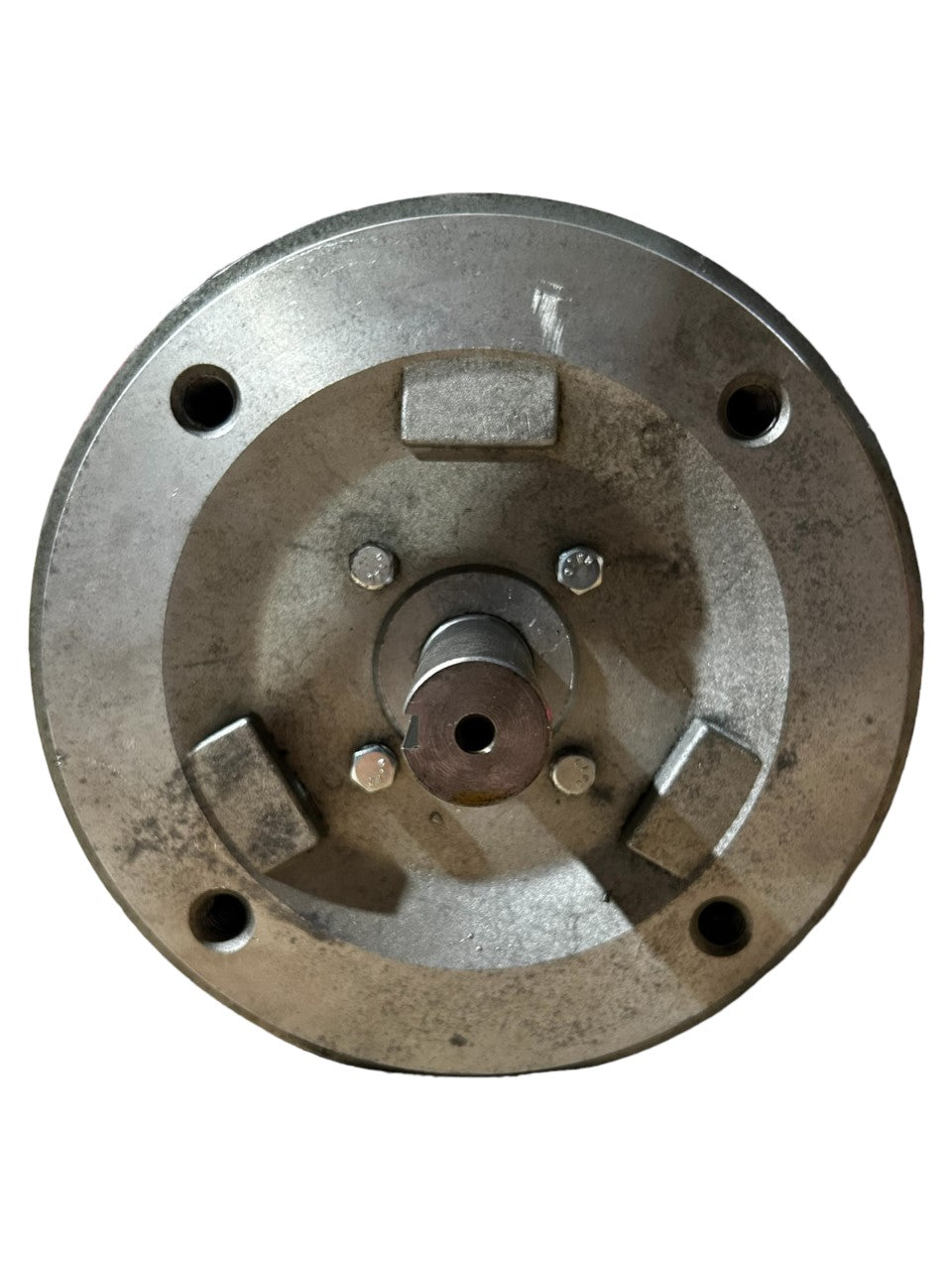

Pulley Face Code-C-Face
Pulley Shaft Indicator-Standard
Rodent Screen-None
Service Factor-1.15
Shaft Diameter-1.125 IN
Shaft Extension Location-Pulley End
Shaft Ground Indicator- No Shaft Grounding
Shaft Rotation- Reversible
Shaft Slinger Indicator-No Slinger
Speed-1750 rpm
Speed Code-Single Speed
Motor Standards-NEMA
Starting Method-Direct on line
