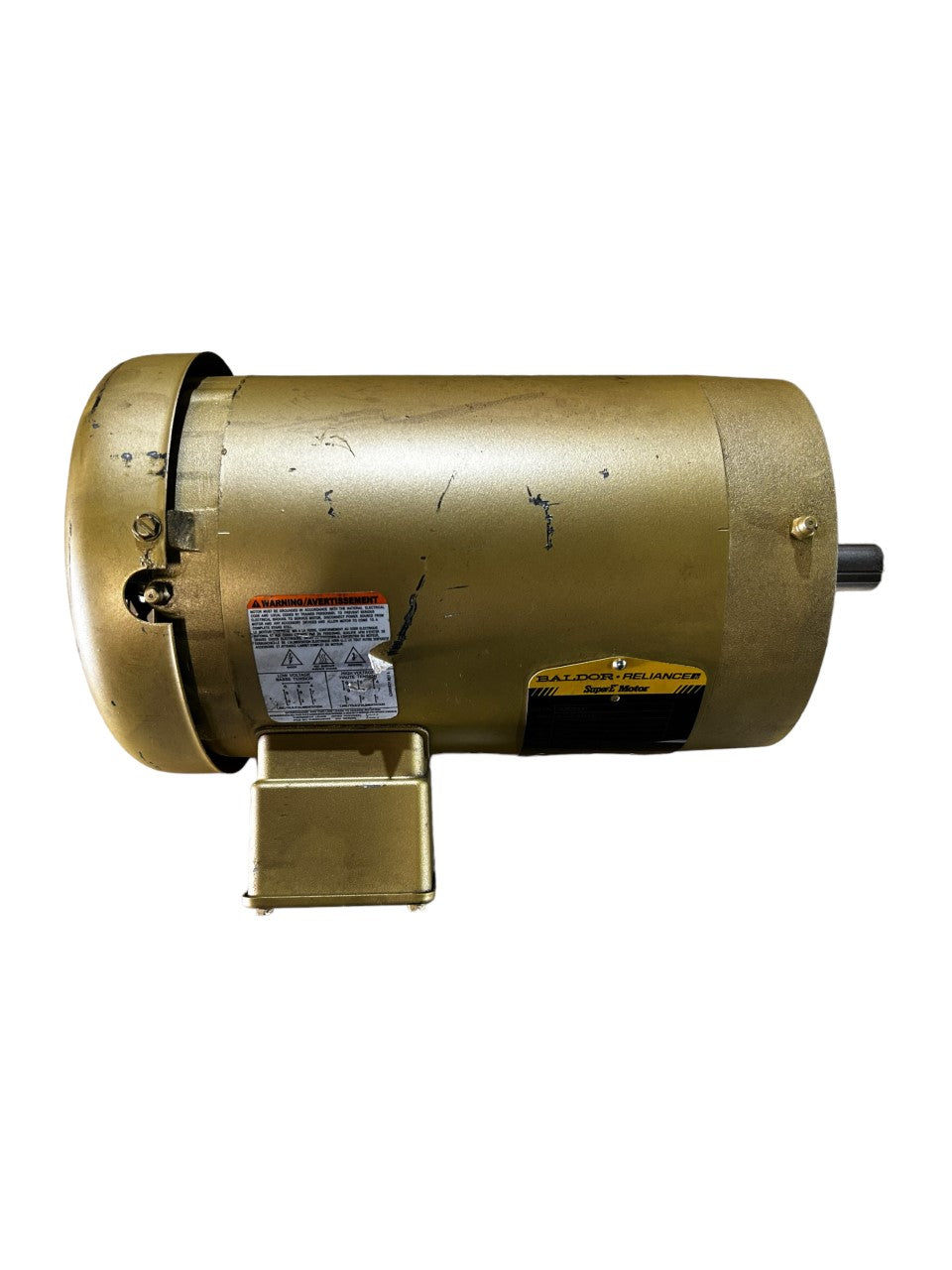

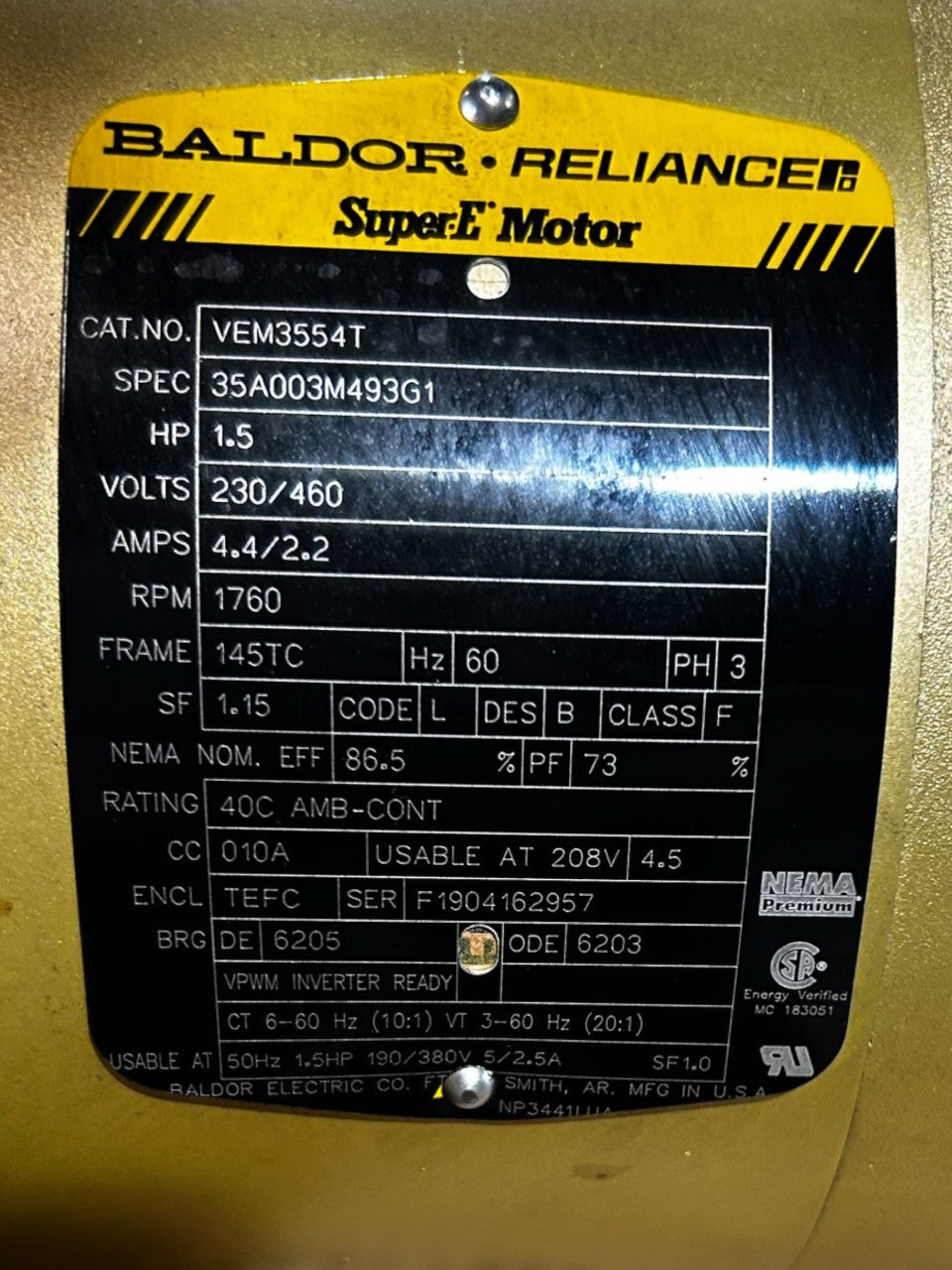

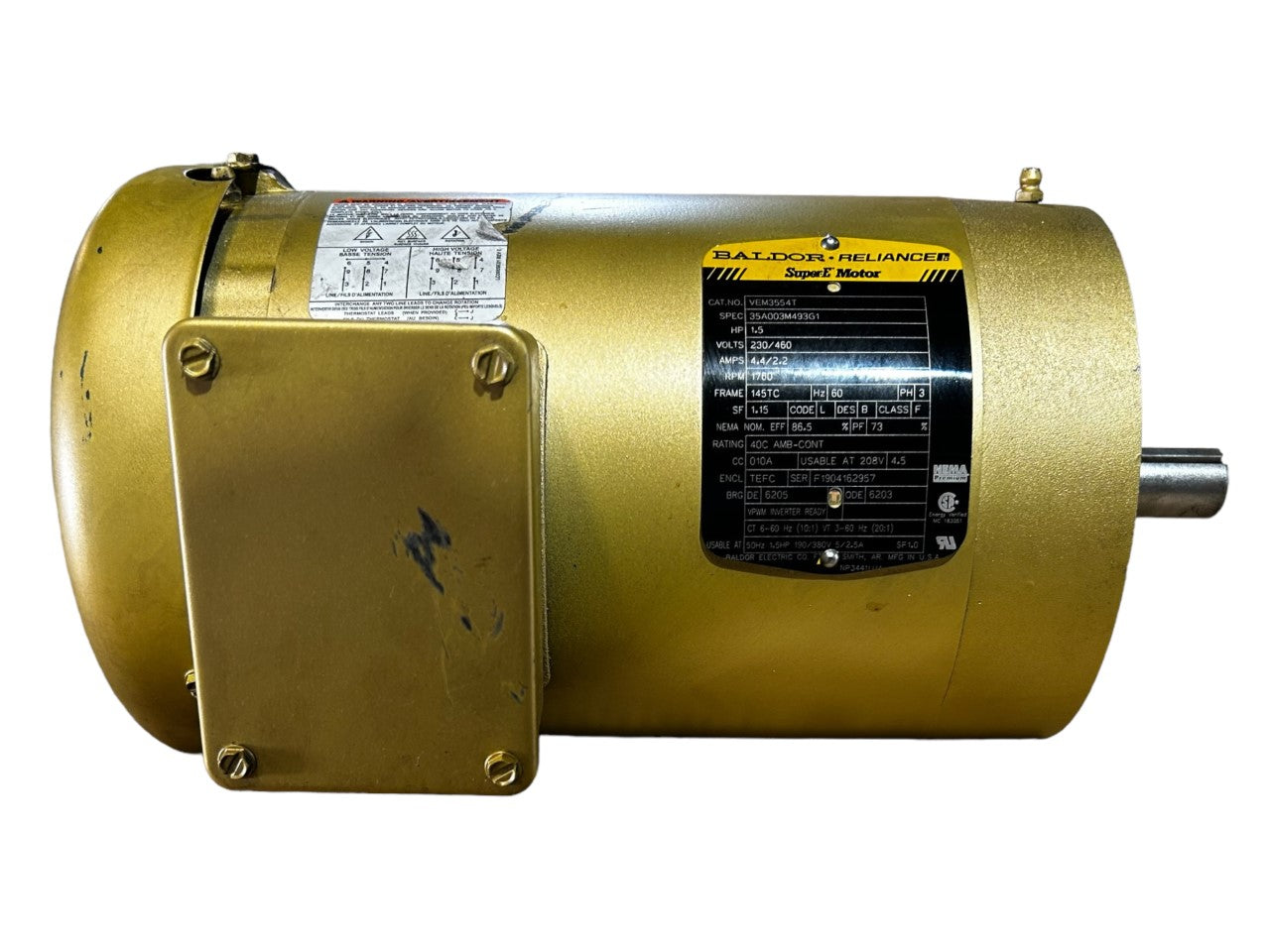

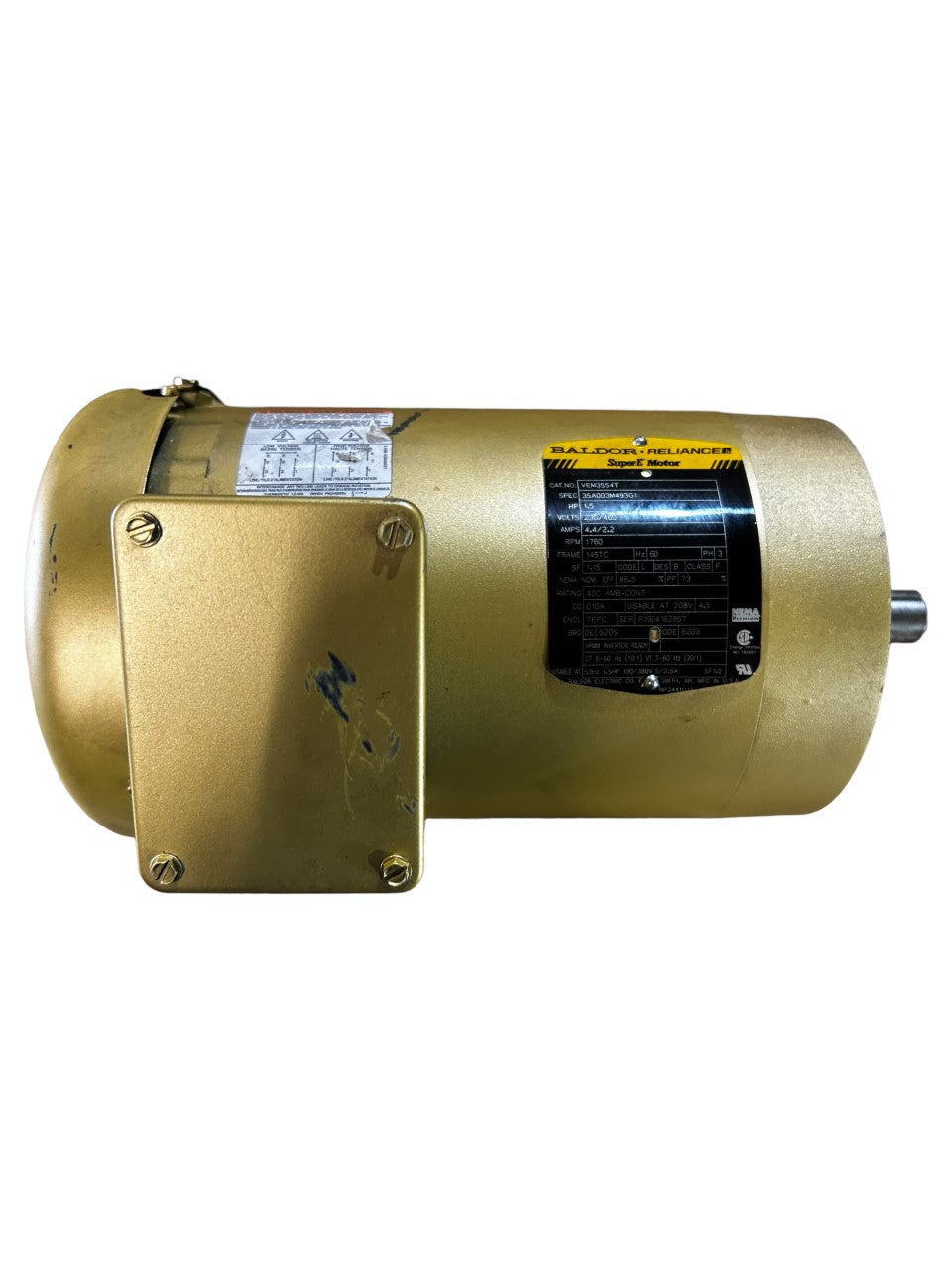

Baldor-Reliance Motor VEM3554T, 1.5HP, 1760RPM, 3PH, 60HZ, 145TC, TEFC, F1 -New No Box

*Freeman Liquidators is a liquidation retailer; we get our products from many sources such as overstock or insurance losses. All products are NEW/NEVER USED but external packaging MAY have damages. All items are opened for inspection prior to shipment to ensure the best quality of products.

*This product has been subjected to minor smoke and cosmetic damages from long term storage or shipment.  The cosmetic damages will not affect the overall performance of the product.

• ABB Baldor-Reliance GE3 Series — Totally Enclosed General Purpose AC Motors | Three Phase, Footless 1/4 thru 30 HP:

  Baldor's extensive line of General Purpose three phase motors are available in totally enclosed cast iron and industrial steel band for harsh applications. Designed for "general purpose" use means that these motors can be used in many applications. The Super E Motors (EM & CEM) provide NEMA Premium efficiency and are designed as standard to be inverter ready with wide variable torque speed ranges.

  GE3 Features:

• Footless design reduces weight and improves safety
• Locked DE bearing to allow mounting in any configuration
• 60 HP designs with 50 Hz information on 2, 4, 6 pole 1-125 HP ratings
• Suitable for inverter use per NEMA MG1 Part 31.4.4.2
• Designed for longevity with a 3 year warranty on premium efficient Super-E® motors

• Three Phase Enclosed Features:

• Heavy-gauge steel or cast-iron frames, and gasketed conduit boxes
• EM Super-E motors have NEMA Premium efficiency, Class F insulation, 1.15 service factor and 3 year warranty
• Motors with TR suffix have roller bearings for heavy belted loads
• Suitable for mounting in any position
• Ball bearings

• GE3 Applications:

• Fans
• Pumps
• Blowers
• Conveyors
• Compressors
• Industrial machines
• Other general purpose applications
• Steel

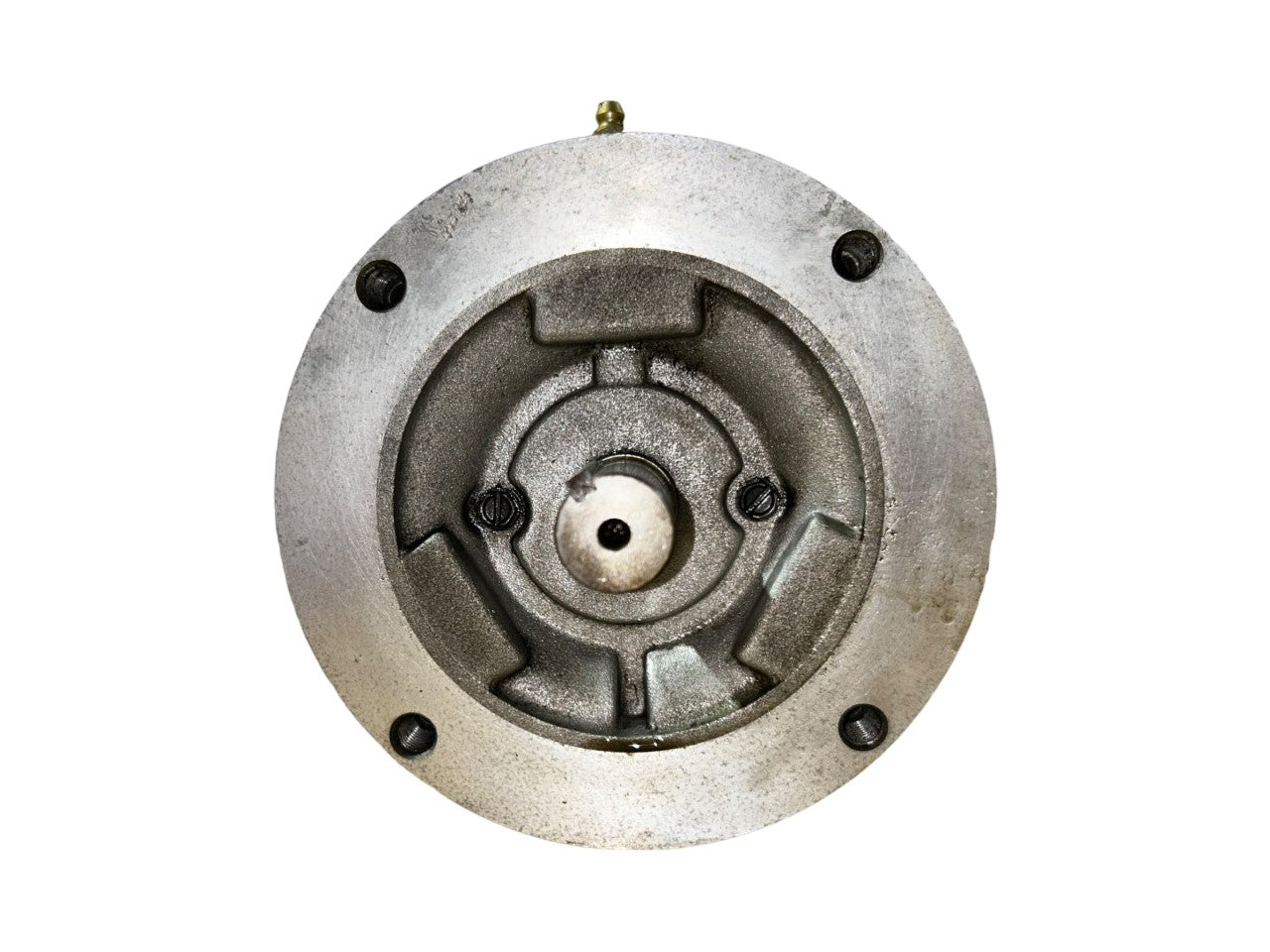

  • Motor Mounting Type: Face
  • HP: 1 1/2
  • RPM Range: 1,701-1,800
  • Voltage: 208-230/460V AC
  • Frame: 145TC
  • Motor Thermal Protection: None
  • Motor Service Factor: 1.15
  • Voltage Compatibility: 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
  • Motor Application: General Application
  • Motor Design: 3-Phase
  • Nameplate RPM: 1,760
  • Motor Shaft Rotation: CW/CCW
  • Motor Mounting Position: Horizontal
  • Motor Frame Material: Steel
  • Motor Shaft Design: Keyed
  • Standards: CSA, CSA EEV, UR
  • Includes: Conduit Box
  • Inverter Rated: Yes
  • No. of Speeds: 1
  • Ins. Class: F
  • Length Less Shaft: 11 3/16 in
  • Shaft Dia.: 7/8 in
  • Phase: Three
  • Hz: 60
  • Nominal Efficiency: 86.5 %
  • Shaft Length: 2 1/8 in
  • Motor Efficiency Group: NEMA Premium Efficient
  • CC Number: CC010A
  • Footnotes: 1
  • Full Load Amps: 4.4/2.2
  • Overall Length: 13 5/16 in
  • Frame Material: Rolled steel
  • Motor Bearings: Ball
  • Max. Ambient Temp.: 40 Degrees C
  • RPM Group: 1701-1800
  • Duty: Continuous
  • Manufacturers Warranty Length: 3 yr
  • Capacitor Required: No
  • Green Certification or Other Recognition: NEMA Premium(R) Rated
  • NEMA Design: B
  • Usable @ 200V: No
  • Weight: 49 lb
  • Duty Cycle: Continuous
  • Usable @ 208V: Yes
