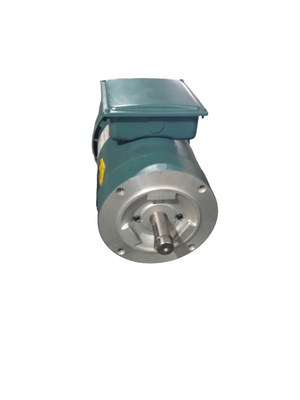

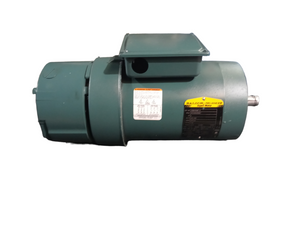

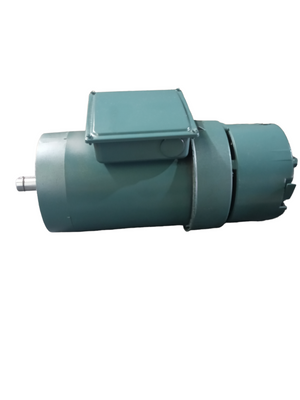

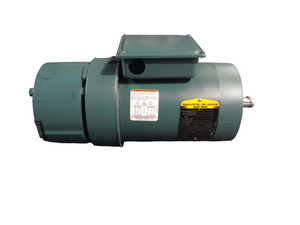

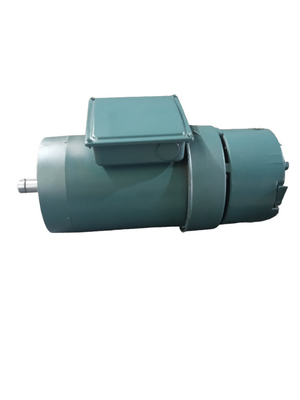

Baldor, VEBM3558T-D, Motor, 2/1.5KWHP, 1760 1/MINRPM, 3PH, 60HZ, 145TC, 3

$999.99 $1,799.99
Shipping calculated at checkout.

Delivery and Shipping

Shipping is automatically calculated at checkout.

In store pickup is sometimes the only option. These products are noted as such in our listings.

Some items have been set up so that they require a shipping quote.  Please fill out the appropriate form on the product's page and we will respond within 24-48 hours with a freight quote.

What we ship is by best carrier, some products prepaid and others not, due to our large variances in product lines, physical sizes and weight.

At checkout you will be prompted for shipping alternatives dependent on these parameters. Products which fit standardized packaging may also have calculated shipping costs by weight and volume on our website.

In all cases our staff audits for the best shipping cost and if necessary will contact our customer with recommendations.

Freight/Palleted items that are not accepted by the recipient or are sent back to us due to undeliverable address may be refunded, but the return shipping fees will be deducted from the overall amount of refund.

All returned items are subject to a 10% handling fee.

Baldor, VEBM3558T-D, Motor, 2/1.5KWHP, 1760 1/MINRPM, 3PH, 60HZ, 145TC, 3

Description

Baldor, VEBM3558T-D, Motor, 2/1.5KWHP, 1760 1/MINRPM, 3PH, 60HZ, 145TC, 3

PRODUCT DISCLOSURE:

All products were acquired by Freeman Liquidators from a sale of merchandise subject to a commercial insurance loss. Freeman Liquidators is a secondary seller of products, is not affiliated with or sponsored by the manufacturer of the products and is not a manufacturer authorized seller of the products. Sale of this product by Freeman Liquidators is not subject to the policies of the manufacturer. Any warranty offered by the manufacturer is not available to you as the purchaser. All products are NEVER USED but external packaging will have damage. Some items may be placed into other packaging to ensure safe shipping. All items are opened for inspection prior to shipment to ensure the best quality of products. Freeman Liquidators guarantees your satisfaction. If you are not completely satisfied with a purchased product, within 30 days from the date of purchase, return the product in its packaging and Freeman Liquidators will fully refund your money.

External Packaging has been subjected to smoke damages. Parts are inspected and cleaned if needed, prior to shipment. All parts are NEW/NEVER USED and fully functional.

*This product has been subjected to minor cosmetic damages from long term storage or shipment.  The cosmetic damages will not affect the overall performance of the product.

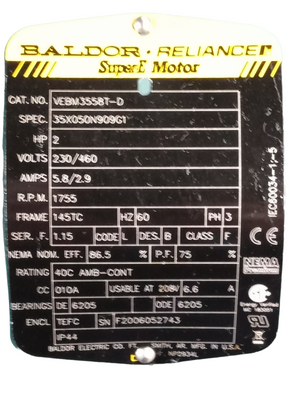

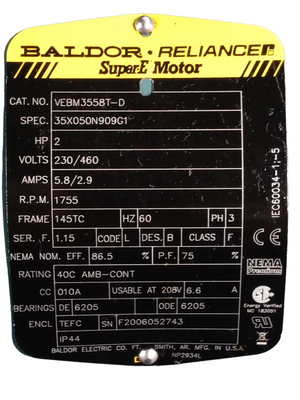

Catalog Number:  VEBM3558T-D
Enclosure  TEFC
Frame  145TC
Frame Material  Steel
Frequency  60.00 Hz
Motor Letter Type  Three Phase
Output @ Frequency  2.000 HP @ 60 HZ
Phase  3
Synchronous Speed @ Frequency  1800 RPM @ 60 HZ
Voltage @ Frequency  460.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and Group  None
XP Division  Not Applicable
Agency Approvals  CE
CSA
CSA EEV
UR
WEEE
Ambient Temperature40 °C
Auxillary Box  No Auxillary Box
Auxillary Box Lead Termination  None
Base Indicator  No Mounting
Bearing Grease Type  Polyrex EM (-20F +300F)
Blower  None

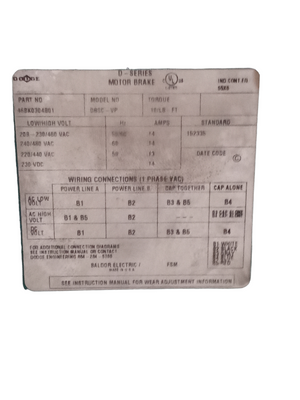

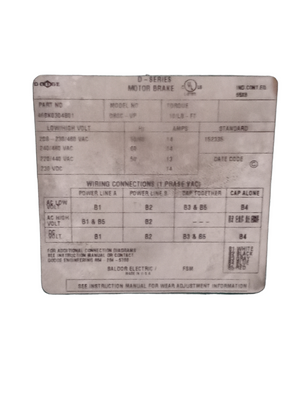

Brake Torque  10.0 lb-ft
Current @ Voltage  6.600 A @ 208.0 V
5.800 A @ 230.0 V
2.900 A @ 460.0 V
Design Code  B
Drip Cover  No Drip Cover
Duty Rating  CONT
Efficiency @ 100% Load  86.5 %
Electrically Isolated Bearing  Not Electrically Isolated
Feedback Device  NO FEEDBACK
High Voltage Full Load Amps  2.9 a
Front Face Code  Fan Housing Cover For Brake
Front Shaft Indicator  None
Heater Indicator  No Heater
Insulation Class  F
Inverter Code  Inverter Ready
IP Rating  NONE
KVA Code  L
Lifting Lugs  No Lifting Lugs
Locked Bearing Indicator  Locked Bearing
Motor Lead Exit  Ko Box
Motor Lead Termination  Flying Leads
Motor Lead Quantity/Wire Size  9 @ 18 AWG
Motor Type  3528M
Mounting Arrangement  F3
Number of Poles  4
Overall Length  17.35 IN
Power Factor  75
Product Family  General Purpose
Product Type  D-SERIES BRAKE MOTORS
Pulley End Bearing Type  Sealed Bearing
Pulley Face Code  C-Face
Pulley Shaft Indicator  Standard
Rodent Screen  None
Service Factor  1.15
Shaft Diameter  0.875 IN
Shaft Extension Location  Pulley End
Shaft Ground Indicator  No Shaft Grounding
Shaft Rotation  Reversible
Shaft Slinger Indicator  No Slinger
Speed  1755 rpm
Speed Code  Single Speed
Motor Standards  NEMA
Starting Method  Direct on line
Thermal Device - Bearing  None
Thermal Device - Winding  None
Vibration Sensor Indicator  No Vibration Sensor
Winding Thermal 1  None
Winding Thermal 2  None
