BOSTON GEAR Speed Reducer F718-10-B5-J: 175 Nominal Output RPM, 56C, 10:1, 1.5 hp Max. Input HP - NEW IN BOX - FreemanLiquidators - [product_description]

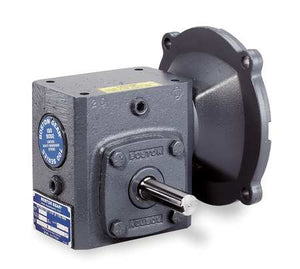

BOSTON GEAR Speed Reducer F718-10-B5-J: 175 Nominal Output RPM, 56C, 10:1, 1.5 hp Max. Input HP - NEW IN BOX

Regular price
$749.99
Sale price
$749.99
Regular price
$949.99
Sold out
Unit price
per
Shipping calculated at checkout if applicable

Available Quantity: 3

BOSTON GEAR Speed Reducer F718-10-B5-J: 175 Nominal Output RPM, 56C, 10:1, 1.5 hp Max. Input HP - NEW IN BOX

***Freeman Liquidators is a liquidation retailer; we get our products from many sources such as overstock or insurance buys. All products are NEW/NEVER USED but external packaging MAY have damages. All items are opened for inspection prior to shipment to ensure the best quality of products.

****External Packaging has been subjected to smoke damages. Parts are inspected and cleaned if needed, prior to shipment. All parts are NEW/NEVER USED and fully functional.

Boston Gear #F718-10-B5-G Specifications

  • Item: Speed Reducer
  • Nominal Ratio: 10:1
  • Input RPM: 1750 rpm
  • Bore Dia.: 7/8"
  • Nominal Output RPM: 175
  • Overall Length: 8.62"
  • Standards: AGMA Service Class II
  • Rotation: Forward/Reversible
  • Output Torque @ 2 HP: 460 in-lb
  • Gear Type: Worm
  • Gear Material: Hardened and Ground Steel
  • Max. Input HP: 1.5 hp
  • Seal Type: Double Lip
  • Frame: 56c
  • Housing Material: Cast iron
  • Output Shaft Height: 2 1/16 in
  • Worm Center Distance: 1.75 in
  • Number of Stages: 1
  • Worm Gear Material: Bronze
  • Base: Optional
  • Reducer Model No.: F718-10-B5-G
  • Mounting: Any Position
  • Finish: Powdered Epoxy Paint
  • Pinion Material: Hardened Steel
  • Single/Double Output/Universal: Single Output
  • Dimension U: 7/8 in
  • Max. Output Torque: 460 in-lb
  • Speed Reducer Type: C-Face
  • Bearings: Tapered Roller
  • Overhung Load: 600 lb
  • Output Torque @ 1.5 HP: 320 in-lb
  • Solid/Hollow Output Shaft: Solid
  • Duty: Standard
  • Output Torque @ 1/40 HP: 3600 in.-lb.
  • Output Shaft Dia.: 7/8 in
  • Lubrication: Klubersynth UH1 6-460
  • Shaft Orientation: Right Angle
  • Nominal Output rpm: 175 rpm
