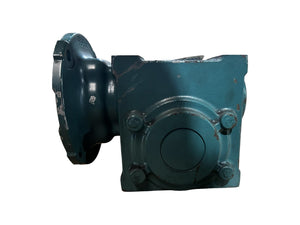

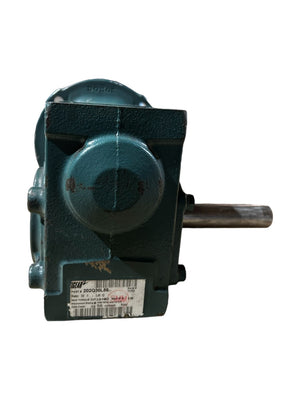

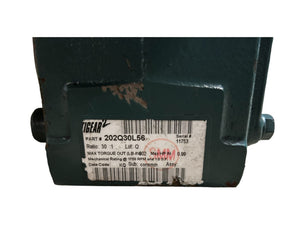

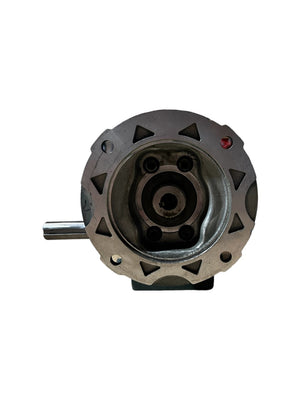

Dodge Tigear-2, 202Q30L56, Quilled Input, Left &/or Right Output, Worm Gear, Reducer - New NO BOX
PRODUCT DISCLOSURE:
All products were acquired by Freeman Liquidators from a sale of merchandise subject to a commercial insurance loss. Freeman Liquidators is a secondary seller of products, is not affiliated with or sponsored by the manufacturer of the products and is not a manufacturer authorized seller of the products. Sale of this product by Freeman Liquidators is not subject to the policies of the manufacturer. Any warranty offered by the manufacturer is not available to you as the purchaser. All products are NEVER USED but external packaging will have damage. Some items may be placed into other packaging to ensure safe shipping. All items are opened for inspection prior to shipment to ensure the best quality of products. Freeman Liquidators guarantees your satisfaction. If you are not completely satisfied with a purchased product, within 30 days from the date of purchase, return the product in its packaging and Freeman Liquidators will fully refund your money.
External Packaging has been subjected to smoke damages. Parts are inspected and cleaned if needed, prior to shipment. All parts are NEW/NEVER USED and fully functional.
PRODUCT DETAILS
- 2" Center Distance
- 56C Frame
- 30:1 Ratio
- 5/8" C-Face Quilled Input
SPECIFICATIONS
OUTPUT RPM @ 1750 RPM INPUT 58.33 rpm CENTER DISTANCE 2 in OUTPUT CONFIGURATION Left Output OUTPUT RPM @ INPUT RPM 58 rpm @ 1750 rpm INPUT (SHAFT OR BORE) SIZE 5/8 in BOX LENGTH 6 1/8 in HP @ RPM 0.75 hp @ 1800 rpm INPUT HP @ RPM 0.96 hp @ 1750 rpm BOX WIDTH 5.01 in HOUSING MATERIAL Cast Iron OUTPUT (SHAFT OR BORE) SIZE 1 in RATIO 30:1 MOTOR APPLICATION General Purpose BOX HEIGHT 6.35 in FRAME 56C OUTPUT TORQUE @ RPM 802 in lb @ 1750 rpm BOLT PATTERN 5 x 2.88 BOLT CENTERS W/ STD. BASE KIT (IN) 6.2 x 4.6 INPUT CONFIGURATION C-Face Quilled FRAME SIZE 56C TORQUE OUT @ 1750 RPM 802 in lb BOLT CENTERS W/ VERTICAL "J" BASE KIT (IN) 8.97 x 2.63 LUBRICATION Synthetic WEIGHT 30.0 LB - 1" Left Output Shaft
FEATURES
- Enclosed, ventless sealing system to eliminate oil contamination
- Factory-filled with H1 food-grade PAG synthetic lubricant
- HNBR seals with specialized hydrodynamic wave design for five times longer life
- Precision-cut gearing with fine-grain bronze to maximize durability
- Seal journals held to exacting tolerances
- Large worm shaft for maximized strength and gear tooth life
- Maintenance-free design to maximize uptime
- Optimized performance with cooler operating temperatures
- Capability to mount in any position
- Robust ball bearings and tapered roller bearings for best-in-class longevity
