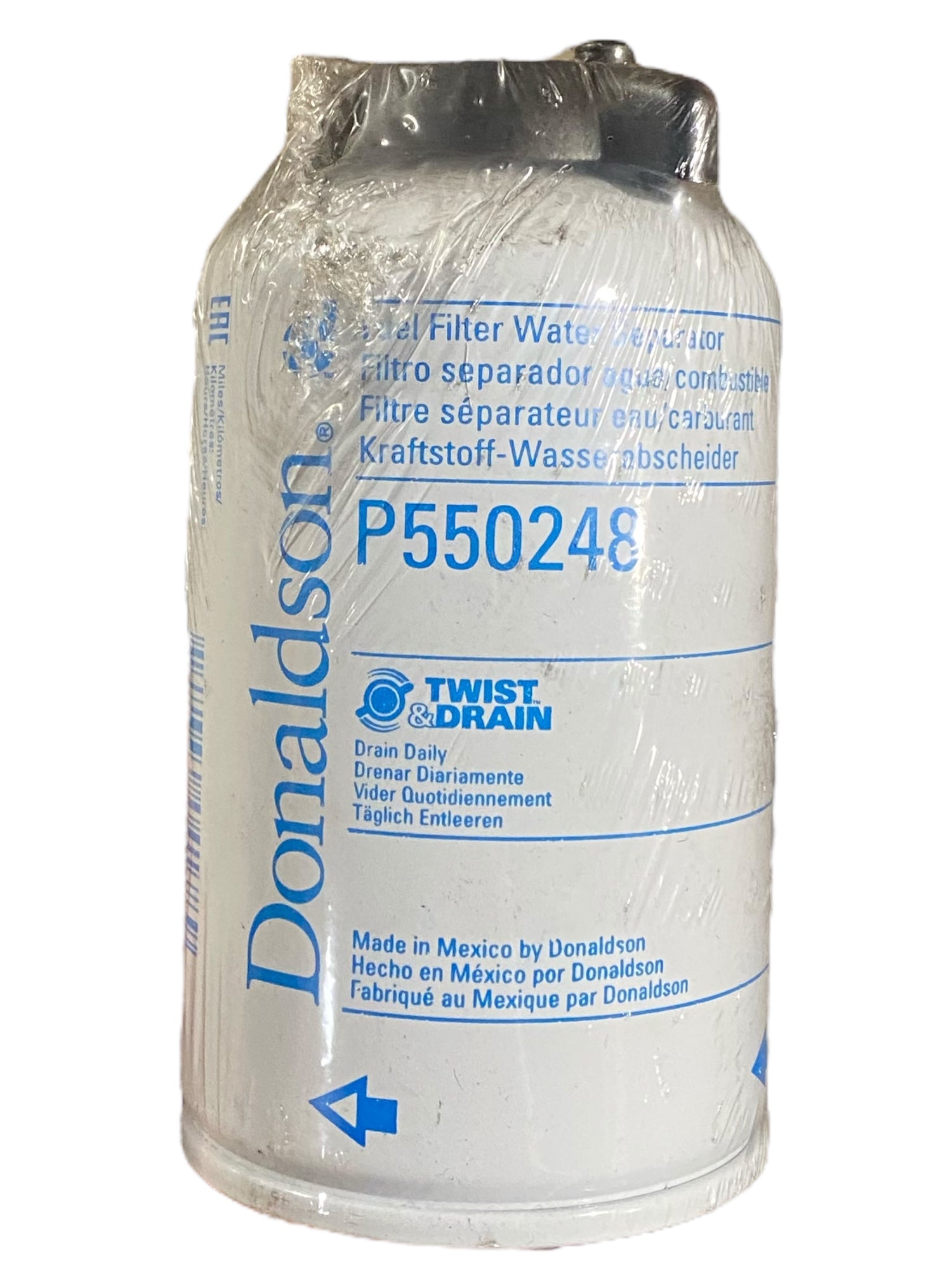

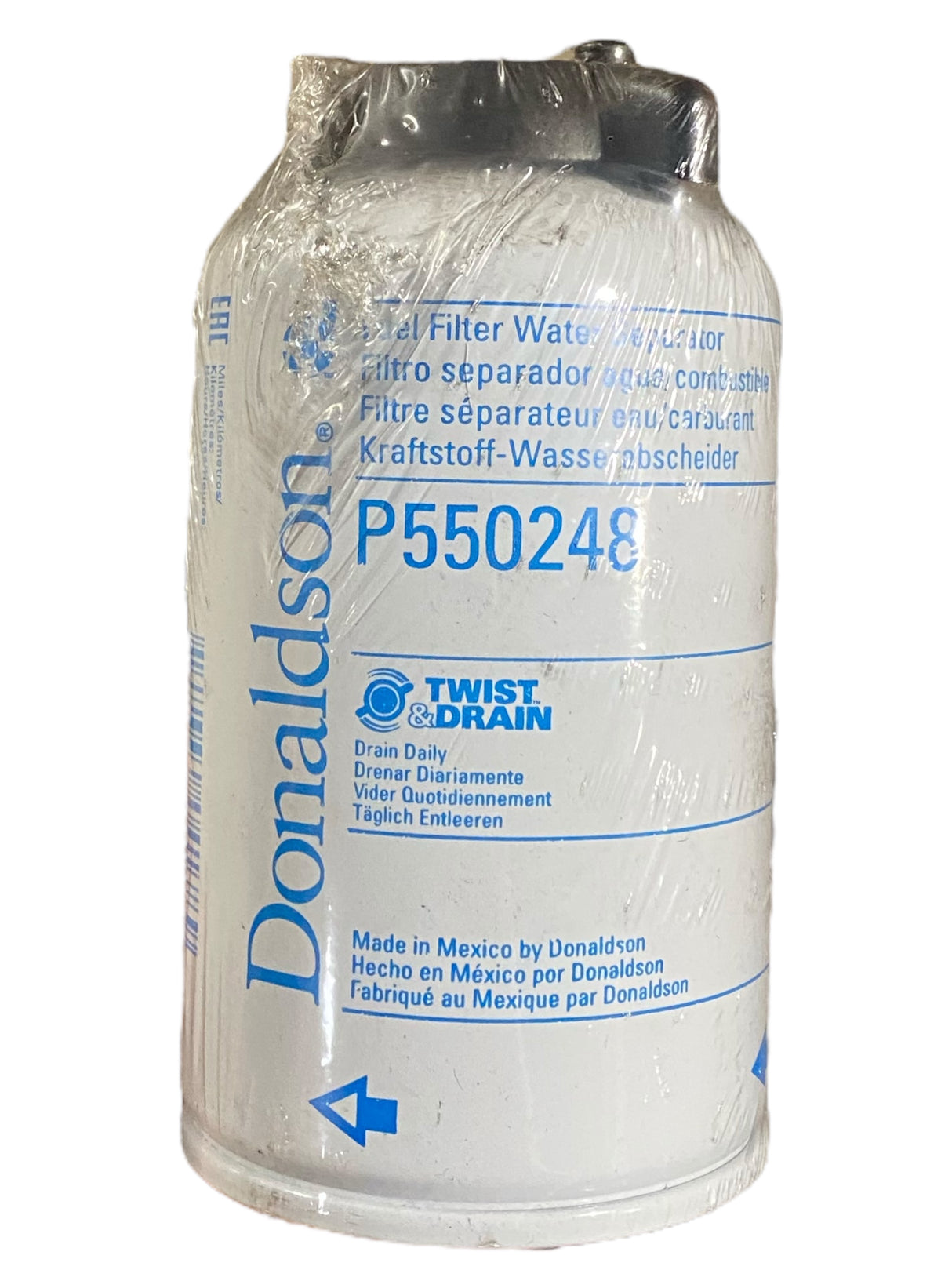

Donaldson, P550248, Spin On, Twist & Drain, Water Seperator, Fuel Filter (NEW NO BOX)

Product Overview

The Donaldson P550248 is a high-performance fuel filter and water separator, designed for superior filtration efficiency in demanding engine environments. Its spin-on design with the Twist&Drain™ function allows easy servicing and guarantees optimal performance.

Key Features

• Outer Diameter: 3.20 inches (81.3 mm)
• Thread Size: M16 x 1.5
• Length: 6.62 inches (168 mm)
• Gasket Dimensions:
  • Outer Diameter: 2.86 inches (72.6 mm)
  • Inner Diameter: 2.38 inches (60.5 mm)
• Efficiency:
  • 99% at 15 microns (ISO 19438 standard)
  • 90% Emulsified H2O Efficiency
• Burst Pressure: 80 psi (5.5 bar)
• Media Type: Cellulose
• Type: Water Separator
• Style: Spin-On Twist&Drain™

Why Choose Donaldson Fuel Filters?

• Built for high efficiency and long-lasting durability.
• Designed to prevent water and contaminants from reaching your engine, maintaining fuel system integrity.
• Trusted worldwide for robust construction and reliable operation.

Cross-Reference Compatibility

The Donaldson P550248 replaces the following part numbers from major manufacturers:

• CASE/CASE IH: 84565895, 84171692, 114545A1, 71104220
• Caterpillar: 3I1808
• Cummins: 3843760, 1492827, 3286503, 3931062, 3831062, 3931064, AX1004559, 3903202
• Ford: F3HZ9365E, F3HZ9365C, 9576P550248
• Fiat: 73175965, 73175973
• Freightliner: DNP550248
• Ingersoll Rand: 59477570
• Komatsu: 1240619H2, 6732716310, 1240619H1, CUFS1251
• Mitsubishi: MO5281090, MB620598
• John Deere: F121868, F433395
• Leyland-DAF (LDV): CVU1177, CBU1920, CBU1177
• Mercedes-Benz: 940000604
• New Holland: L86990957, 76194582, 86555246
• Volvo: 3134055
• Yale: 580004421

For a full list, contact us or refer to your manufacturer’s part number.

Compatible Equipment

This filter is ideal for the following vehicles and equipment:

• AGCO: 8765 Tractor (8000 Series)
• Atlas Copco: XAS375 Compressor
• Aveling-Barford: WL26 Loader (Cummins 6CT8.3 engine)
• Blaw Knox: BK171, BK191, BK450 Pavers (Cummins 4BTA3.9, 6BT5.9 engines)
• Case IH: 1088 MAXI Excavator (Cummins 6BT5.9 engine)
• Cummins-powered equipment:
  • 4B3.9, 4BT3.9, 4BTA3.9, 6BT5.9, 6CT8.3 engines
• Freightliner: DNP550248
• Ford: F3HZ9365E (Trucks)
• Hyundai: H70 Dozer (Cummins 4B3.9 engine)
• Ingersoll Rand: Compactors and Drilling Equipment (Cummins engines)
• Komatsu: Various models (track loaders and excavators with Cummins engines)
• Mitsubishi: MB620598
• New Holland: 76194582 Tractor
• Volvo: 3134055 Heavy Machinery
