Eaton - Cutler Hammer Mfr. Part #: DH363FRK - FreemanLiquidators - [product_description]

Load image into Gallery viewer, Eaton - Cutler Hammer Mfr. Part #: DH363FRK - FreemanLiquidators - [product_description]

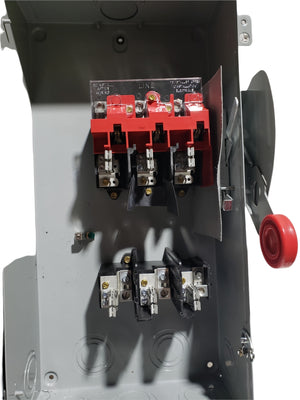

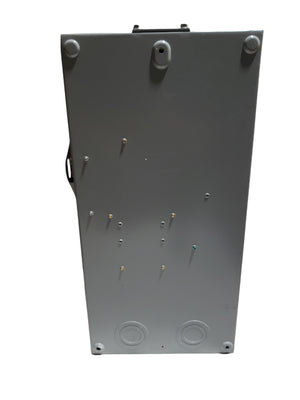

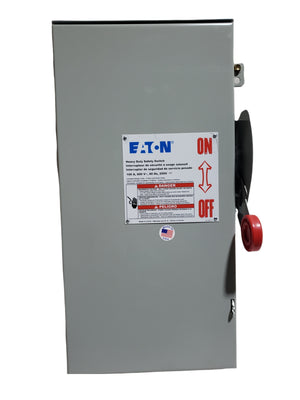

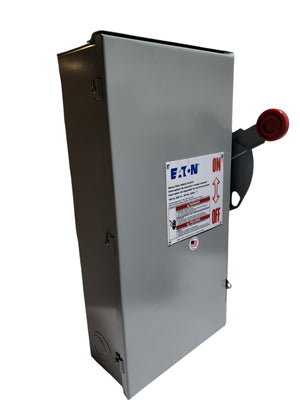

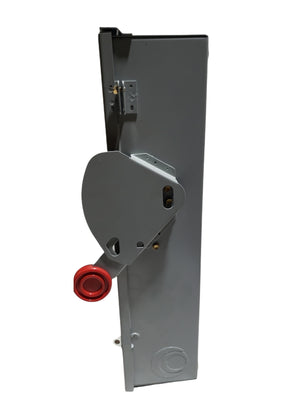

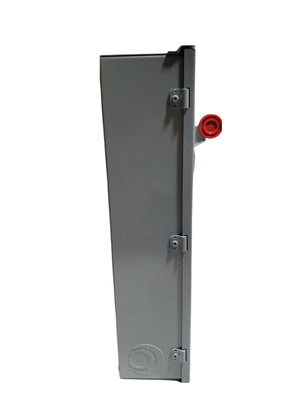

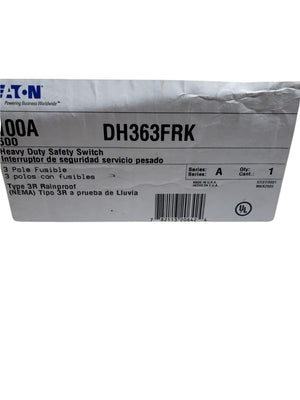

Eaton - Cutler Hammer Mfr. Part #: DH363FRK

Regular price: $609.99
Sale price: $609.99
Regular price: ~~$899.99~~
Unit price: per

Shipping calculated at checkout if applicable

Available Quantity: 4

Eaton - Cutler Hammer Mfr. Part #: DH363FRK

PRODUCT DISCLOSURE:

All products were acquired by Freeman Liquidators from a sale of merchandise subject to a commercial insurance loss. Freeman Liquidators is a secondary seller of products, is not affiliated with or sponsored by the manufacturer of the products and is not a manufacturer authorized seller of the products. Sale of this product by Freeman Liquidators is not subject to the policies of the manufacturer. Any warranty offered by the manufacturer is not available to you as the purchaser. All products are NEVER USED but external packaging will have damage. Some items may be placed into other packaging to ensure safe shipping. All items are opened for inspection prior to shipment to ensure the best quality of products. Freeman Liquidators guarantees your satisfaction. If you are not completely satisfied with a purchased product, within 30 days from the date of purchase, return the product in its packaging and Freeman Liquidators will fully refund your money.

Product Specifications

Product Attribute	Attribute Value	Search
Alternate Mfr Part Number	DH363FRK
Approvals	UL Listed
Current Rating	100A A
Enclosure Rating	NEMA 3R
Fuse Type	Fusible
Height	9 Inch
Horsepower, Max, 1 Phase, at 480 V	30
Horsepower, Max, 1 Phase, at 600 V	60
Horsepower, Max, 3 Phase, at 480 V	40
Horsepower, Max, 3 Phase, at 600 V	75
Length	22.5 Inch
Maximum Current	100 A
Mounting Type	Panel Mount
Number of Poles	3
Number of Wires	Three-wire
Operation	Safety
Primary Type	Safety Switch
Series	K Series
Special Features	High Performance and Reliability
Type	Single-Throw
UPC Code	782113206424
Voltage Rating	600V VAC
Weight	21 Pound
Width	12.75 Inch

Overview

For heavy commercial and industrial applications where reliable performance and service continuity are critical.
Features:

Visible Double Break Quick-Make, Quick-Break Rotary Blade Mechanism. Two Points of Contact Provide a Positive Open and Close, Easier Operation, and Also Help Prevent Contact Burning for Longer Contact Life

Triple Padlocking Capability. Personnel Safety Feature Since the Large Hasp Can Accommodate Up to Three 3⁄8 Inch Shank Locks

Interlocking Mechanism. Door Cannot Be Opened when the Handle is in the ON Position. Built-In Defeater Mechanism Provides for User Access when Necessary

Fusible and Non-Fusible Switches are 100% Load Break and 100% Load Make Rated

Horsepower Rated

30 Through 1200 Amperes Available
