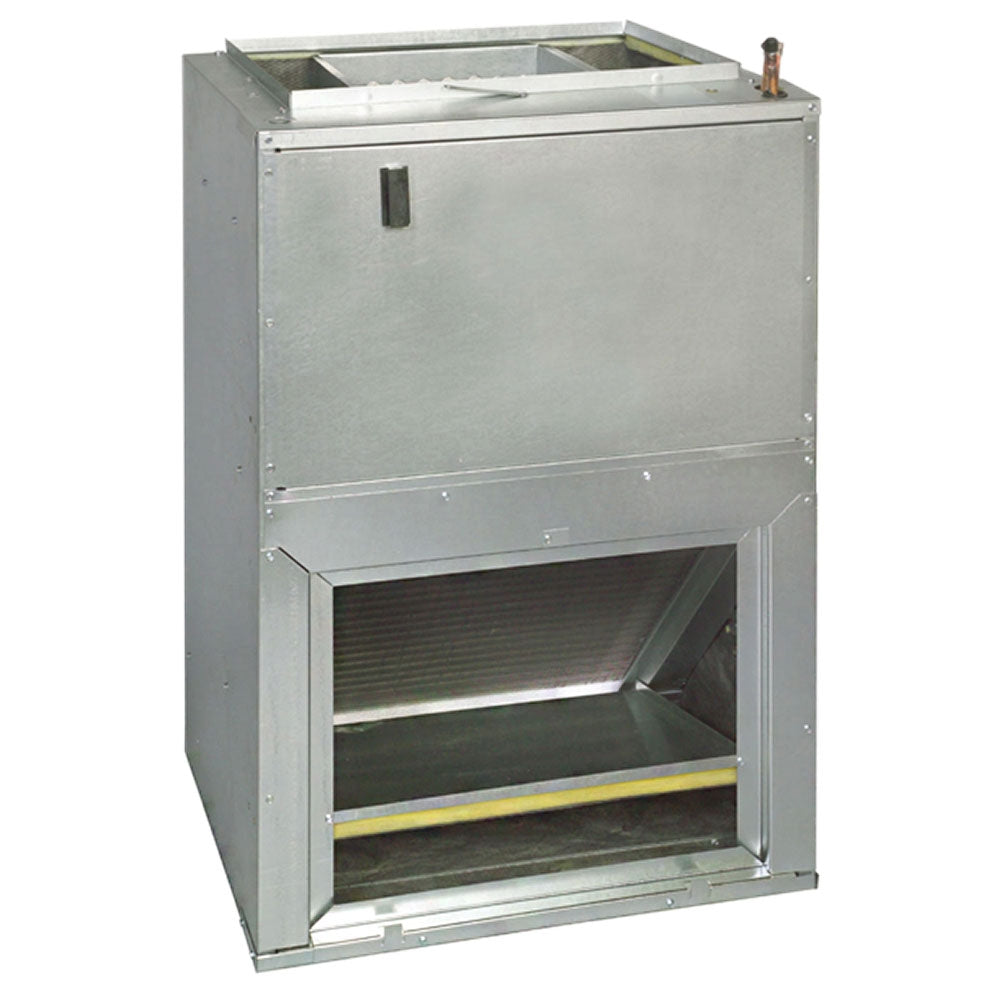

Goodman, AWUF180816, Multi-Speed Air Handler, 18000 Btu/hr, Cooling Btu, 208 - 240 VAC, 1/5 hp, 60 Hz, 1 -Phase
Attention: This product requires freight shipping. Please fill out the form below, and we will get back to you as soon as possible with a quote.
(Freight quotes are not a commitment. You may decide not to proceed at any time, we use them to insure the best shipping rates for our customers)
Product Disclosure:
This product was acquired by Freeman Liquidators from a sale of merchandise subject to a commercial insurance loss. Freeman Liquidators is a secondary seller of products, is not affiliated with or sponsored by the manufacturer of the products and is not a manufacturer authorized seller of the products. Sale of this product by Freeman Liquidators is not subject to the policies of the manufacturer. Any warranty offered by the manufacturer is not available to you as the purchaser. All products are NEVER USED but external packaging will have damage. Some items may be placed into other packaging to ensure safe shipping. All items are opened for inspection prior to shipment to ensure the best quality of products. Freeman Liquidators guarantees your satisfaction. If you are not completely satisfied with a purchased product, within 30 days from the date of purchase, return the product in its packaging and Freeman Liquidators will fully refund your money.
Delivery and Shipping
Delivery and Shipping
Shipping is automatically calculated at checkout.
In store pickup is sometimes the only option. These products are noted as such in our listings.
Some items have been set up so that they require a shipping quote. Please fill out the appropriate form on the product's page and we will respond within 24-48 hours with a freight quote.
What we ship is by best carrier, some products prepaid and others not, due to our large variances in product lines, physical sizes and weight.
At checkout you will be prompted for shipping alternatives dependent on these parameters. Products which fit standardized packaging may also have calculated shipping costs by weight and volume on our website.
In all cases our staff audits for the best shipping cost and if necessary will contact our customer with recommendations.
Freight/Palleted items that are not accepted by the recipient or are sent back to us due to undeliverable address may be refunded, but the return shipping fees will be deducted from the overall amount of refund.
All returned items are subject to a 10% handling fee.
![Goodman, AWUF180816, Multi-Speed Air Handler, 18000 Btu/hr, Cooling Btu, 208 - 240 VAC, 1/5 hp, 60 Hz, 1 -Phase - 2 Ton - Freeman Liquidators - [product_description]](http://freemanliquidators.com/cdn/shop/files/AWUF180816_a2dad6a5-4780-4f7d-b8b3-f59a2354a59b.jpg?v=1773857035&width=112)
Goodman, AWUF180816, Multi-Speed Air Handler, 18000 Btu/hr, Cooling...
![Goodman, AWUF180816, Multi-Speed Air Handler, 18000 Btu/hr, Cooling Btu, 208 - 240 VAC, 1/5 hp, 60 Hz, 1 -Phase - 2 Ton - Freeman Liquidators - [product_description]](http://freemanliquidators.com/cdn/shop/files/AWUF180816_a2dad6a5-4780-4f7d-b8b3-f59a2354a59b.jpg?v=1773857035&width=288)
Freight Request
Goodman, AWUF180816, Multi-Speed Air Handler, 18000 Btu/hr, Cooling Btu, 208 - 240 VAC, 1/5 hp, 60 Hz, 1 -Phase
Description
Description
- Equipped with a check flowrator
- Direct-drive, multi-speed motors allows air volume variation for heating/cooling
- Aluminum tubing coils
- Cabinet air leakage less than 2% at 1 in H2O when tested in accordance with ASHRAE standard 193
- Cabinet air leakage less than 1.4% at 1/2 in H2O when tested in accordance with ASHRAE standard 193
- Factory-installed pull-type disconnect
- Thermoplastic drain pan with bottom primary and secondary drain connections
- Built-in filter rack
- Small chassis front or bottom return
- 6 in W x 9 in Dia blower
- Unpainted
Goodman AWUF180816 Multi-Speed Air Handler delivers 18,000 Btu/hr cooling capacity at 208-240 VAC, 1-phase operation. Features direct-drive multi-speed motor for flexible air volume control during heating and cooling cycles. Includes aluminum tubing coils, thermoplastic drain pan with dual drain connections, and built-in filter rack. Factory-installed pull-type disconnect and check flowrator ensure reliable performance. Vertical wall-mount configuration measures 20-3/16" W x 36" H x 16-1/8" D. Achieves 13 SEER efficiency rating with R-410A refrigerant compatibility. Cabinet air leakage certified below 2% at 1 in H2O per ASHRAE 193 standards. 6" W x 9" Dia blower with small chassis front or bottom return option. Unpainted finish. 1/5 hp, 60 Hz motor rated 1.5 ton nominal capacity.
| Type | : | Multi-Speed |
| Voltage Rating | : | 208/240V |
| Frequency Rating | : | 60Hz |
| Horse Power | : | 1/5 HP |
| Nominal Capacity | : | 2 ton |
| Phase | : | 1-Phase |
| Amperage Rating | : | 34.6/39.6A |
| Suction Line Size | : | 5/8 inch |
| Liquid Line Size | : | 3/8 inch |
| Max. Fuse Size | : | 35/40A |
| Filter Size | : | 14 inch x 18 inch x 1 inch |
| Motor Amps | : | 1.3A |
| Refrigerant | : | R-410A or R-22 |
| CFM | : | 655 to 670 cfm |
| Mounting | : | Wall-Moun |
| Electrical Rating | : | 208/240V, 1 PH, 60 Hz |
