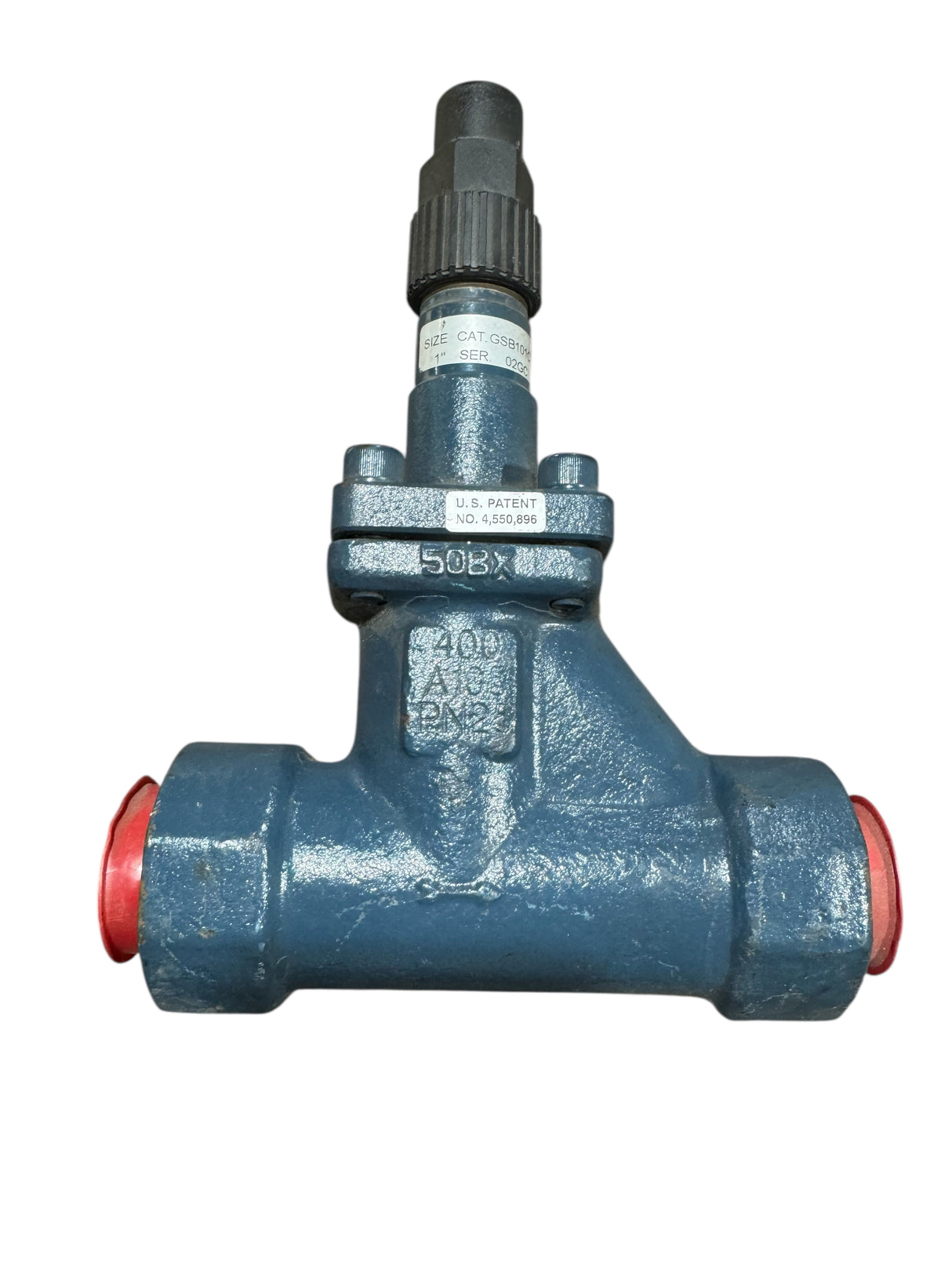

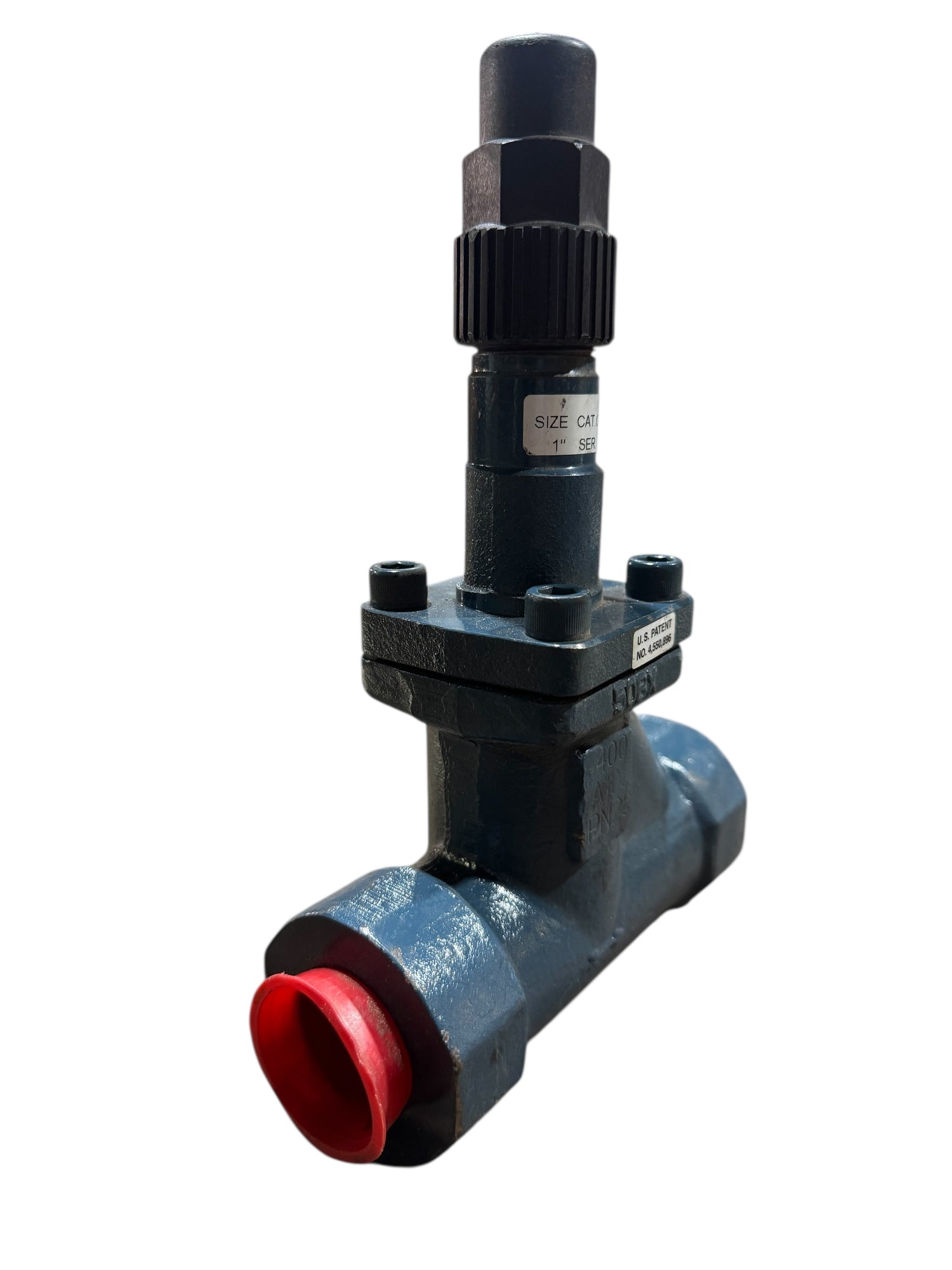

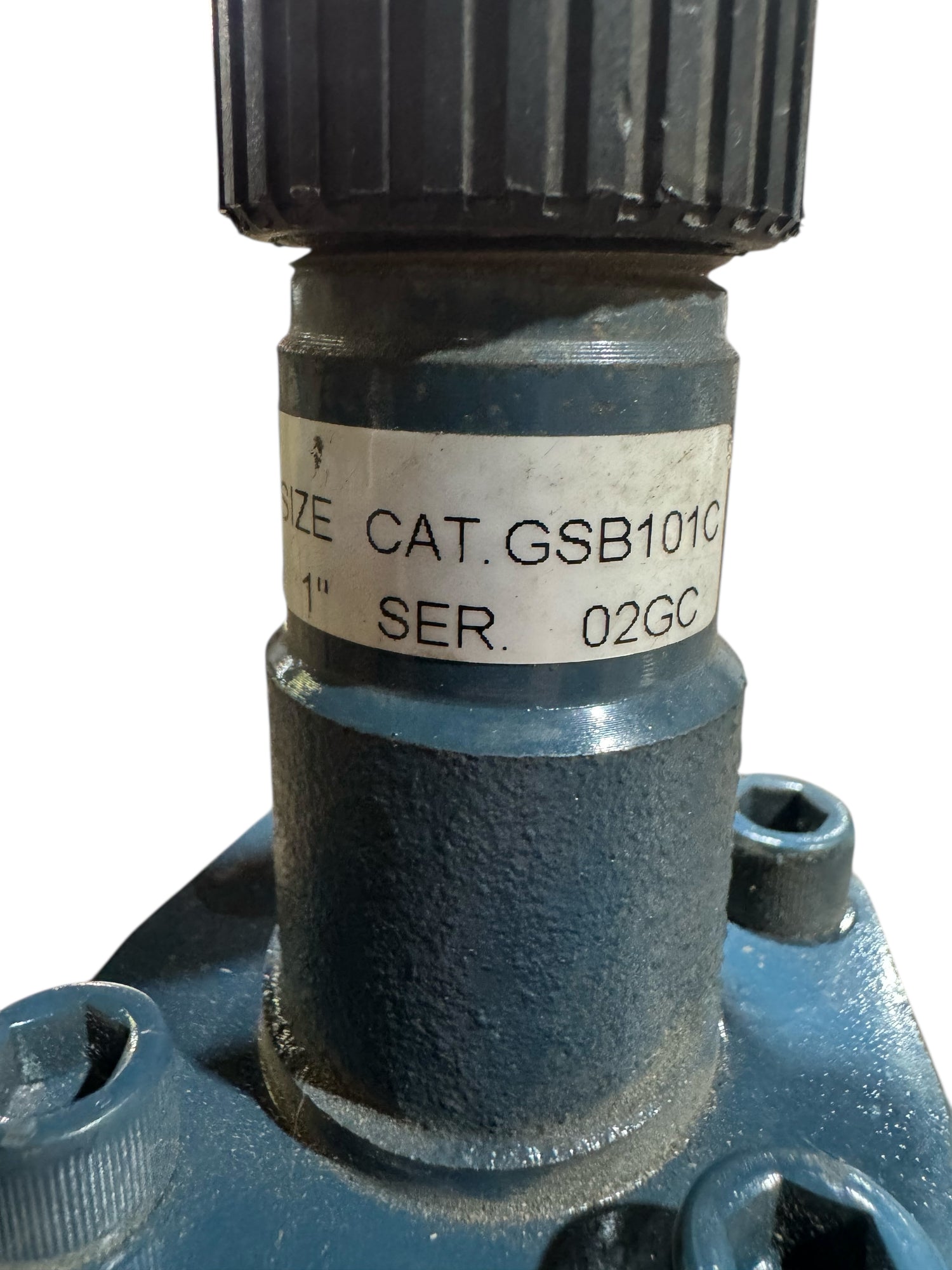

Hansen, GSB101C, 1 Shut-off Valve, Globe, Bolted Bonnet, T-Style, Socket Weld
Hansen, GSB101C, 1 Shut-off Valve, Globe, Bolted Bonnet, T-Style, Socket Weld is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
The Hansen GSB101C Socket Weld Globe Valve exhibits superior engineering that outperforms conventional alternatives in critical areas of seal integrity—particularly at seats, stems, bonnets, and pipe connections. Its steel body socket weld design eliminates the need for pipe threading or cumbersome iron-flanged configurations with their accompanying hardware requirements. Unlike butt weld alternatives, these T-style bolted bonnet valves facilitate expedited installation through simplified welding processes, superior pipe alignment capabilities, and maintenance of cleaner internal surfaces throughout both pipe and valve assemblies.
Weight | 9.000000 |
---|---|
Condition | New |
Brand | Hansen |
Port Size | 1" |
Ball Bearings | Stainless steel |
Body | Forged steel, ASTM A105 |
Bonnet | Ductile iron, ASTM A536 |
Bonnet Style | Bolted Bonnet |
Handwheel | Zinc plated alloy |
Disc Holder | Plated steel |
Seal Cap | Glass-filled polymer, Neoprene O-ring seal, safety vented |
Seat Disc | Retained PTFE Teflon |
Stem | Polished stainless steel |
Stem Packing | Graphite composite plus neoprene O-ring in series |
Valve Body Type | Globe |
Packing Nut | Zinc plated steel |
Safe Working Pressure | 400 psig (28 bar g) standard, 600 psig (41 bar g) upon request |
Operating Temperature | Standard, -60°F to 240°F (-51°C to 115°C), temperatures below -60°F (-51°C) to -76°F (-60°C) at coincident pressures (Bolted bonnet only) Optional, -20°F to 300°F (-29°C to 149°C) |
Connection Style | Socket Weld |
Width | 9 |
Height | 5 |
Length | 10 |
