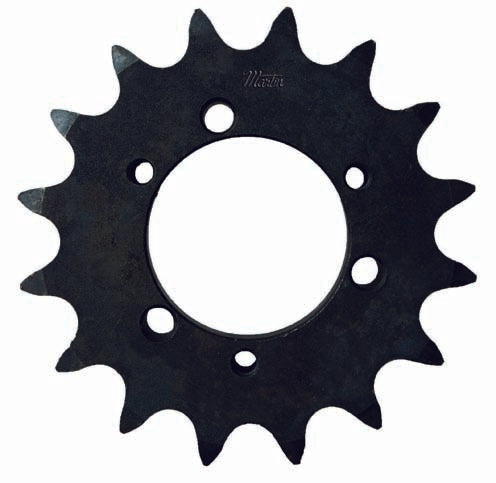

Martin 60SDS18H Saber Tooth Bushing Bore Roller Chain Sprocket - QD, 60 / 3/4 in, 18 Teeth, SDS Bushing, Steel Material
PRODUCT DISCLOSURE:
All products were acquired by Freeman Liquidators from a sale of merchandise subject to a commercial insurance loss. Freeman Liquidators is a secondary seller of products, is not affiliated with or sponsored by the manufacturer of the products and is not a manufacturer authorized seller of the products. Sale of this product by Freeman Liquidators is not subject to the policies of the manufacturer. Any warranty offered by the manufacturer is not available to you as the purchaser. All products are NEVER USED but external packaging will have damage. Some items may be placed into other packaging to ensure safe shipping. All items are opened for inspection prior to shipment to ensure the best quality of products. Freeman Liquidators guarantees your satisfaction. If you are not completely satisfied with a purchased product, within 30 days from the date of purchase, return the product in its packaging and Freeman Liquidators will fully refund your money.
MI ITEM NUMBER 00175401
MFR DESCRIPTION 60SDS18H
OVERVIEW
- Martin saber tooth sprockets have hardened teeth, which provide longer chain and sprocket life.
- The hardened teeth on the smaller sprocket of a roller chain drive are recommended if the drive ratio is four to one or greater if the smaller sprocket has 24 teeth or less and is running at a speed of over 600 RPM.
- Tolerances meet or exceed ANSI standards
- Manufactured of high carbon steel
- Precise machining and processes ensure consistent finish and high quality
- Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
- Bores are concentric to pitch line, minimizing run out
- Interchangeable with other manufacturers’ QD bushings
- Stocked Heat Treat
SPECIFICATIONS
| Bushing Type | QD |
|---|---|
| Bore Type | Bushed |
| Chain / Sprocket Type | Standard Roller Chain |
| Bushing Size | SDS |
| Number of Teeth | 18 |
| Number of Strands Across | 1 |
| Material | Steel |
| Number of Hubs | 1 |
| Length Through Bore | 0.7500 in |
| Bushing Bore Range | 1/2 to 2 in |
| Outside Diameter | 4.7030 in |
| Pitch Type | Single |
| Hardened Teeth | Hardened Teeth |
| Tooth Width | 0.4590 in |
| Tooth Thickness | 0.4590 in |
| Pitch Diameter | 4.5567 in |
| Caliper Diameter | 3.8501 in |
| Hub Diameter | 3-3/16 in |
| Hub Outside Diameter | 3.2500 in |
| Hub Projection | 0.2969 in |
| Number Of Mounting Screws And Location | 3 at 120 ° |
| Mounting Screw Size | 1/4-20 UNC |
| Chain Roller Diameter | 0.4690 in |
| Chain Roller Width | 0.5000 in |
| Surface Treatment | Protective Coating |
| Storage Dimension Height | 13/16 in |
| Storage Dimension Length | 5.0625 in |
| Storage Dimension Width | 5.0625 in |
| Manufacturer UPC Number | 697950041988 |
| Manufacturer Catalog | Click here |
| Weight | 1.56 lbs |
| Chain Number & Pitch | 60 / 3/4 in, 60 / 3/4 in |
