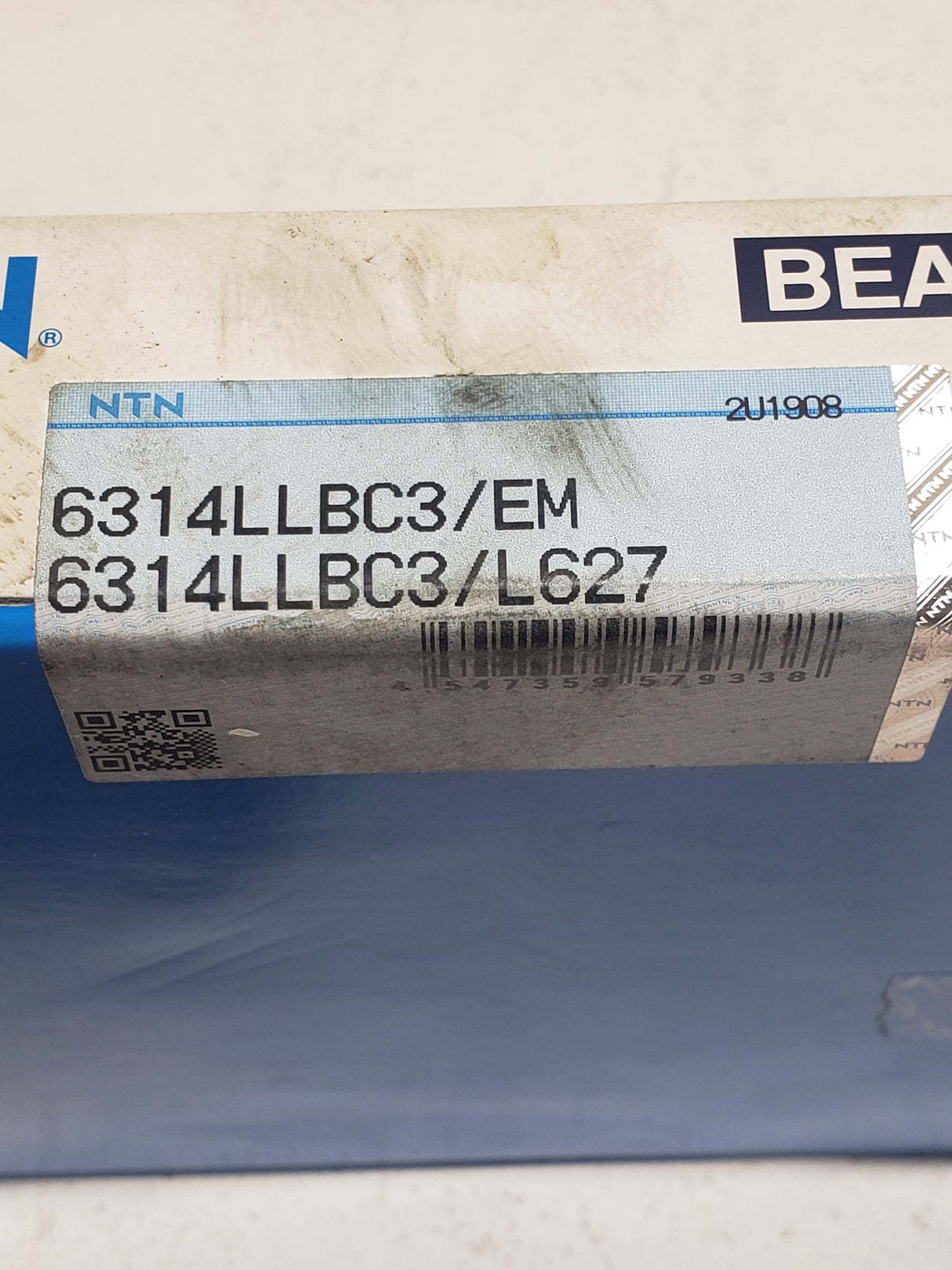

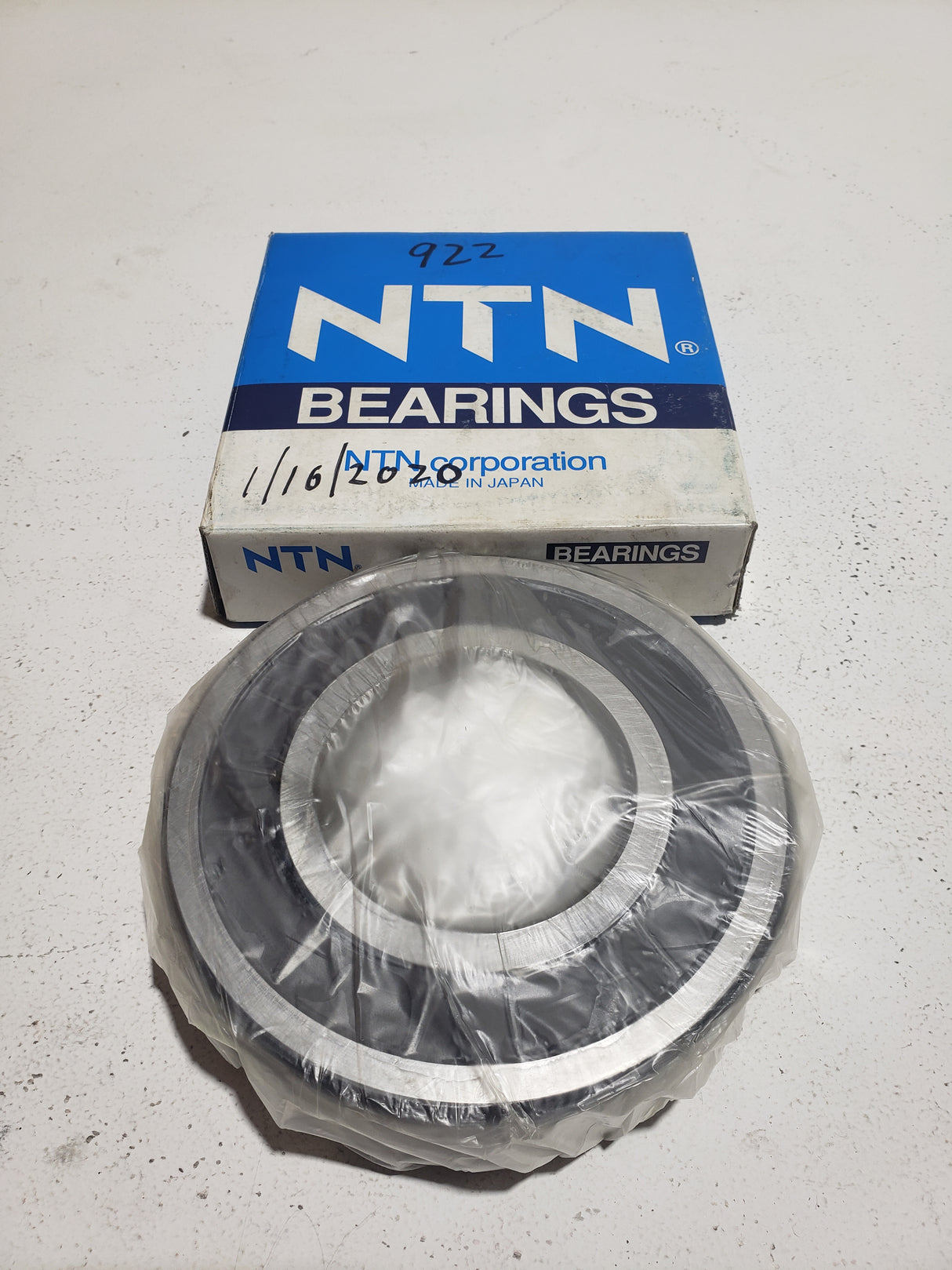

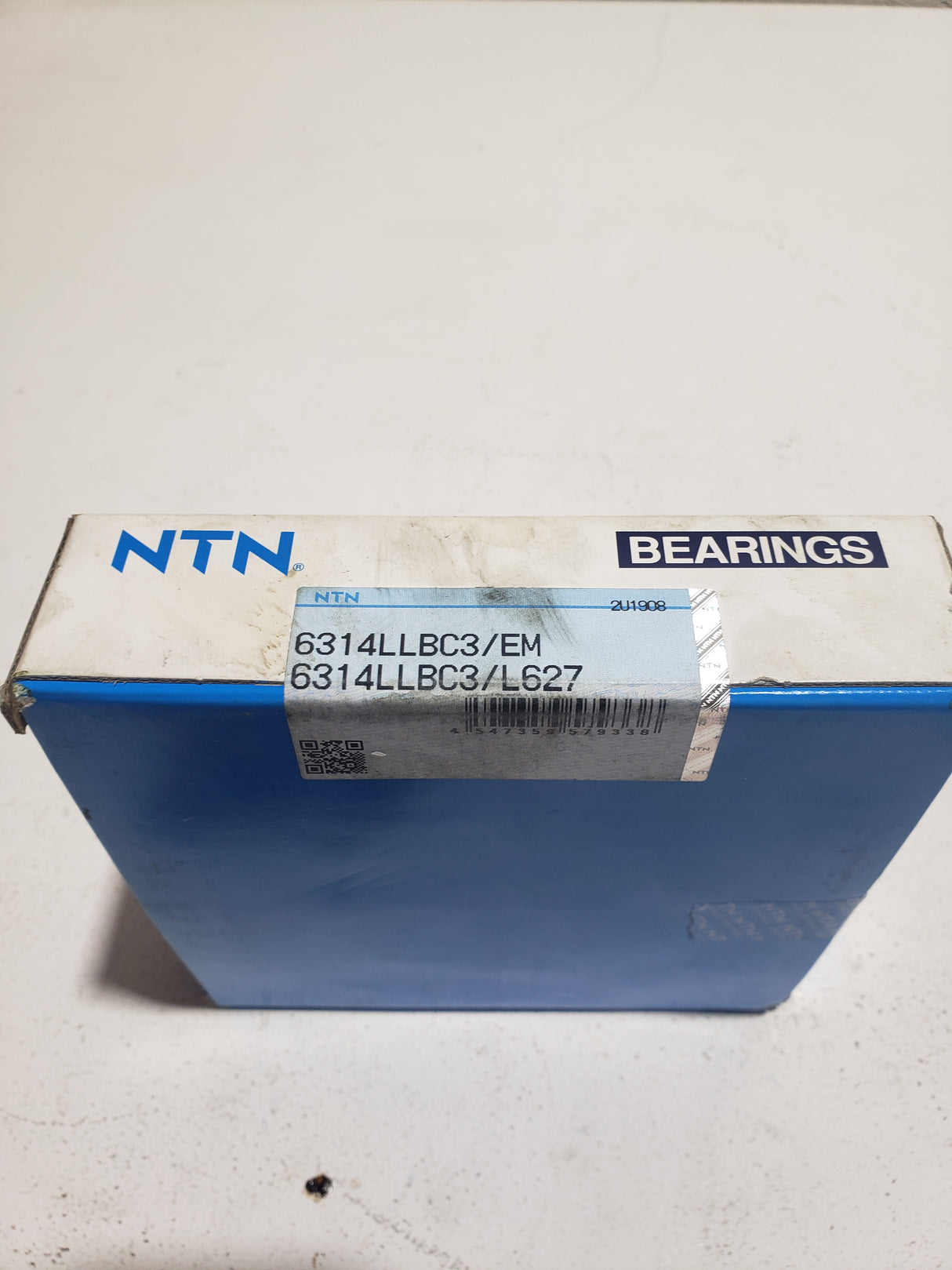

NTN 6314LLBC3/EM MEDIUM SIZE BB(STD) D>80<203.2
Technical Specifications
Type
|
Deep Groove Ball Bearing |
Bore Type
|
Round |
Material
|
High Carbon Chrome Steel |
Cage Type
|
Pressed |
Cage Material
|
Steel |
Ball Material
|
Steel |
Limiting Speed - Grease
|
4600 RPM |
Seal Type
|
Non-Contact |
Seal Material
|
Nitrile Rubber |
Precision
|
ISO Class 0 |
Configuration
|
One |
Factor
|
13.2 |
Radial Internal Clearance
|
C3 |
Static Load Rating
|
15300 lbf68000 N68.00 kN |
Dynamic Load Rating
|
23400 lbf104000 N104.00 kN |
Enclosure
|
Double Sealed |
Weight
|
5.710 lb2.590 kg |
Operating Temperature Range
|
-40 to 250 F-40 to 120 C |
Dimensional Specifications
![]() Single Row Radial Ball Bearing - Double Sealed (Non-Contact Rubber Seal) - Dimensions
|
d
|
2.7559 in70.000 mm |
D
|
5.9055 in150.000 mm |
B
|
1.3780 in35.000 mm |
r
|
0.0827 in2.100 mm |
r1
|
0.0197 in0.500 mm |
da min
|
3.1890 in81.000 mm |
da max
|
3.6417 in92.500 mm |
Da max
|
5.4724 in139.000 mm |
ras max
|
0.0787 in2.000 mm |
