DODGE 124174 F2B-SC-100-NL 2-BOLT FLANGE STANDARD DUTY - NEW IN BOX
PRODUCT DISCLOSURE:
All products were acquired by Freeman Liquidators from a sale of merchandise subject to a commercial insurance loss. Freeman Liquidators is a secondary seller of products, is not affiliated with or sponsored by the manufacturer of the products and is not a manufacturer authorized seller of the products. Sale of this product by Freeman Liquidators is not subject to the policies of the manufacturer. Any warranty offered by the manufacturer is not available to you as the purchaser. All products are NEVER USED but external packaging will have damage. Some items may be placed into other packaging to ensure safe shipping. All items are opened for inspection prior to shipment to ensure the best quality of products. Freeman Liquidators guarantees your satisfaction. If you are not completely satisfied with a purchased product, within 30 days from the date of purchase, return the product in its packaging and Freeman Liquidators will fully refund your money.
External Packaging has been subjected to smoke damages. Parts are inspected and cleaned if needed, prior to shipment. All parts are NEW/NEVER USED and fully functional.
- Line voltage-nominal: 120/240 VAC; operating voltage range: 12-280 VAC
- Current rating 20 Degree C ambient, 45 Degree C ambient: 3 amps 2 amps; one cycle surge: 80 amps
- Logic voltage-nominal: 5 VDC; logic voltage range (vcc): 4-8 VDC
- Logic pickup voltage: 4.0 VDC; logic dropout voltage: 2.3 VDC
- Logic input current at nominal logic voltage (lout in schematic diagram): 12 mA; control resistance (Rc in schematic diagram): 220 ohms
Product Specifications
Application
Data Acquisition ; Energy Management ; Industrial Automation ; Monitoring
Connection to Host
Backplane
Depth
0.197" (5mm)
Dimensions
53.34 x 26.9 x 78.23 mm
For Use With
SNAP PAC System
Input Current
12 mA
Insulation Resistance
100 Megohms (Min.) @ 500 VDC
Isolation Voltage
4000 VAC
Leakage Current
5 mA (RMS) (Off-State) @ 60 Hz
Length
2.1" (53.34mm)
Maximum Operating Temperature
70 °C
Minimum Operating Temperature
-30 °C
Module Type
Digital
Mounting Type
5 Pin I/O Mounting Board
Number of Channels
4
Number of IO Ports
4 Ports
Operating Temperature
-30 to +70 °C
Operating Voltage
12 to 280 VAC
Output
12 to 280 VAC
Output Type
Analog
Primary Type
Data Acquisition
Product Header

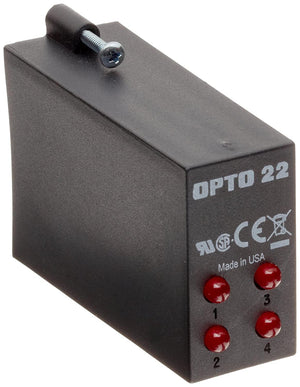

Quad DC Output Module
Range Output
12 to 280 VAC
Special Features
Optical Isolation
Standards
UL Listed
Supply Voltage
5 VDC
Temperature Operating Range
-30 to +70 °C
Turn Off Time
1/2 Cycle (Max.) @ 0 V
Turn On Time
12 cycles
Type
Output
Width
1.059" (26.9mm)
