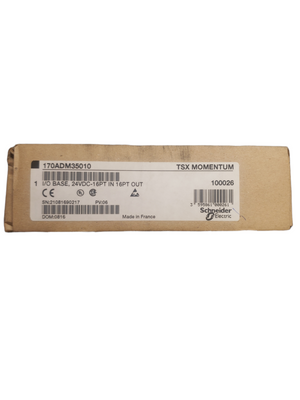

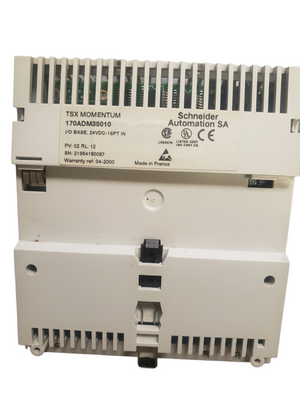

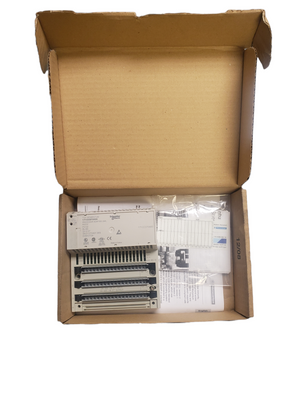

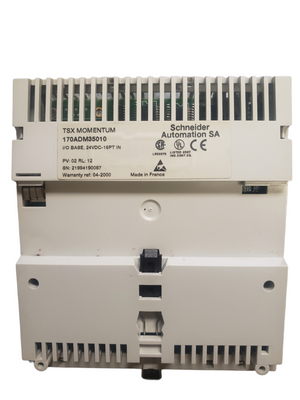

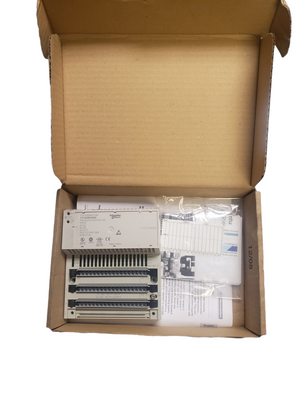

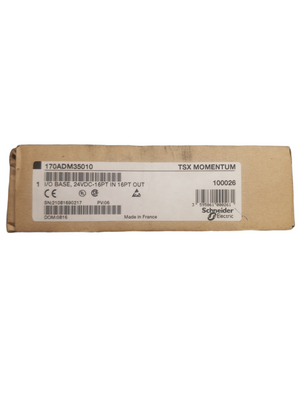

Schneider Electric 170ADM35010 discrete I/O module Modicon Momentum - 16 I/O solid state - NEW IN BOX
****This item has been pre-programmed but has never been used.
All products were acquired by Freeman Liquidators from a sale of merchandise subject to a commercial insurance loss. Freeman Liquidators is a secondary seller of products, is not affiliated with or sponsored by the manufacturer of the products and is not a manufacturer authorized seller of the products. Sale of this product by Freeman Liquidators is not subject to the policies of the manufacturer. Any warranty offered by the manufacturer is not available to you as the purchaser. All products are NEVER USED but external packaging will have damage. Some items may be placed into other packaging to ensure safe shipping. All items are opened for inspection prior to shipment to ensure the best quality of products. Freeman Liquidators guarantees your satisfaction. If you are not completely satisfied with a purchased product, within 30 days from the date of purchase, return the product in its packaging and Freeman Liquidators will fully refund your money.
DescriptionThis product is part of the Modicon Momentum range, an offer of controller and IP20 monoblock I/Os for distributed control architecture. This discrete I/O module has 1 group of 16 inputs and 2 groups of 8 solid state outputs with sink (positive) discrete logic. It is an I/O module with a rated supply voltage of 24V DC, an input/output voltage of 24V DC, a current consumption of 250mA at 24V DC and a power dissipation of 8W. Its dimensions are 125mm (width) x 47.5mm (depth) x 141.5mm (height) and weighs 0.2kg. The main application of this module is infrastructures and energy, material handling, simple machine control. This product is certified by CE, CSA and UL. Momentum is a flexible, modular family of fundamental components that easily snap together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snap together in various combinations to form versatile control systems or sub-systems.
Main range of product Modicon Momentum automation platform product or component type Discrete solid state I/O base DC group of channels 2 groups of 8 outputs
1 group of 16 inputs
discrete input number 16 conforming to IEC 1131-2 Type 1 discrete input logic Positive discrete input voltage 24 V DC discrete output number 16 discrete output type Solid state switch discrete output voltage <= 30 V DC
24 V DC
discrete output logic Positive protective treatment TC Complementary [Us] rated supply voltage 24 V DC input voltage limits - 3...30 V voltage state 0 guaranteed -3...5 V voltage state 1 guaranteed 11...30 V current state 0 guaranteed <= 1.2 mA current state 1 guaranteed >= 2.5 mA input resistance 4 kOhm discrete output current 4 A per group
8 A per module
0.5 A per point
maximum leakage current 1 mA at 24 V (output circuit) peak output current 5 A maximum voltage drop <0.5 V 0.5 A at state 1 output circuit fault type Overload on output response time < 0.1 ms from state 0 to state 1 on output
< 0.1 ms from state 1 to state 0 on output
2.2 ms from state 0 to state 1 on input
3.3 ms from state 1 to state 0 on input
isolation between channels and bus 500 V AC power dissipation 6 W
<= 8 W
marking CE terminals description PLC n°1 (L+)PW_POS
terminals description PLC n°2 (10)OUT_DIS#10
local signalling 16 LEDs for channel status current consumption 250 mA at 24 V DC depth 47.5 mm height 141.5 mm width 125 mm net weight 0.2 kg Environment product certifications UL
resistance to electrostatic discharge 4 kV contact conforming to IEC 801-2
8 kV on air conforming to IEC 801-2
resistance to electromagnetic fields 10 V/m 80...1000 MHz conforming to IEC 801-3 ambient air temperature for operation 0…60 °C ambient air temperature for storage -40…85 °C relative humidity 95 % without condensation operating altitude <= 5000 m Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Weight 392.0 g Package 1 Height 5.8 cm Package 1 width 18.0 cm Package 1 Length 25.8 cm Unit Type of Package 2 S03 Number of Units in Package 2 10 Package 2 Weight 4.407 kg Package 2 Height 30.0 cm Package 2 width 30.0 cm Package 2 Length 40.0 cm
