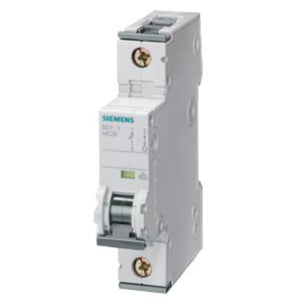

SIEMENS 5SY4125-5 Miniature Circuit Breaker - NEW IN BOX

• Siemens' UL 1077 5SY4125-5 Supplementary Protectors are designed to provide additional protection along with a branch circuit protection device. Since these Supplementary protectors are made to trip faster than a standard UL 489 Circuit Breaker they are able to provide additional protection for more sensitive devices inside the panel. Supplementary protectors can be used in a number of industrial applications such as to provide selectivity for multiple motor control circuits on the secondary side of a control transformer or power supply by allowing the user to quickly find the problem circuit should a fault occur without having to shut down all of the other control circuits. Supplementary protectors may also be used as a local disconnecting means inside the panel when a branch circuit protection device is already present. The trip curve A characteristic of the 5SY4125-5 is designed to protect extremely sensitive circuits, for example those involving semiconductors. The magnetic trip point of these breakers is 2 to 3 times the In rating. The thermal trip point is 1.13 to 1.45 that of the protector rating.

  Technical Specifications 5SY4125-5 Supplementary protectors are equipped with a delayed overload/ time-dependent thermal release (thermal bimetal) for low overcurrents and with an instantaneous electromagnetic release for high overload and short-circuit currents. The special contact materials used virtually guarantee a long service life and offer a high degree of protection against contact welding.




  Product Details

  Primary brand	Siemens
  Main function	Miniature Circuit Breaker (MCB)
  Product series / family name	SENTRON Series
  Sub-range name	5SY4
  Type	Option = Standard (No options)
  Network frequency	50/60 Hz
  Functions	Miniature Circuit Breaker (MCB)
  Poles	1-pole (1P)
  Rated current	20A < In ≤ 25 A
  Rated current	25A
  Rated voltage (AC)	230Vac / 400Vac
  Rated impulse voltage (Uimp)	4 kV
  Connection type	screw-clamp connections
  Poles	1P
  Tripping curve	A
  Ultimate short circuit current breaking capacity (Icu)	10kA ≤ Icu < 20 kA
  Ultimate short circuit current breaking capacity (Icu)	20kA (230Vac / 400Vac)
  Short circuit current breaking capacity (Icn)	10 kA
  Size in modules (1 module = 18mm)	1 Module(s)
  Net Width (mm)	18 mm
  Mounting mode	DIN rail
  Mounting mode	DIN-rail
  Ambient air temperature for operation	-40...+70 °C
  Ambient air temperature for storage	-40...+75 °C
  Customs Tariff Number	85362010
  ETIM code	27141901 (eCl@ss 6) 27141901 (eCl@ss 7.1) 27141901 (eCl@ss 8) 27141901 (eCl@ss 9) 27141901 (eCl@ss 9.1) EC000042 (ETIM 4.0) EC000042 (ETIM 5.0) EC000042 (ETIM 6.0) EC000042 (ETIM 7.0) 4897 (IDEA 4)
  Order code / Manufacturer SKU	5SY41255
  EAN code	4001869201085
  UNSPSC code	39121626 (UNSPSC 14) 39121603 (UNSPSC 15)
  UPC code	754554875217
  Compliant with standard(s)	IEC/EN 60898-1 IEC/EN 60947-2 UL1077 VDE IMQ CCC cRUus DNV-GL LR BV RINA ABS
  Benefits	Miniature circuit breakers from the SENTRON portfolio are simple to mount and install. The devices have a uniform design and; with the appropriate accessories; can be expanded by many additional functions. It has been design for industry; buildings or infrastructure - with our versatile portfolio; you will find a suitable miniature circuit breaker for any application. For circuits with motors or large lamps; semiconductors or strong pulse generating equipment such as transformers and solenoid valves - the 5SY and 5SP devices are optimized for industrial applications and are proven in use. The 5SY devices offer you top quality and functionality for installation in complex buildings and industry. With a rated breaking capacity of up to 25 kA; they are able to handle the most challenging requirements at a rated current of 0.3 to 80 A. Their special features includes = Dual-chamber terminals; Simple to detach without tools using sliding catches; Separate switching position indication; A wide range of accessories.
  Location of origin	Germany
  Degree of pollution	3 III
  Manufacturer product status	Commercialized
