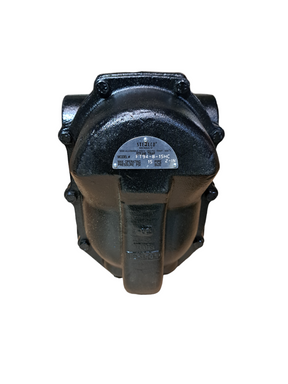

Sterlco, FT94-8-15HC, Double Inlet-Outlet, Float, Thermostatic Trap, 2″ NPT, 15 PSI

Regular price
$749.99
Sale price
$749.99
Regular price
$1,075.99
Sold out
Unit price
per
Shipping calculated at checkout if applicable

Available Quantity: 1

Sterlco, FT94-8-15HC, Double Inlet-Outlet, Float, Thermostatic Trap, 2″ NPT, 15 PSI

Description



The Sterlco FT94-8-15HC Double Inlet-Outlet Float, Thermostatic Trap with a 2" NPT and 15 PSI capacity is suitable for all types of steam heating systems and steam process equipment that produce large amounts of condensate. These traps operate efficiently for low, medium, and high pressure applications, effectively discharging air and condensate while preventing steam from entering the return piping. Available in two sizes (1-1/2" and 2"), these traps can handle capacities ranging from 425 to 24,000 lbs. of condensate per hour. With four possible connections, they offer greater flexibility in piping.


Specifications

  • Type: FT-94HC
  • Low / Meduim / High – HIGH CAPACITY
  • Size: 1-1/2, 2 (inches)
  • Model: 15 (psid).
  • Orifice: 1.032 (inch)
  • Max. Condensate: 24000 lbs. per hour
  • Pipe Size: 2.0 NPT
  • Long A: 11.0 (inch)
  • Height B: 12.0 (inch)
  • Width C: 8.5 (inch)
  • Weight: 48 lbs.

Materials

  • Body: Cast Iron
  • Cap: Cast Iron
  • Thermal Element: Stainless Steel, Brass
  • Bracket: Stainless Steel
  • Gasket: Cellulose, Non-asbestos Fiber
  • Seat: Stainless Steel
  • Valve: Stainless Steel
  • Clip: Stainless Steel
  • Washer, Screw: Stainless Steel
  • Lever & Float Assy: Stainless Steel
  • Plug: 1/4” NPT Steel


PRODUCT DISCLOSURE

This product was acquired by Freeman Liquidators from a sale of merchandise subject to a commercial insurance loss. Freeman Liquidators is a secondary seller of products, is not affiliated with or sponsored by the manufacturer of the products and is not a manufacturer authorized seller of the products. Sale of this product by Freeman Liquidators is not subject to the policies of the manufacturer. Any warranty offered by the manufacturer is not available to you as the purchaser.  All products are NEVER USED but external packaging will have damage.  Some items may be placed into other packaging to ensure safe shipping.  All items are opened for inspection prior to shipment to ensure the best quality of products.  Freeman Liquidators guarantees your satisfaction. If you are not completely satisfied with a purchased product, within 30 days from the date of purchase, return the product in its packaging and Freeman Liquidators will fully refund your money.

EXTERNAL PACKAGING HAS BEEN EXPOSED TO MINOR WATER DAMAGES
