Taper Shank High Speed Steel Twist Drill - Overall Length: 13", Size: 1-3/16", 01-120-076

$44.99 $83.63
Shipping calculated at checkout.

Delivery and Shipping

Shipping is automatically calculated at checkout.

In store pickup is sometimes the only option. These products are noted as such in our listings.

Some items have been set up so that they require a shipping quote.  Please fill out the appropriate form on the product's page and we will respond within 24-48 hours with a freight quote.

What we ship is by best carrier, some products prepaid and others not, due to our large variances in product lines, physical sizes and weight.

At checkout you will be prompted for shipping alternatives dependent on these parameters. Products which fit standardized packaging may also have calculated shipping costs by weight and volume on our website.

In all cases our staff audits for the best shipping cost and if necessary will contact our customer with recommendations.

Freight/Palleted items that are not accepted by the recipient or are sent back to us due to undeliverable address may be refunded, but the return shipping fees will be deducted from the overall amount of refund.

All returned items are subject to a 10% handling fee.

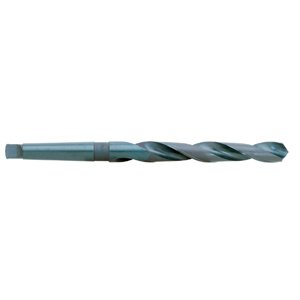

Taper Shank High Speed Steel Twist Drill - Overall Length: 13", Size: 1-3/16", 01-120-076

Description

Taper Shank High Speed Steel Twist Drill - Tool Material: High Speed Steel, Shank Style: Taper Shank, Flute Shape: Normal Spiral - helical Flutes, Drill Point Angle: 118 Degrees, Overall Length: 13", Size: 1-3/16", 01-120-076

PRODUCT DISCLOSURE:

All products were acquired by Freeman Liquidators from a sale of merchandise subject to a commercial insurance loss. Freeman Liquidators is a secondary seller of products, is not affiliated with or sponsored by the manufacturer of the products and is not a manufacturer authorized seller of the products. Sale of this product by Freeman Liquidators is not subject to the policies of the manufacturer. Any warranty offered by the manufacturer is not available to you as the purchaser. All products are NEVER USED but external packaging will have damage. Some items may be placed into other packaging to ensure safe shipping. All items are opened for inspection prior to shipment to ensure the best quality of products. Freeman Liquidators guarantees your satisfaction. If you are not completely satisfied with a purchased product, within 30 days from the date of purchase, return the product in its packaging and Freeman Liquidators will fully refund your money.


Description  Taper Shank High Speed Steel Twist Drills-Tool Material: High Speed Steel Shank Style: Taper Shank Flute Shape: Normal spiral - helical flutes Drill Point Angle: 118° Overall Length : 13" Size : 1-3/16"
Size 1-3/16"
Morse Taper 4
Flute Length 7-3/8"
Overall Length 13"
No. of Flutes 2
Decimal Diameter 1.1875
Point Sharpening Type Normal Point
Drill Grade General Purpose
Drill Point Angle 118°
Drill Type Taper Shank
Flute Shape Normal Spiral - Helical
Hardness 58 to 60 RC
Manufacturing Method Cylindrically ground
Series A25/A26
Shank Style Taper Shank
Tool Material High Speed Steel

--

Taper Shank High Speed Steel Twist Drill - Tool Material: High Speed Steel, Shank Style: Taper Shank, Flute Shape: Normal Spiral - helical Flutes, Drill Point Angle: 118 Degrees, Overall Length: 13", Size: 1-3/16", 01-120-076

118° Point • Right Hand

Applications



    • General purpose, normal duty drills designed for drilling holes in a variety or normal steels, cast iron, and other ferrous and non-ferrous metals and alloys.

    • Have a normal 118° drill point angle suitable for a variety of drilling applications and conditions.

    • Taper shanks to be used in a taper socket which are sized by the standard Morse taper sizes.

    • Used with either portable or stationary machines having a taper socket spindle.

    • To achieve optimal performance and extended tool life, suitable lubricating/cutting oils or coolant fluids are recommended for most drilling operations.


Features



    • Right hand (clockwise rotation) cutting direction.

    • Standard two flute design.

    • Normal spiral - helical flutes.

    • Standard 118° point angle.

    • Standard morse taper shanks correspond to drill diameter.

    • Flutes are proportional to length.


Technical Data



    • Manufactured from high speed steel.

    • Normal duty, general purpose drills.

    • Black finish.
