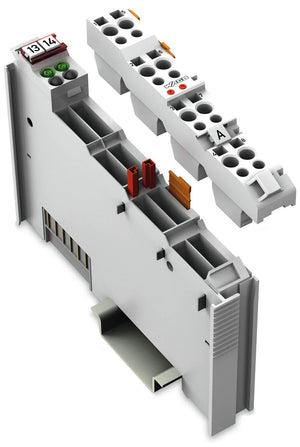

WAGO, 753-540 4-channel digital output; 230 VAC; 0.25 A; Solid-state - NEW IN BOX
WAGO, 753-540 4-channel digital output; 230 VAC; 0.25 A; Solid-state - NEW IN BOX is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Description
Description
WAGO, 753-540 4-channel digital output; 230 VAC; 0.25 A; Solid-state - NEW IN BOX
PRODUCT DISCLOSURE:
All products were acquired by Freeman Liquidators from a sale of merchandise subject to a commercial insurance loss. Freeman Liquidators is a secondary seller of products, is not affiliated with or sponsored by the manufacturer of the products and is not a manufacturer authorized seller of the products. Sale of this product by Freeman Liquidators is not subject to the policies of the manufacturer. Any warranty offered by the manufacturer is not available to you as the purchaser. All products are NEVER USED but external packaging will have damage. Some items may be placed into other packaging to ensure safe shipping. All items are opened for inspection prior to shipment to ensure the best quality of products. Freeman Liquidators guarantees your satisfaction. If you are not completely satisfied with a purchased product, within 30 days from the date of purchase, return the product in its packaging and Freeman Liquidators will fully refund your money.
This digital output module transmits control signals from the automation device to the connected actuators.
The module has four output channels and eight actuators may be connected to it.
The signal state of the outputs is shown by an LED.
Field and system levels are electrically isolated.
Notice:
An additional supply module must be added for 120 (230) VAC supply!
| Note |
Pluggable connectors and coding fingers (753 Series) are not included. |
| Number of digital outputs | 4 |
| Number of Channels | 4 |
| Signal type | Voltage |
| Signal type (voltage) | 5 … 250 VAC |
| Aktoranschluss | 4 x (2-wire) |
| Output characteristic | high-side switching |
| Output current per channel | 0.25A |
| Output current | short-circuit-protected |
| Protection against incorrect wiring | Overvoltage protection (275 V) via varistor |
| Load type | resistive, inductive |
| Short-circuit current | max. 10 A (16 ms) |
| ON voltage difference L-DO (max.) | 1.2V |
| Pull-in time (max.) | 10ms |
| Drop-out time (max.) | 10ms |
| Output data width (internal) max. | 4bits |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 18mA |
| Supply voltage (field) | 230 VAC; via power jumper contacts (power supply via blade contact; transmission via spring contact) |
| Isolation | 1500 V (system/field) |
| Indicators | LED (A-D) green: Status DO 1 … DO 4 |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |
| Current carrying capacity (power jumper contacts) | 10A |
| Connection technology: inputs / outputs | 8 x CAGE CLAMP® |
| Connection type 1 | Inputs/Outputs |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Abisolierlänge | 9 … 10 mm / 0.35 … 0.39 inches |
| Width | 12 mm / 0.472 inches |
| Height | 100 mm / 3.937 inches |
| Depth | 69.8 mm / 2.748 inches |
| Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches |
| Mounting type | DIN-35 rail |
| Pluggable connector | Pluggable |
| Color | light gray |
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 0.868MJ |
| Weight | 41.4g |
| Conformity marking | CE |
| Ambient temperature (operation) | 0 … +55 °C |
| Surrounding air temperature (storage) | -25 … +85 °C |
| Protection type | IP20 |
| Pollution degree (5) | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | horizontal (standing/lying); vertical |
| Relative humidity (without condensation) | 95% |
| Vibration resistance | per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2 |
| EMC emission of interference | per EN 61000-6-4 |
| Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible pollutant concentration H2S at a relative humidity < 75% | 10ppm |
| Permissible pollutant concentration SO 2 at a relative humidity < 75% | 25ppm |
